Hard Disk Drive Option Type P18 (M543-01)
SM 2-45 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
1BInstallation

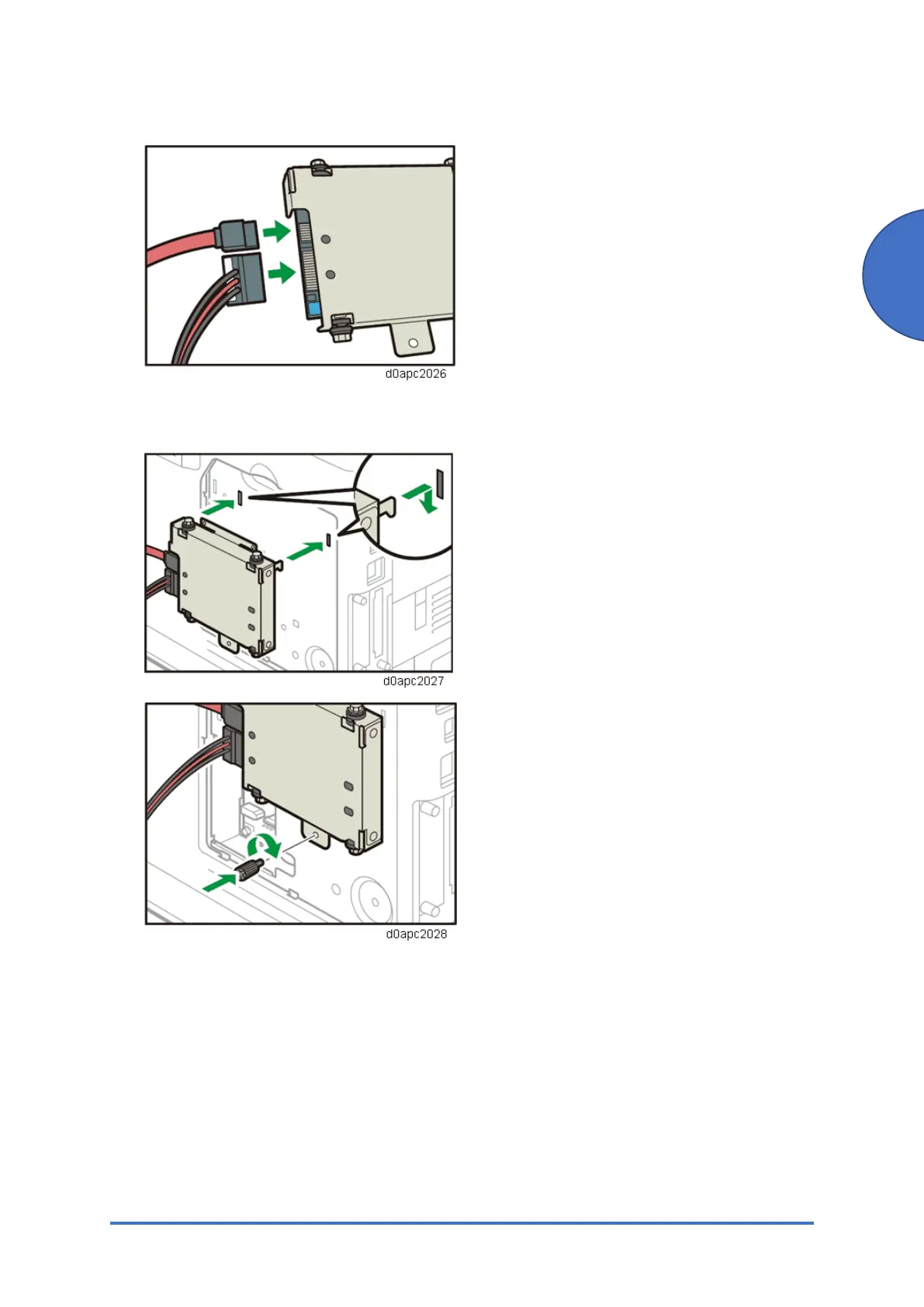

4. Connect the flat cable and power cord to the hard disk.
5. Align the upper protrusions on the hard disk into the notches on the machine, and then
fasten the hard disk to the machine with the screw.
