Ricoh SAVIN D0AP - Page 934

FCU Board
SM 13 D0C5/D0C6/D0C4/D0AP FAX UNIT
FAX UNIT
(D0C5/D0C6
/D0C4/D0AP)

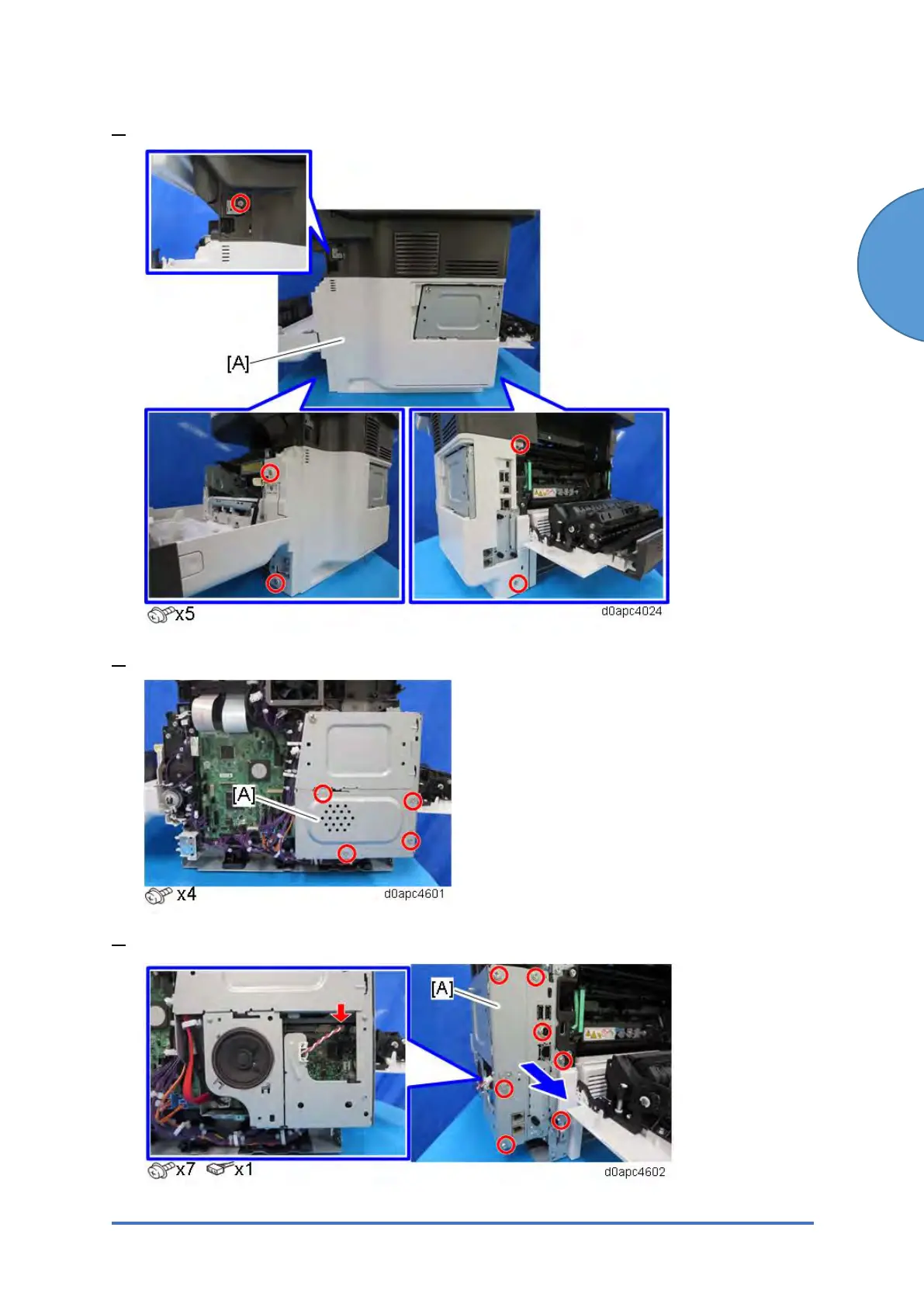

5. Remove the right cover [A].
6. Remove the controller box lower cover [A].
7. Disconnect the harness, and then pull out the interface cover [A] to remove it.
