FCU Board
D0C5/D0C6/D0C4/D0AP FAX UNIT 16 SM

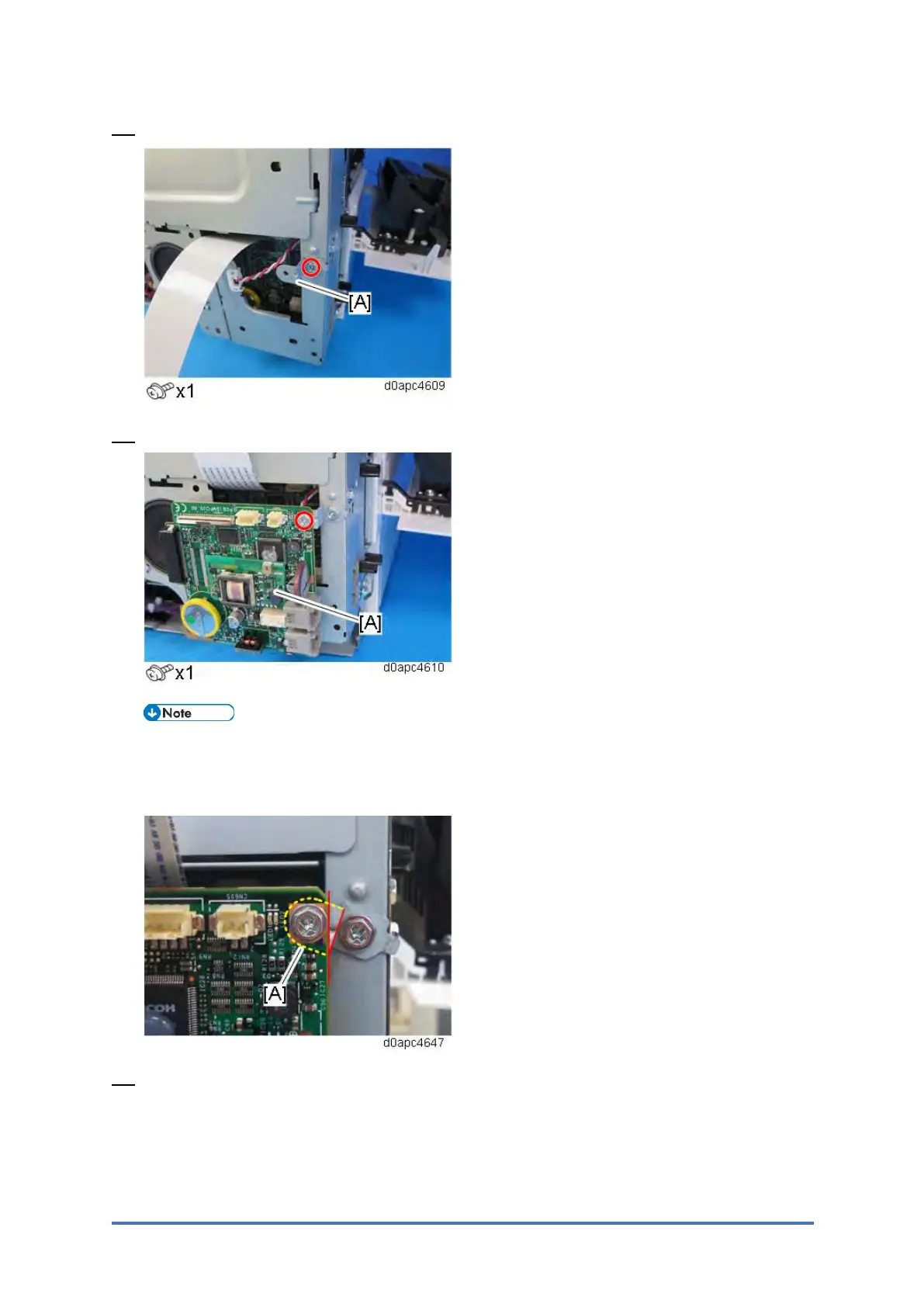

15. Attach the bracket [A] above to the controller box.
16. Attach the old FCU board [A] to the bracket temporarily.
Mount the PCB and bracket so both are horizontal.
If the contact surface of bracket [A] cuts into the base plate as shown below, this could
cause a short circuit between the element and the bracket and damage the PCB.
17. Connect the other end of the FFC [A] into the CN603 connector on the old FCU board.
Make sure that the blue tape of the flat cable faces outward.
