NFC Card Reader Type M27 (M502-10)
SM 2-59 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1

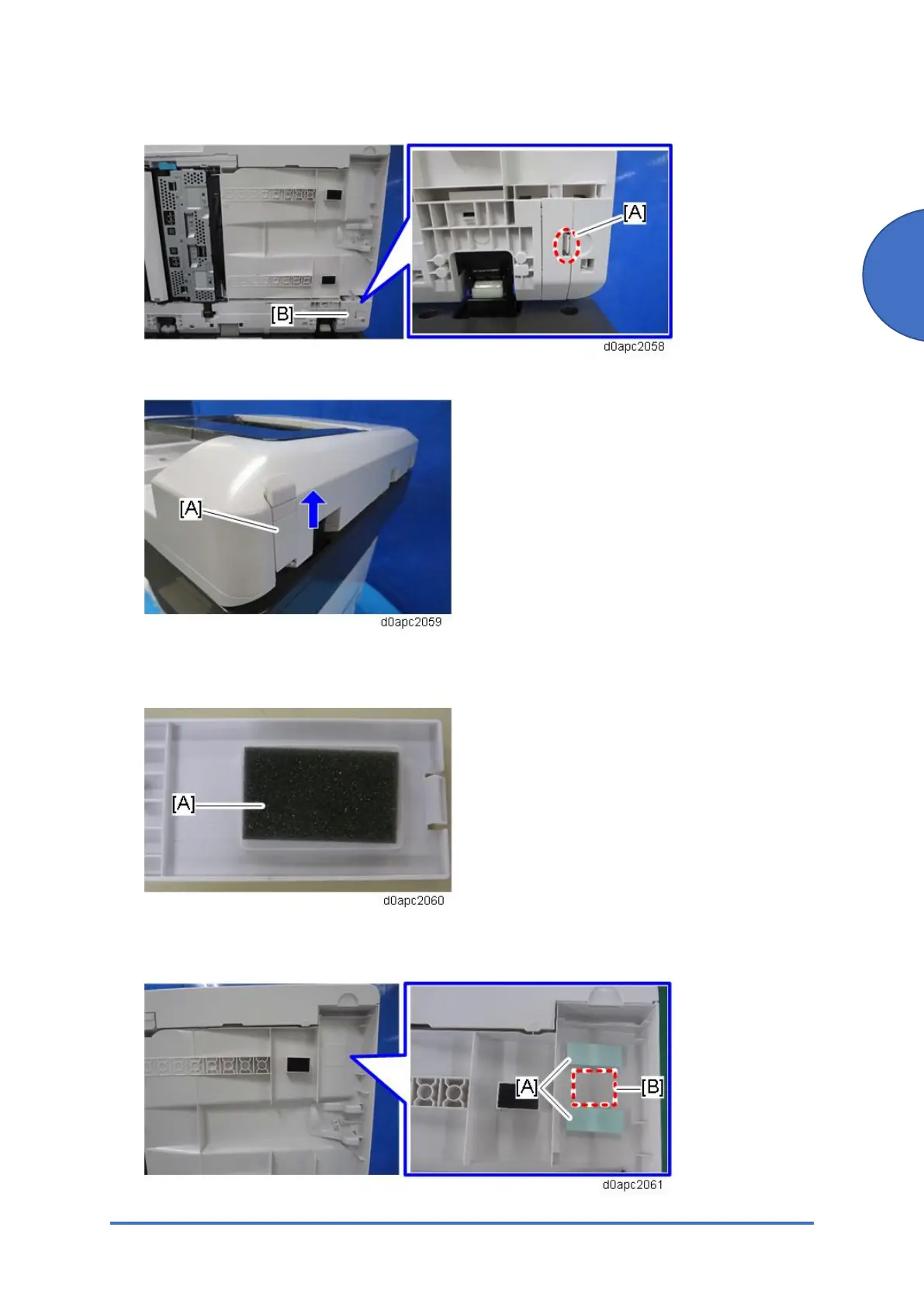

4. Release the tab [A] to remove the harness cover [B].
5. At the back of the SPDF, slide the small cover [A] up and remove it.
6. If the thickness of the NFC card reader is 15.4 mm or less, set cushion [A] into the hole on
the SPDF bottom cover. (The cushion is provided as an accessory with this option.)
7. Attach the double-sided tapes [A] on the bottom of the SPDF beside projection [B] as
shown.
