NFC Card Reader Type M27 (M502-10)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 2-60 SM

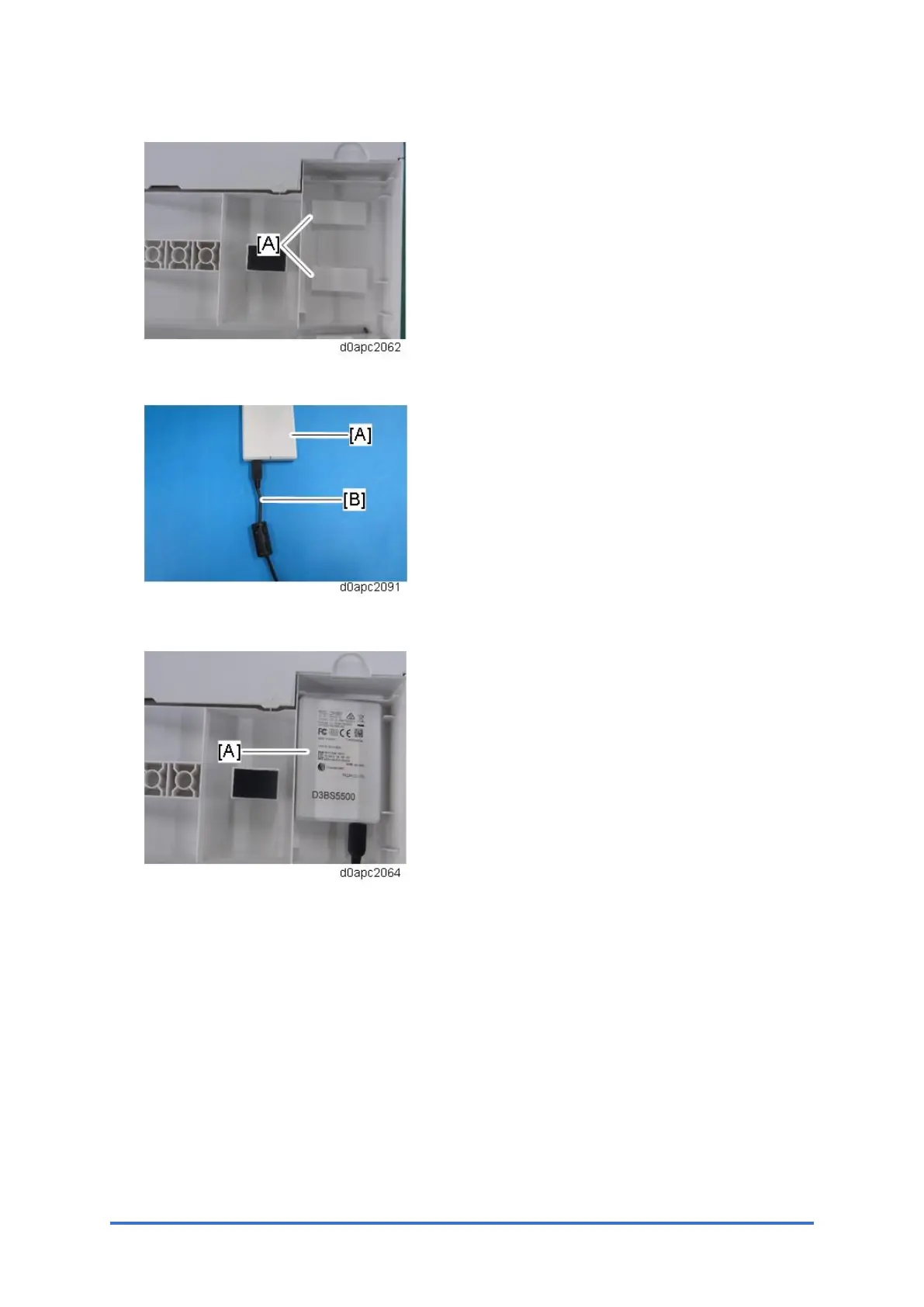

8. Peel the double-sided tapes [A].
9. Connect the USB cable [B] with the ferrite core to the NFC card reader [A].
10. Firmly fasten the NFC card reader [A] to the SPDF.
