Switching the motor on and o󹪜
The converter is set in the factory as follows:
• For a converter with PROFINET or AS-i communication, the motor is switched on and o󹪜 via
the 󹪝eldbus.
• After the ON command, the motor accelerates with a ramp-up time of 1s (referred to the
maximum speed) to its speed setpoint.
• After the OFF1 command, the motor brakes down to standstill with 1 s ramp-down time.
• The motor direction of rotation reverses with the reversing command.

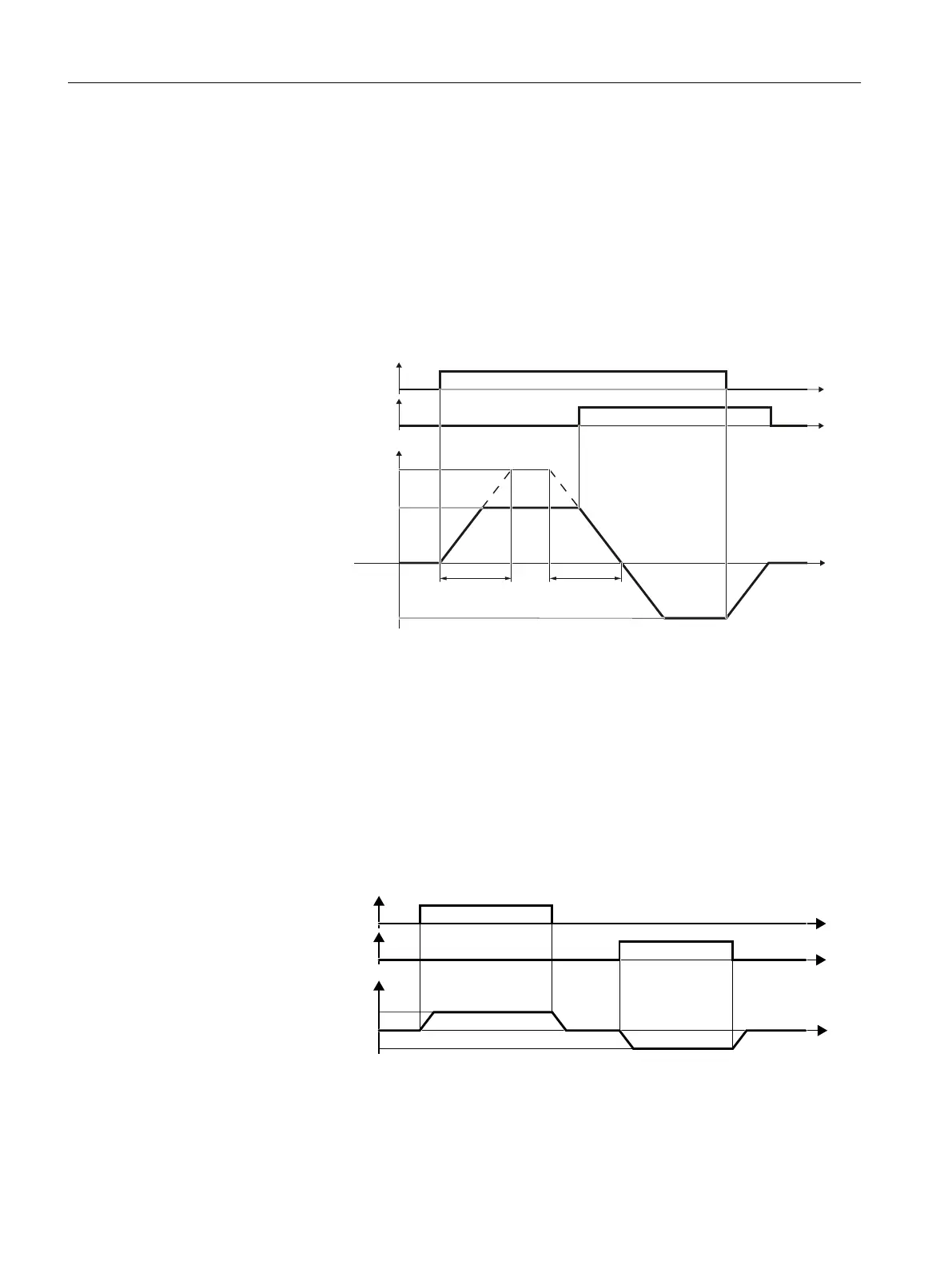

0RWRUVSHHG
&ORFNZLVHURWDWLRQ
&RXQWHUFORFNZLVHURWDWLRQ
5HYHUVLQJ
6HWSRLQW
0D[VSHHG
6HWSRLQWLQYHUWHG
212))
VV
W
W
W
The ramp-up and ramp-down times de󹪝ne the maximum motor acceleration when the speed
setpoint changes. The ramp-up and ramp-down times are derived from the time between
motor standstill and the maximum speed, or between the maximum speed and motor
standstill.
Traversing the motor in JOG mode
You can use a commissioning tool (e.g., Startdrive or SINAMICS G120 Smart Access) or the local/
remote control (LRC) panel to operate the motor in JOG mode.
When a control command is received, the motor rotates at ±150 rpm. The same ramp-up and
ramp-down times as described above apply.
0RWRUVSHHG
-2*
USP
USP
-2*
W
W
W
