Siemens SINAMICS G115D

Changing the assignment of the digital inputs
Parameter Description
p3330[0…n] =
722.x
BI: 2/3 wire control command 1 (ON/OFF1 clockwise rotation)
p3331[0…n] =
722.x
BI: 2/3 wire control command 2 (ON/OFF1 counter-clockwise rotation)
Example: p3331 = 722.0 ⇒ DI0: ON/OFF1 counter-clockwise rotation

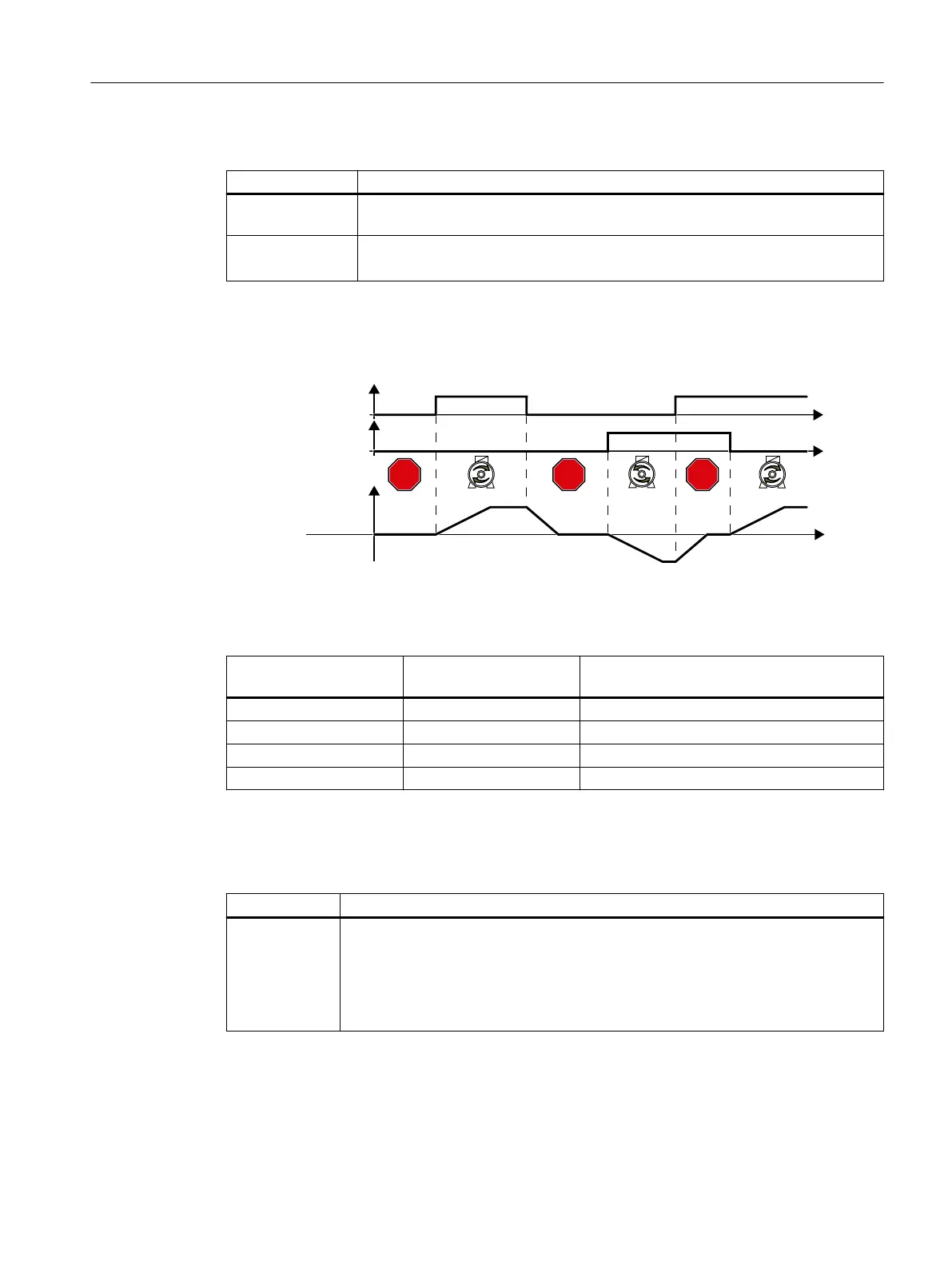

7.4.3 Two-wire control, method 3
W
W
W
672367236723
&ORFNZLVH
&RXQWHUFORFNZLVH
212))
&RXQWHUFORFNZLVH
212))
&ORFNZLVH
6SHHGVHWSRLQW
Commands "ON/OFF1 clockwise rotation" and "ON/OFF1 counter-clockwise rotation" switch
on the motor - and simultaneously select a direction of rotation. The converter accepts a new
command at any time, independent of the motor speed.
ON/OFF1 clockwise rota‐
tion
ON/OFF1 counter-clock‐
wise rotation
Function
0 0 OFF1: The motor stops.
1 0 ON: Clockwise motor rotation.
0 1 ON: Counter-clockwise motor rotation.
1 1 OFF1: The motor stops.
Parameters
Select two-wire control, method3
Parameter Description
p0015=62 Macro drive unit
You must carry out quick commissioning in order to set parameter p0015.
Assigning digital inputs DI to the commands:
DI0: ON/OFF1 clockwise rotation
DI1: ON/OFF1 counter-clockwise rotation
Advanced commissioning
7.4Controlling clockwise and counter-clockwise rotation via digital inputs
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 139
