7.18.3 Inhibit direction of rotation

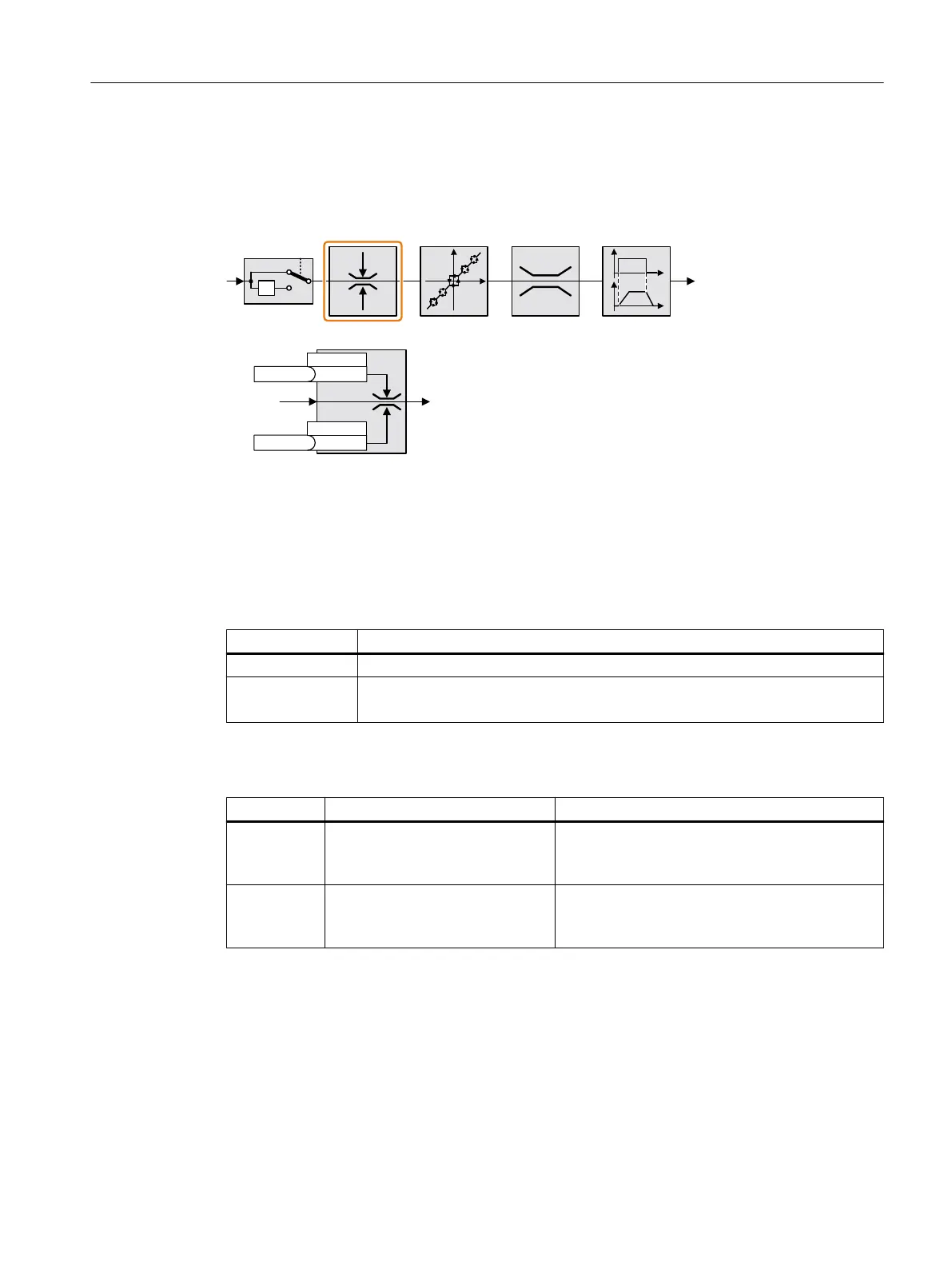

Function description

S

S



[
\
[
\
W
\\[[
In the factory setting of the converter, both motor directions of rotation are enabled.
Set the corresponding parameter to a value = 1 to permanently block directions of rotation.
Example
Table 7-7 Application examples showing how a setpoint is inverted
Parameter Description
p1110[0] = 1 Negative direction of rotation is permanently inhibited.
p1110[0] = 722.3 Digital input3 = 0: Negative direction of rotation is enabled.
Digital input3 = 1: Negative direction of rotation is inhibited.
Parameters
Parameter Description Setting
p1110[0…n] BI: Inhibit negative direction Sets the signal source to disable the negative direc‐
tion.
Factory setting: 0
p1111[0…n] BI: Inhibit positive direction Sets the signal source to disable the positive direc‐
tion.
Factory setting: 0
