7.9.2.1 Turntable, two positions and one speed (p3393 = 5)
Overview

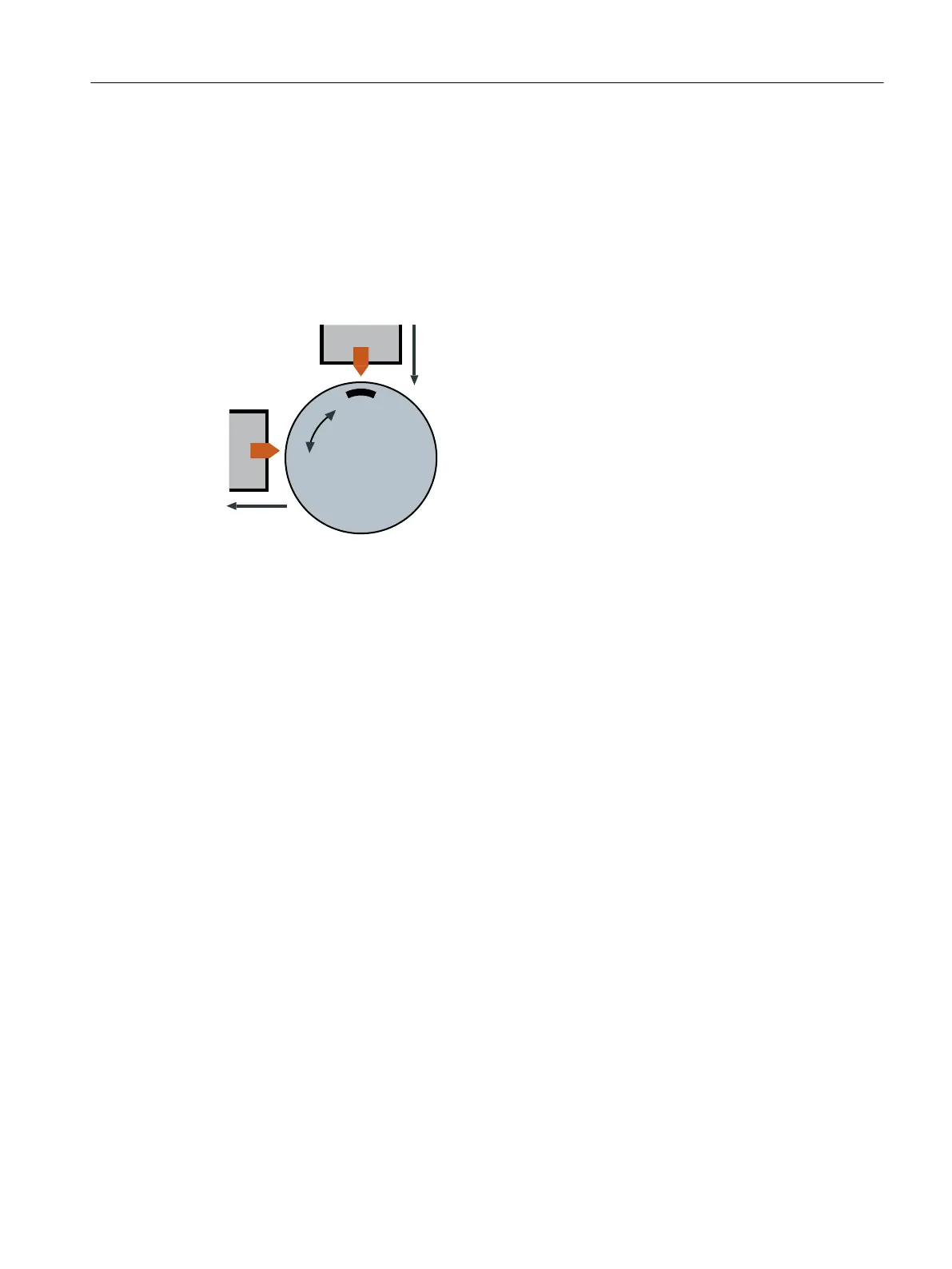

With p3393 (conveyor technology application) set to 5, the converter enables a turntable in a
conveyor system to rotate in either positive or negative direction with a xed speed and stop at
two dedicated positions. Two sensors are required to signal the limit positions for the motor to
stop.
Precondition
• You interconnect the signals of the sensors with the digital inputs of your choice.
• Depending on the specic application and mechanical setup, you must set end position
shutdown active (p3392) to 1, so as to limit the turntable movement between the dedicated
positions.
