7.9.3.2 Corner turntable lift, two positions and two speeds (p3393 = 10)
Overview

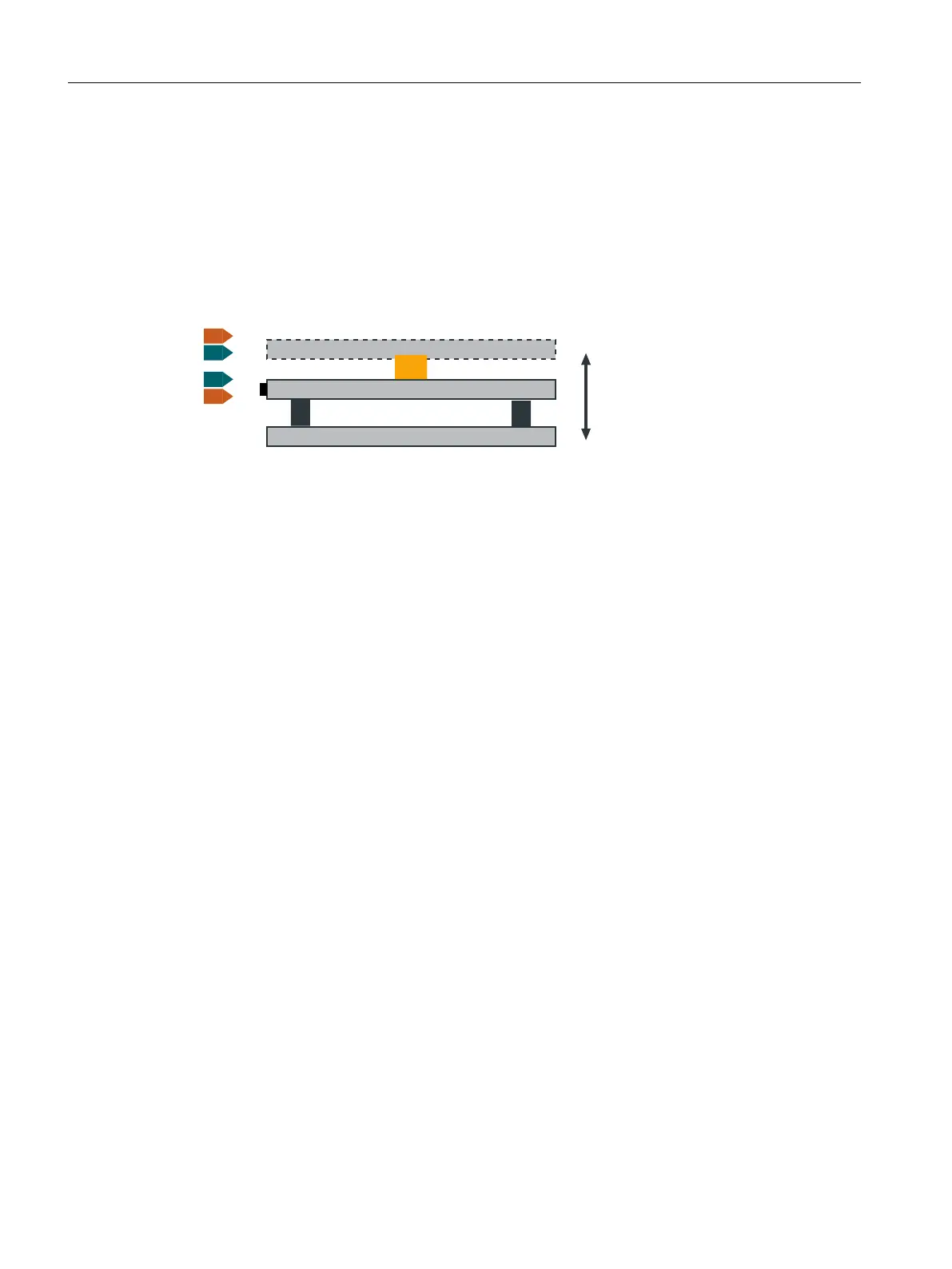

With p3393 (conveyor technology application) set to 10, the converter enables a corner
turntable lift in a conveyor system to move up and down with variable speeds and stop at two
dedicated positions. Four sensors are required to signal the limit positions for the motor to stop
or decelerate.
Precondition
• You interconnect the signals of the sensors with the digital inputs of your choice.
• To make sure that the corner turntable lift moves between the higher position and the lower
position, the end position shutdown must be activated with p3392 set to 1.
