Siemens SINAMICS G115D

Note
Gearbox sizes 19 and 29
Gearbox sizes 19 and 29 are lubricated for life. There is no opening to check the oil level. An oil
change is not required.
In mounting positions M2 and M4 the gearboxes are equipped with a breather valve.
C29 has a breather valve in all mounting positions.
12.3.24.2 Checking the oil level
NOTICE
The gearbox oil volume changes depending on the temperature
If the temperature rises, the volume increases. Where temperature di󹪜erences and 󹪝lling
quantities are signi󹪝cant, the volume di󹪜erence can amount to several liters.
The oil level must therefore be checked while still slightly warm, approximately 30minutes
after switching o󹪜 the drive unit.



E
YY
(
① Speci󹪝ed oil level
② Maximum oil level
③ Minimum oil level

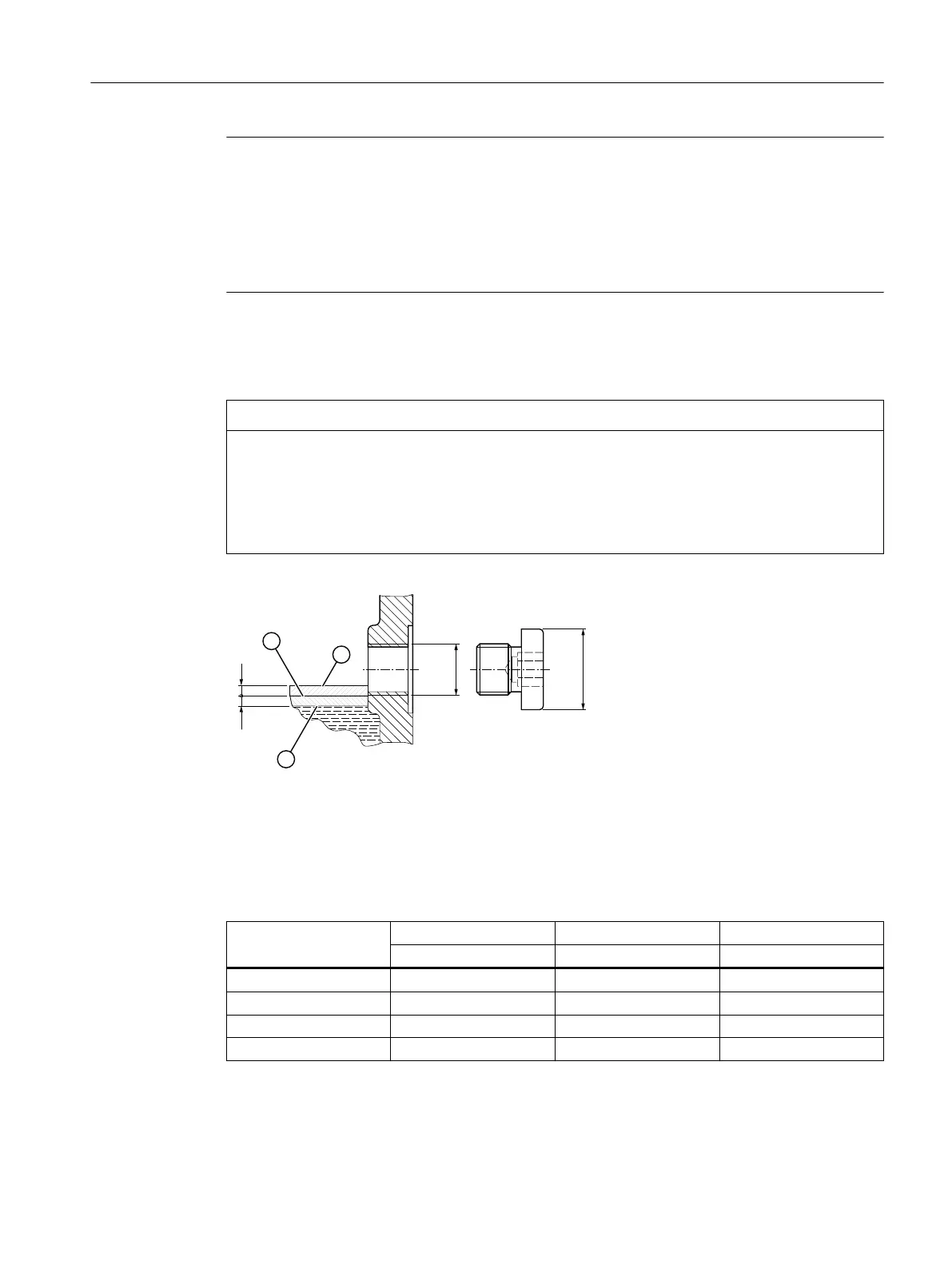

Figure12-32 Oil level in the gearbox housing
Table 12-43 Minimum and maximum 󹪝ll levelsx
Oil level hole ∅d2 Fill levelx Tightening torque
mm mm Nm
G1/8" 14 2.5 10
G1/4" 18 3 10
G3/8" 22 4 25
G3/4" 32 7 50
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 515
