7.9.3.1 Corner turntable lift, two positions and one speed (p3393 = 9)
Overview

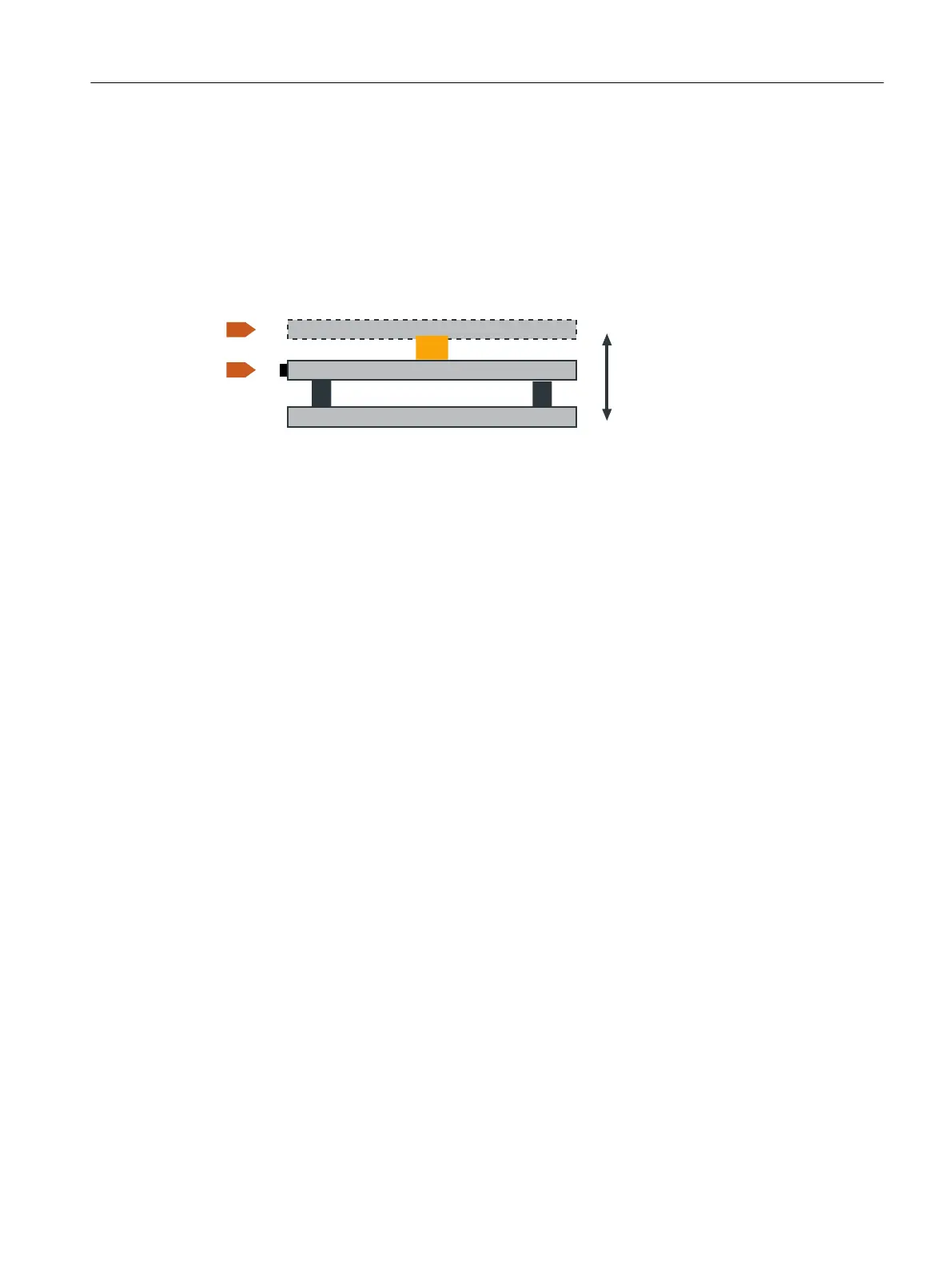

With p3393 (conveyor technology application) set to 9, the converter enables a corner turntable
lift in a conveyor system to move up and down with a xed speed and stop at two dedicated
positions. Two sensors are required to signal the limit positions for the motor to stop.
Precondition
• You interconnect the signals of the sensors with the digital inputs of your choice.
• To make sure that the corner turntable lift moves between the higher position and the lower
position, the end position shutdown must be activated with p3392 set to 1.
