Siemens SINAMICS G115D

Parameter Description Setting
p3395 Low speed sensor evaluation type See p3394.
Factory setting: 4
r3396.0...16 CO/BO: Conveyor technology appli‐
cation status
Displays the status of the conveyor technology ap‐
plication.
p3397 CI: Rapid traverse setpoint signal
source
Sets the signal source of the high speed setpoint.
The setpoint for the input is interconnected with
the main setpoint p1070.
p3398 CI: Low speed setpoint signal
source
Sets the signal source of the low speed setpoint.
The connector input can be interconnected with a
󹪝xed setpoint (p1001 and following) or potentiom‐
eter (r0752).
Factory setting: 0
r3399 CO: Setpoint active Displays the active setpoint of the conveyor tech‐
nology application.
For more information about the conveyor control function, refer to the parameter list and
function diagrams 7040 to 7051 in the List Manual.
7.10 Switching over the drive control (command data set)
Overview
Several applications require the option of switching over the control authority to operate the
converter.
Example: The motor is to be operable either from a central control via the 󹪝eldbus or via the
local digital inputs of the converter.
Function description

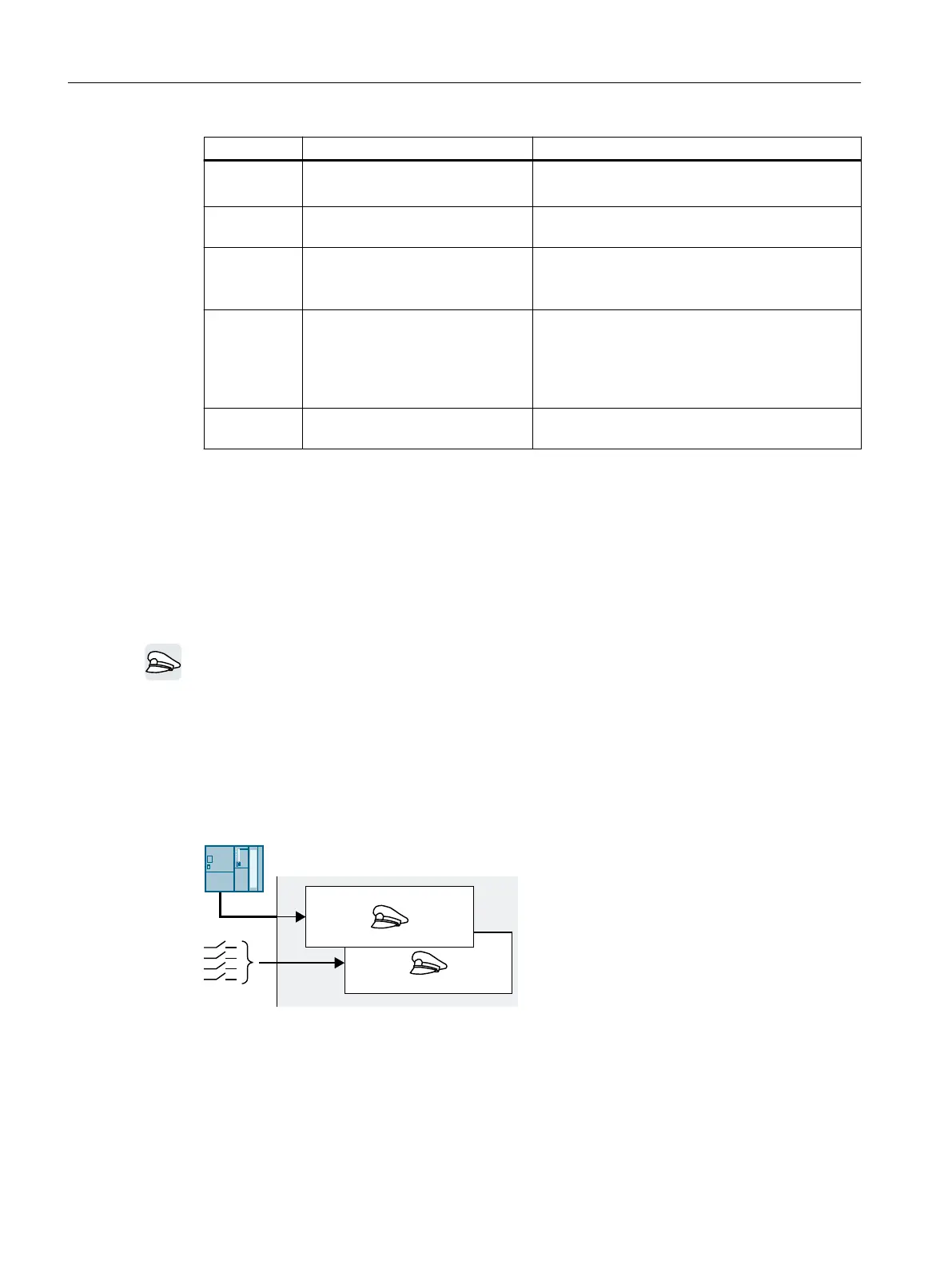

Command data set (CDS)
&'6
&'6
This means that you can set the converter con‐
trol in various ways and toggle between the
settings. For instance, as described above, the
converter can either be operated via a 󹪝eldbus
or via its digital inputs.
The settings in the converter, which are as‐
signed to a speci󹪝c master control, are termed
the command data set.
You select the command data set using parameter p0810. To do this, you must interconnect
parameter p0810 with a control command of your choice, e.g. a digital input.
