6.4.2.1 Creating a project
Procedure
1. Start the Startdrive commissioning software.

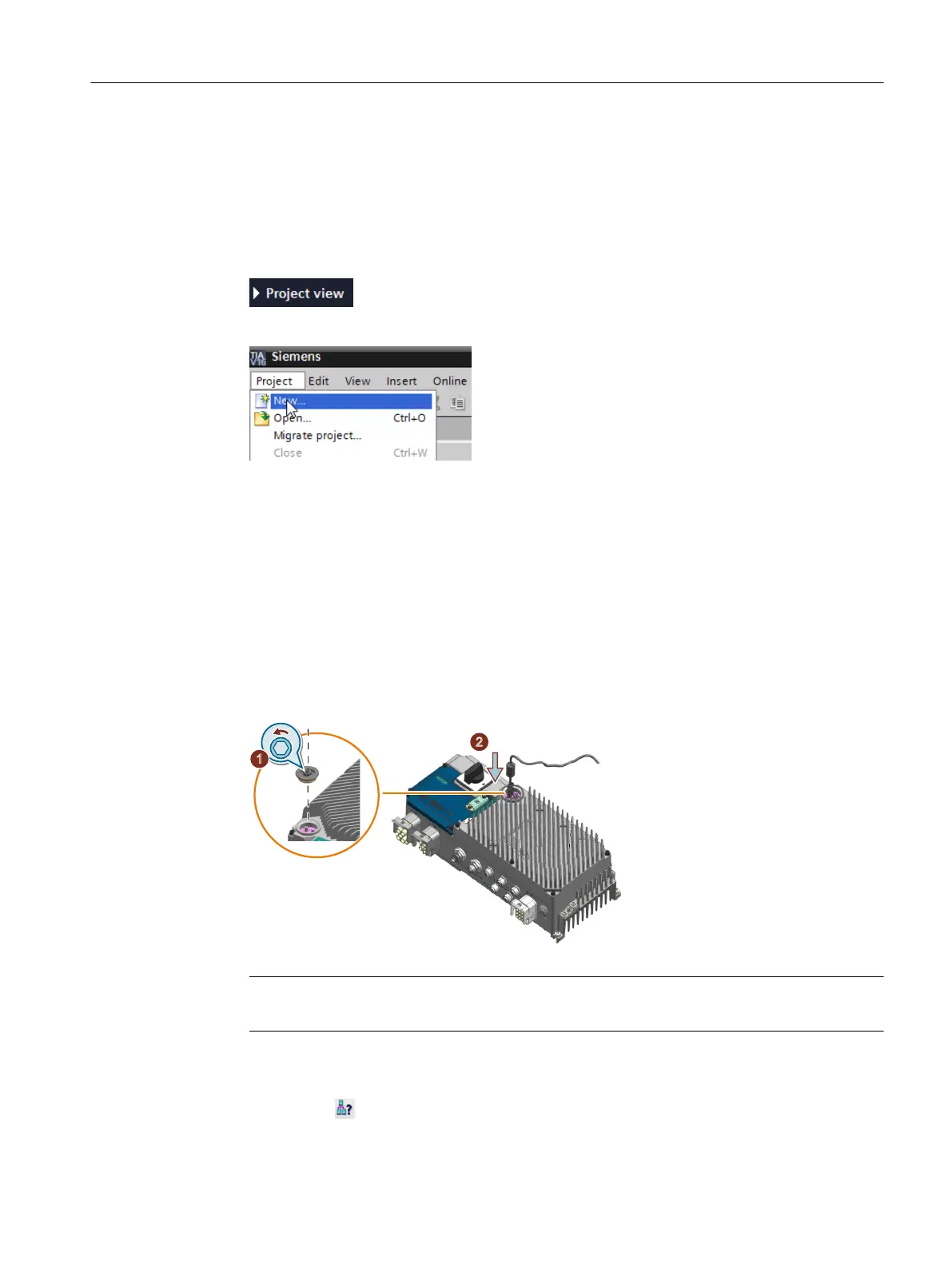

2. Switch to project view by clicking on the link at the bottom left of the window, as shown
below:
3. In the menu, select the following command:
4. Specify a name of your choice for the project.
You have created a new project.
❒
6.4.2.2 Integrating the converter into the project
Procedure
1. Switch on the converter power supply.
2. Remove the commissioning cover (①) from the G115D converter by using an S12 hex nut
driver and insert a USB cable to establish the connection between your PC and the converter.
Note
Reattach the commissioning cover with a tightening torque of 2.5 Nm (22.1 lbf.in).
3. The PC operating system installs the USB driver when you are connecting the converter and
PC together for the rst time.
4. Click on the button in the toolbar to open the window of accessible devices.
Commissioning
6.4Quick commissioning
