11.1.5 Load cycles and overload capabilities
Overload capability is the property of the converter to temporarily supply a current that is higher
than the rated current to accelerate a load.
De󹪝nitions
Base load
Constant load between the accelerating phases of the converter
HO base load input current
Permissible input current for a "High Overload" load cycle
HO base load output current
Permissible output current for a "High Overload" load cycle
HO base load power
Rated power based on the HO base load output current
If not speci󹪝ed otherwise, the power and current data in the technical data always refer to a
load cycle according to High Overload.

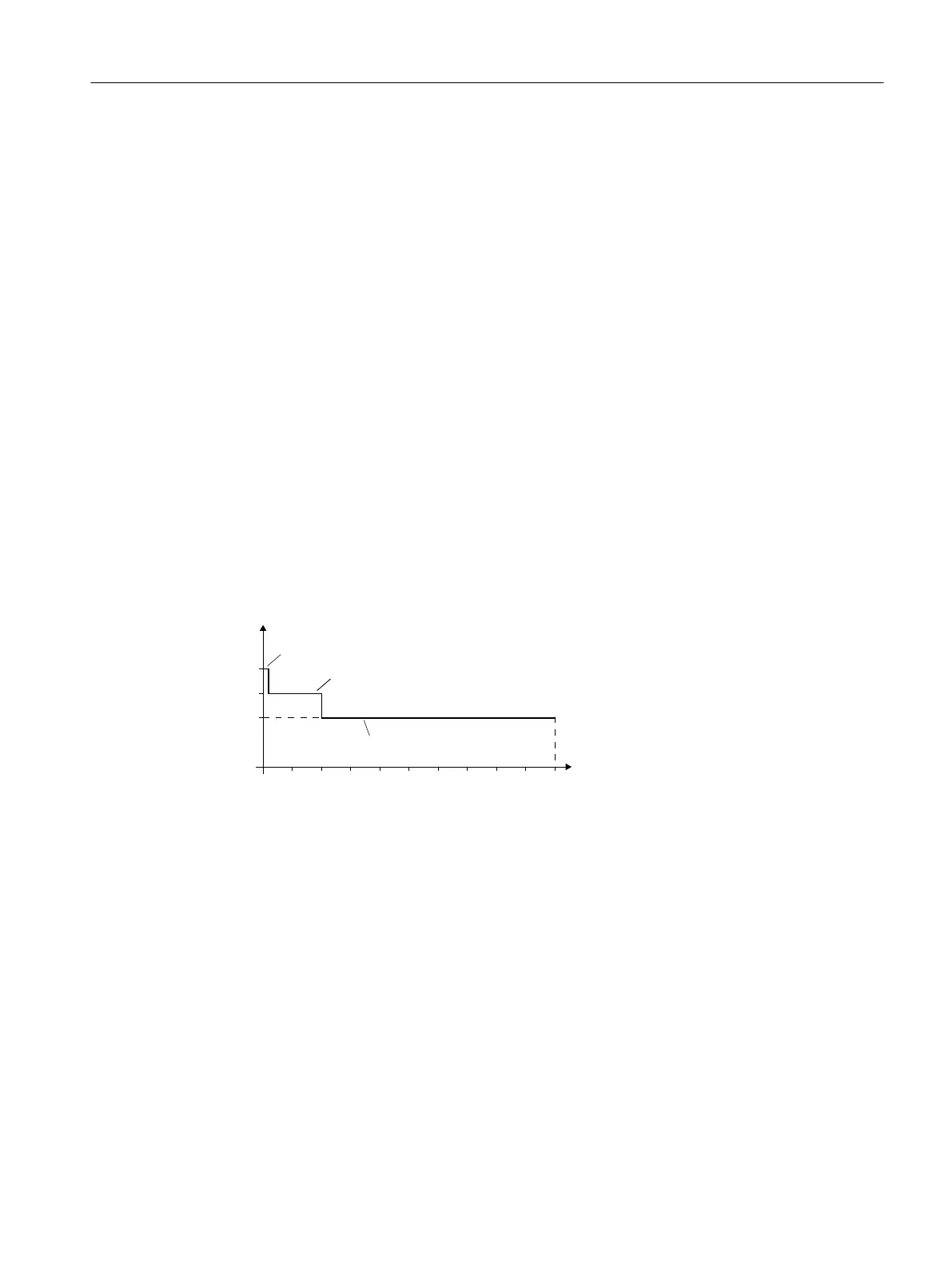

Permissible converter overload
PWFSMPBEGPST
PWFSMPBEGPST
#BTFMPBEGPST
#BTFMPBE)0






U<T>
Note
• The rated ambient temperature for the above load cycles is 40°C.
• You can set the parameter p0292[0]to a range of 5°Cto25°C based on the application.
I
2
t curve for overload capacity
Technical data
11.1Technical data of the G115D wall-mounted converter
