12.3.16.2 Installing SIMOLOC
UP









p













B

UP





UP






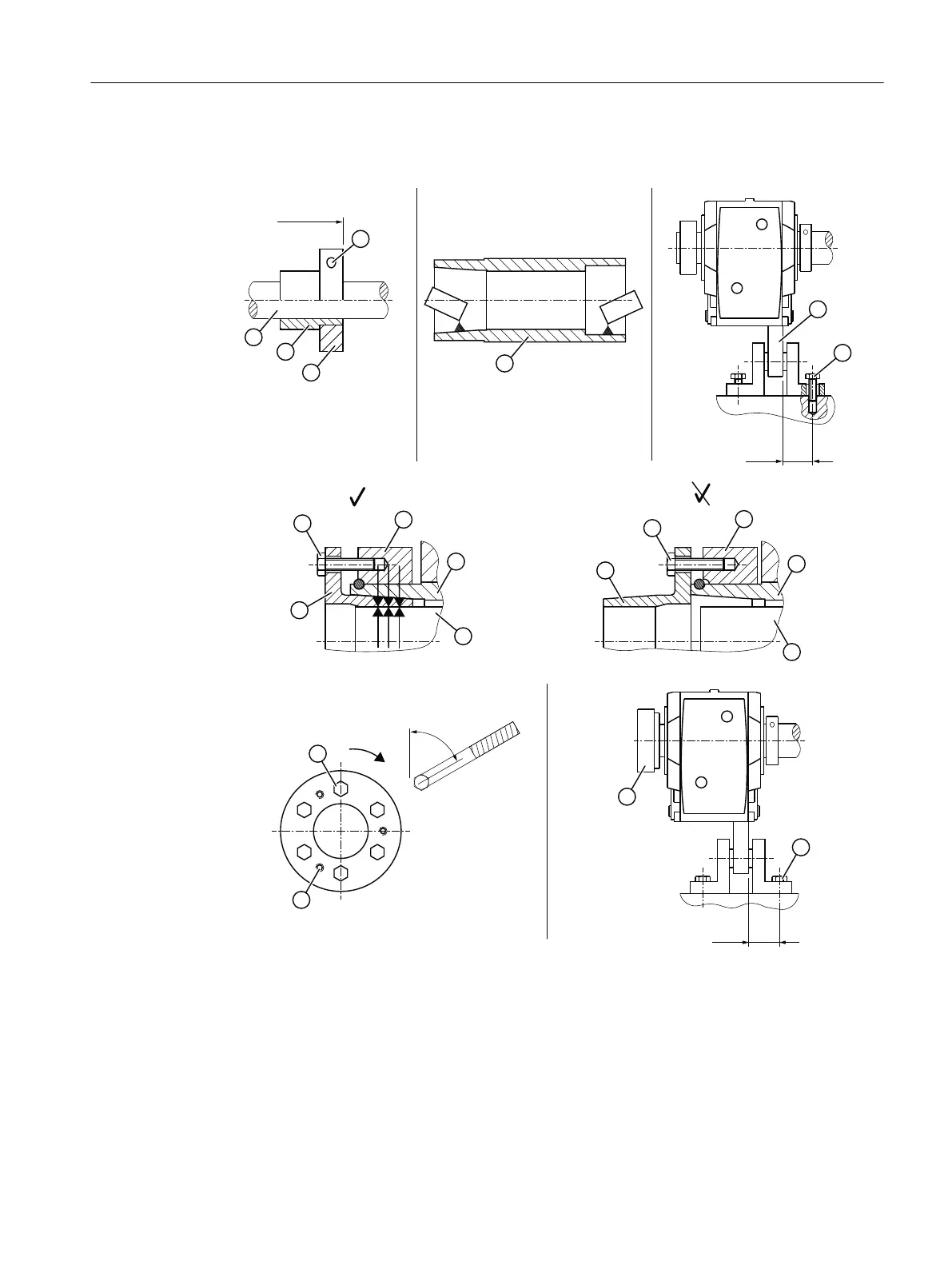

a Absolutely grease-free ⑦ Torque arm
① Machine shaft ⑧ Screw
② Bronze bushing ⑨ Tapered bushing
③ Clamping ring ⑩ Tightening bolt for the tapered bushing
④ Tightening bolt for the clamping ring ⑪ Protection cover / cover cap
⑤ Thrust collar ⑫ Threaded hole for the tightening bolt⑩
during disassembly
⑥ Hollow shaft
Figure12-24 Installing SIMOLOC
