Parameter Description Setting
p1083[0...n] CO: Speed limit in positive direc‐
tion of rotation [rpm]
Sets the maximum speed for the positive direction.
Factory setting: 210000
r1084 CO: Speed limit positive active
[rpm]
Display and connector output for the active positive
speed limit.
p1085[0...n] CI: Speed limit in positive direction
of rotation
Sets the signal source for the speed limit of the
positive direction.
Factory setting: 1083
p1091[0...n]
...
p1094[0...n]
Skip speed 1 ... 4 [rpm] Sets skip speed 1 ... 4.
Factory setting: 0
p1098[0...n] CI: Skip speed scaling Sets the signal source for scaling the skip speeds.
Factory setting: 1
r1099.0 CO/BO: Skip frequency band of sta‐
tus word
Display and BICO output for the skip bands.
.00 1 signal: r1170 within the skip band
p1106[0...n] CI: Minimum speed signal source Sets the signal source for lowest possible motor
speed.
Factory setting: 0
r1112 CO: Speed setpoint according to
minimum limit [rpm]
Displays the speed setpoint after the minimum lim‐
iting.
r1114 CO: Setpoint after direction limit‐
ing [rpm]
Displays the speed/velocity setpoint after the
changeover and limiting the direction.
r1119 CO: Ramp-function generator set‐
point at the input [rpm]
Displays the setpoint at the input of the ramp-func‐
tion generator.
r1170 CO: Speed controller setpoint sum
[rpm]
Display and connector output for the speed set‐
point after selecting the ramp-function generator.
Further information is provided in the parameter list of the List Manual.

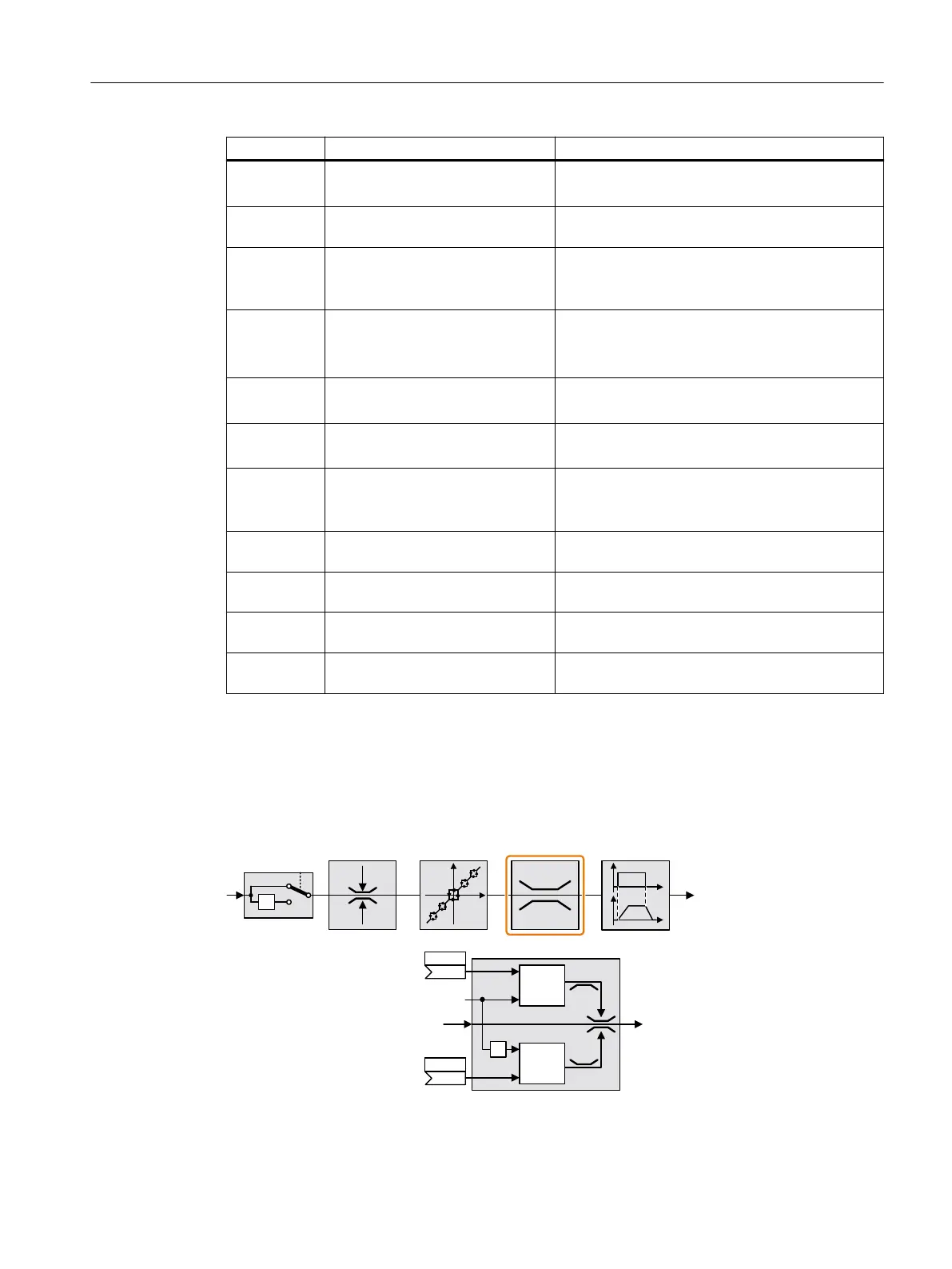

7.18.5 Speed limitation
The maximum speed limits the speed setpoint range for both directions of rotation.






[
\
[
\
W
\\[[
S
S
0D[LPXPVSHHG
0LQ
0D[
The converter generates a message (fault or alarm) when the maximum speed is exceeded.
