Function description

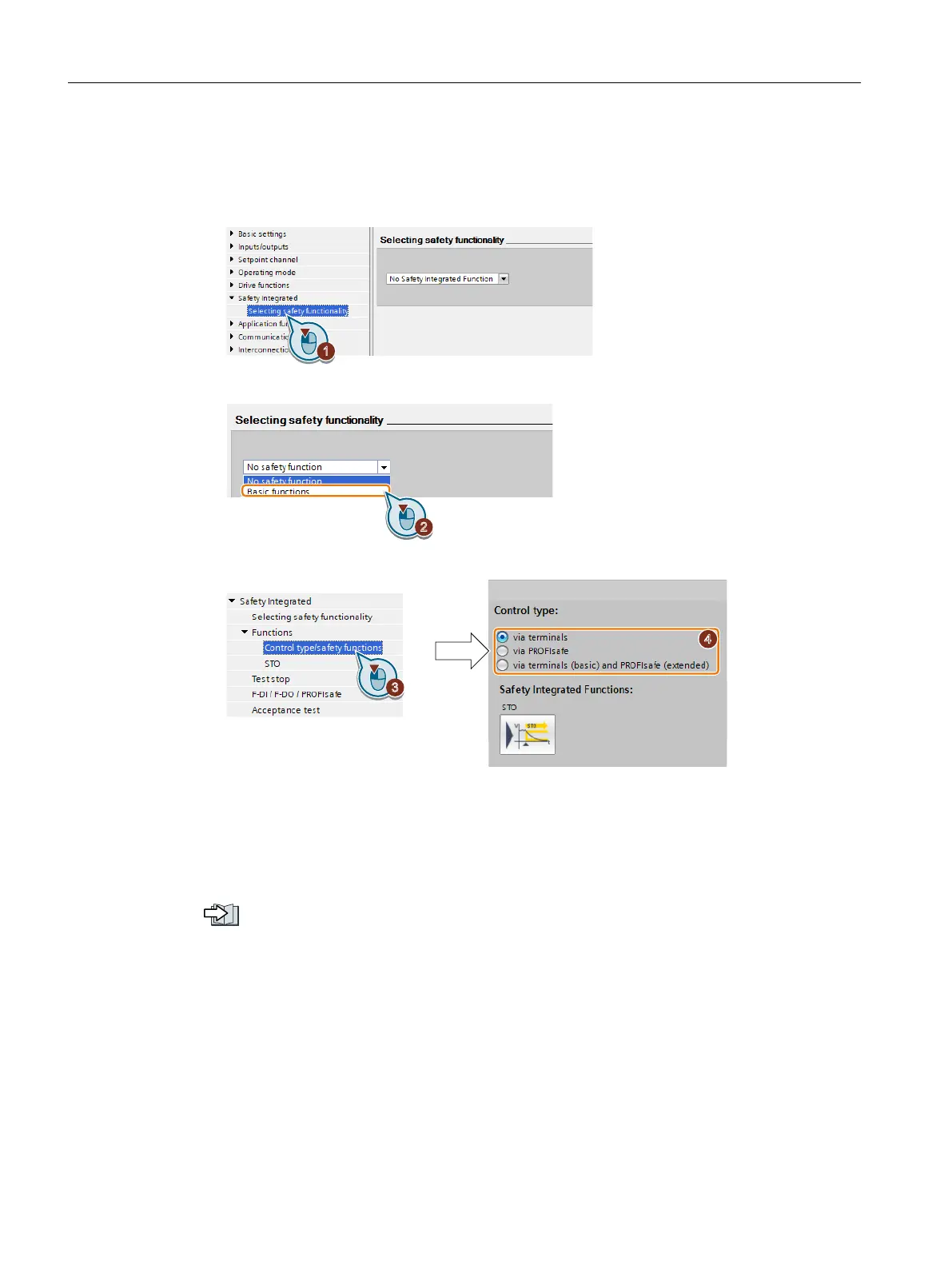

Procedure
1. Select "Select safety functionality".

2. Select "Basic Functions".

3. Select "Control type/safety functions".


4. Select "Via terminals" as control type for the safety functions.
You have con󹪝gured the safety functions.
❒
Additional con󹪝gurations of the safety functions are described in the "Safety Integrated"
Function Manual.
Overview of the manuals (Page588)
7.15.2.4 Interconnecting the "STO active" signal
Overview
If you require the feedback signal "STO active" of the converter in your higher-level control
system, then you must appropriately interconnect the signal.
