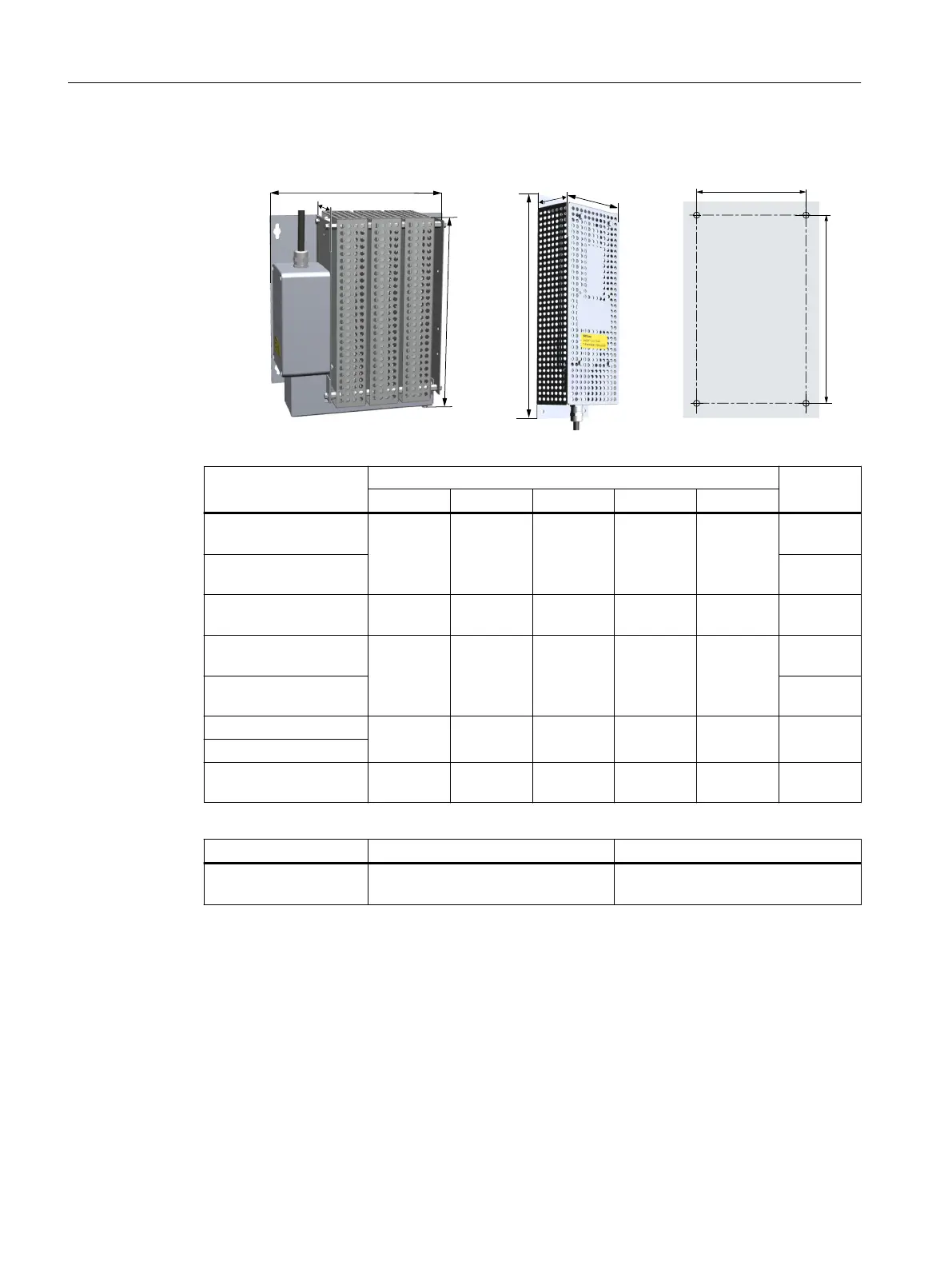

Outline dimensions and drill pattern
%
"
)
8
%
)
8
#
Article number Dimensions (mm/inch) Weight
(kg/lb.)
H W D A B
6SL3501-1BE32-0AA0 320 (12.6) 106 (4.2) 64 (2.5) 86 (3.4) 300 (11.8) 1.56
(3.43)
6SL3501-1BE32-4AA0 2.10
(4.62)
6SL3501-1BE34-8AA0 245 (9.6) 216 (8.5) 96.5 (3.8) 197 (7.8) 176 (6.9) 3.89
(8.56)
6SL3501-1BE32-0BA0 320 (12.6) 106 (4.2) 64 (2.5) 86 (3.4) 300 (11.8) 1.56
(3.43)
6SL3501-1BE32-4BA0 2.10
(4.62)
6SL3501-1BE36-0BA0 245 (9.6) 227 (8.9) 96.5 (3.8) 208 (8.2) 176 (6.9) 3.42
(7.52)
6SL3501-1BE36-0CA0
6SL3501-1BE41-2CA0 245 (9.6) 349 (13.7) 96.5 (3.8) 330 (13.0) 176 (6.9) 5.47
(12.03)
 Fastening Tightening torque
Fixing to the mounting
surface
4 x M4 screws, nuts, washers 2.5Nm (22.1lbf.in)
4.2.2 Mounting the SINAMICS G120 Smart Access
To mount the SINAMICS G120 Smart Access to the G115D converter, you must use the
optional SAM interface kit (Page37).
Mounting
4.2Mounting the optional components
