12.3.31.5 Bevel gearbox
.
..
.
.
.
"
#
#
"
"
#
#
"
##
#
#
#
"
"
#
#
"

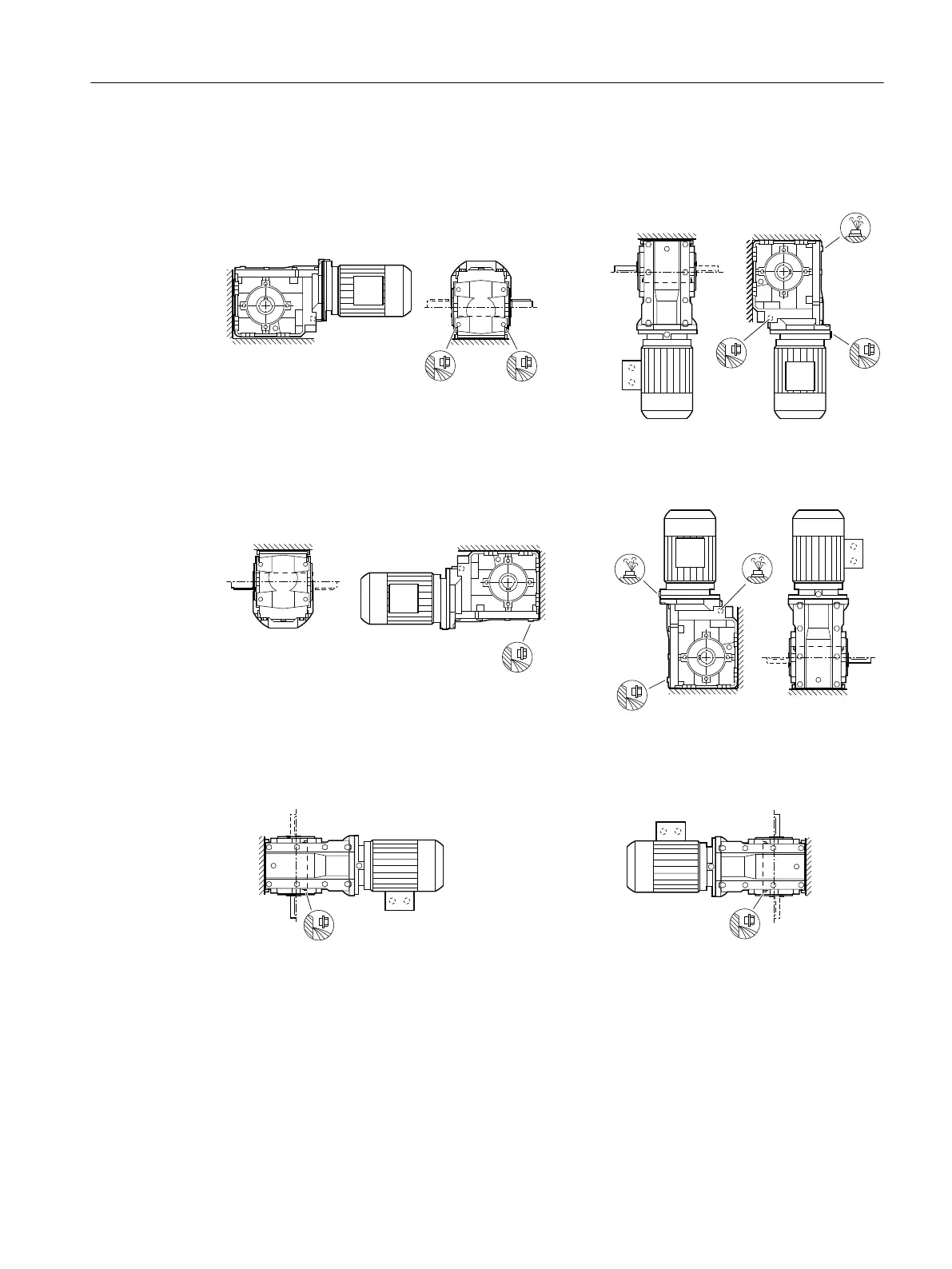

Figure12-51 Mounting positions for bevel gearbox B. foot-mounted design, frame sizes19-29
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
