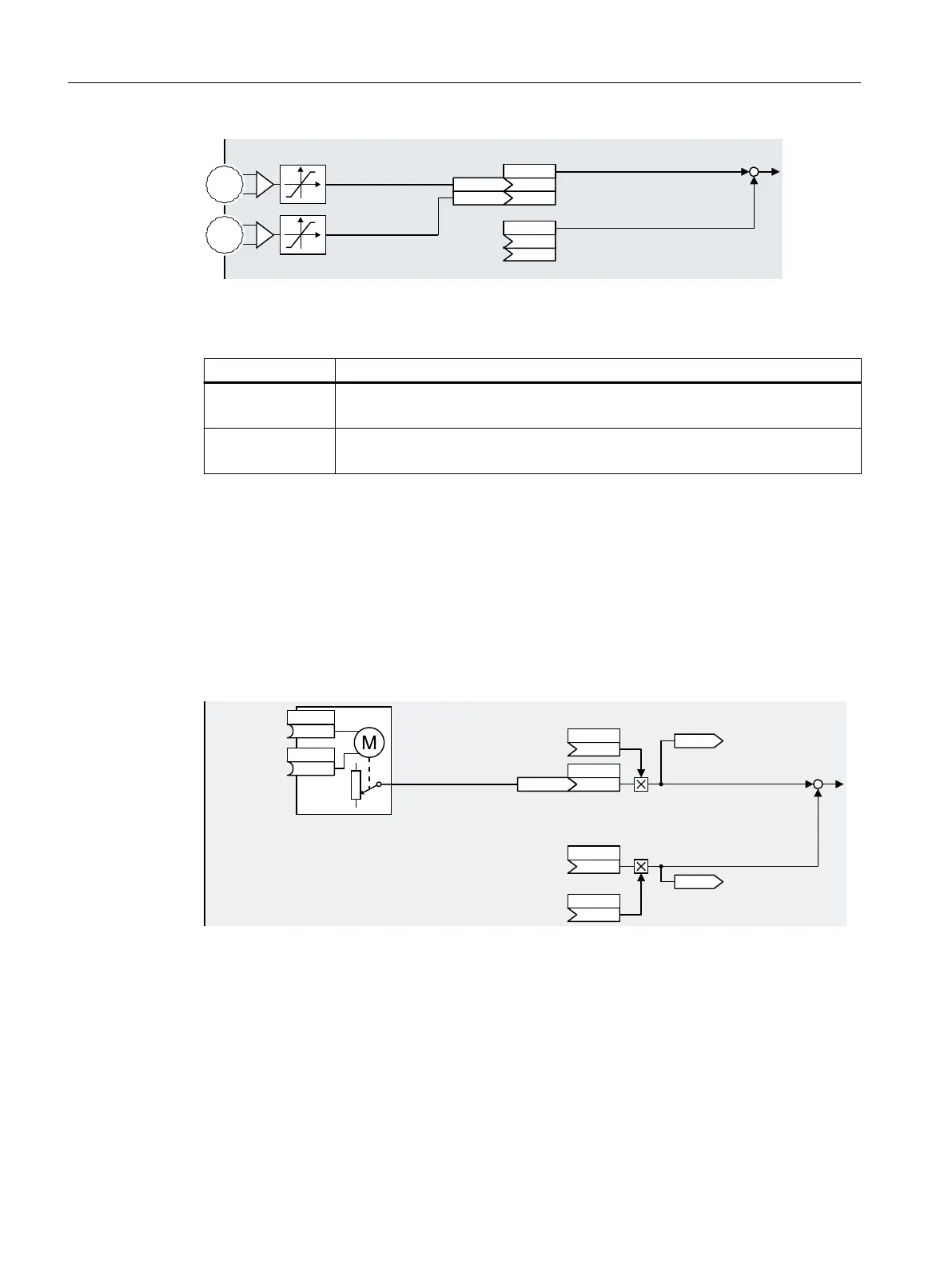

Setting the potentiometer as setpoint source
Parameter Description
p1070[0] = 755[0]
p1070[1] = 755[1]
Main setpoint
Interconnect the main setpoint with the internal analog inputs 0 and 1.
p1075[0] = 755[0]
p1075[1] = 755[1]
Additional setpoint
Interconnect the additional setpoint with the internal analog inputs 0 and 1.
7.17.4 Motorized potentiometer as setpoint source
Overview
The "Motorized potentiometer" function emulates an electromechanical potentiometer. The
output value of the motorized potentiometer can be set with the "higher" and "lower" control
signals.
S
S
S
S
S
U
U
S
U
0RWRUL]HGSRWHQWLRPHWHU
VHWSRLQWDIWHUWKHUDPS
IXQFWLRQJHQHUDWRU
5DLVH
/RZHU
0DLQVHWSRLQW
6FDOLQJ
6FDOLQJ
6XSSOHPHQWDU\VHWSRLQW
Advanced commissioning
7.17Setpoints
SINAMICS G115D Wall Mounted distributed drive
258 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
