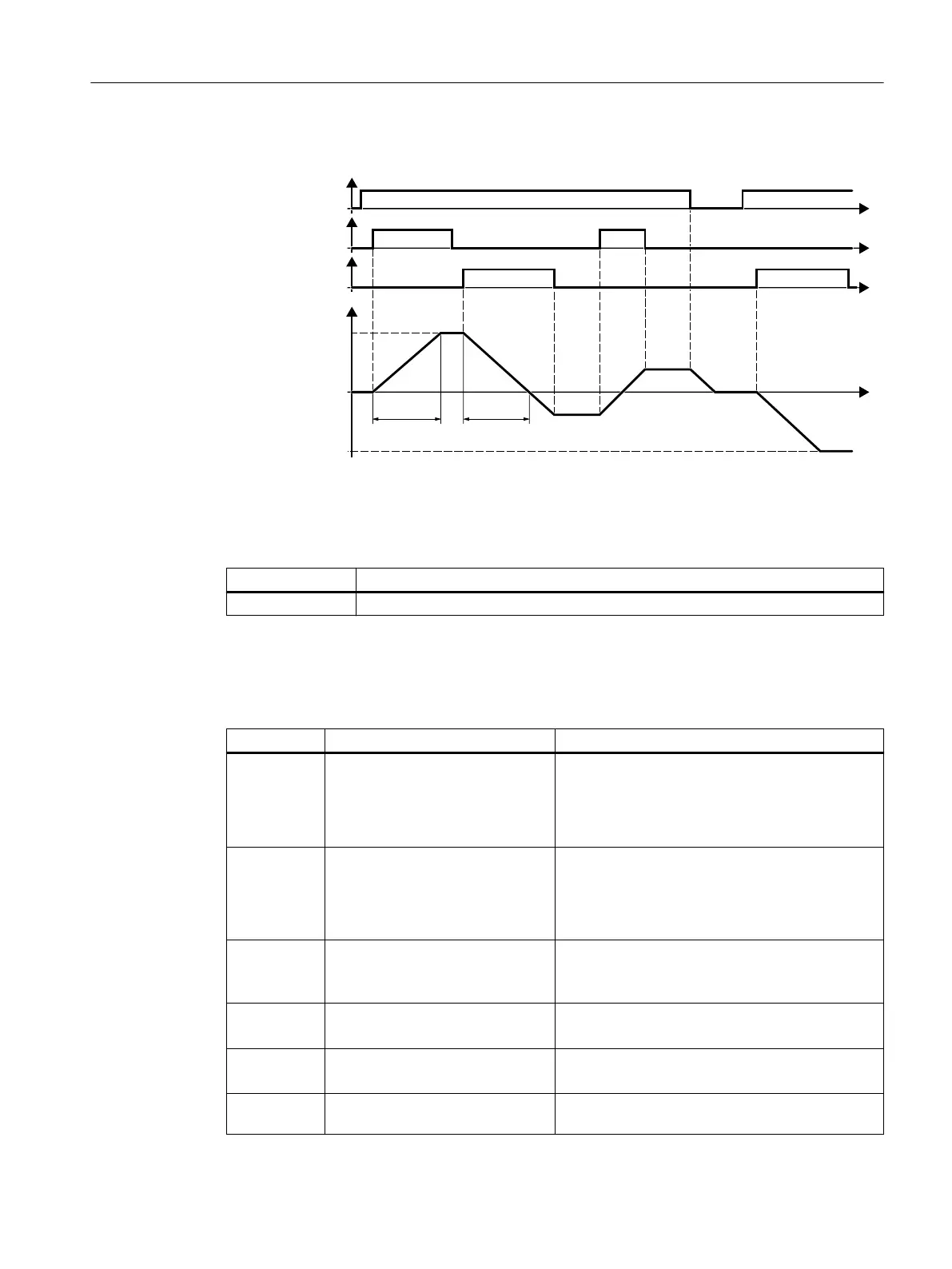

Example
Setting with the motorized potentiometer as setpoint source:
Parameter Description
p1070 = 1050 Interconnects the main setpoint with the motorized potentiometer output.
Parameters
Table 7-4 Basic settings
Parameter Description Setting
p1035[0...n] BI: Motorized potentiometer set‐
point higher
Signal source to continuously increase the setpoint
The factory setting depends on the converter.
• With PROFINET interface: [0] 2090.13; [1] 0
• Without PROFINET interface: 0
p1036[0...n] BI: Motorized potentiometer set‐
point lower
Signal source to continuously decrease the setpoint
The factory setting depends on the converter.
• With PROFINET interface: [0] 2090.14; [1] 0
• Without PROFINET interface: 0
p1040[0...n] Motorized potentiometer start val‐
ue [rpm]
Start value that is e󹪜ective when the motor is
switched on.
Factory setting: 0 rpm
p1047 Motorized potentiometer, ramp-up
time [s]
MOP ramp-up time
Factory setting: 10 s
p1048 Motorized potentiometer, ramp-
down time [s]
MOP ramp-down time
Factory setting: 10 s
r1050 Motorized potentiometer, setpoint
after the ramp-function generator
Motorized potentiometer, setpoint after the ramp-
function generator
Advanced commissioning
7.17Setpoints
