Siemens SINAMICS G115D

A.2.2 Acceptance test STO (basic functions)



2))
6SHHG
*UHHQ2Q
'LDJQRVWLFV
672GHVHOHFWHG
672DFWLYH
672VHOHFWHG
672VHOHFWLRQ
2Q<HOORZ2Q)ODVKLQJVORZO\
&RQWURO
212))
21672VHOHFWHG
6$)(
5'<
W
W
U
U
U
/('
352),VDIH
U)',
W
S

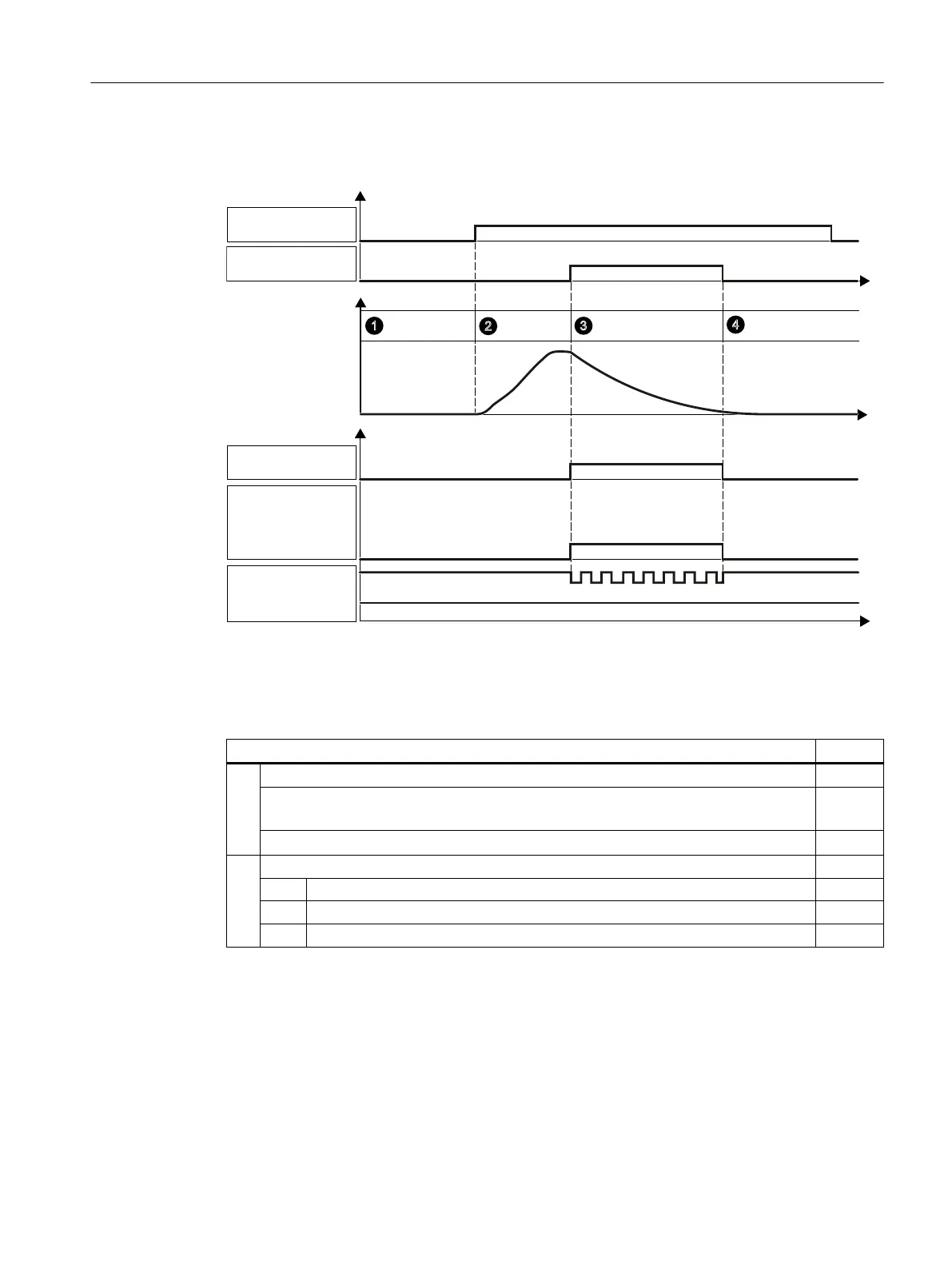

Procedure
To perform an acceptance test of the STO function as part of the basic functions, proceed as
follows:
Status
1. The converter is ready 
• The converter signals neither faults nor alarms of the safety functions (r0945[0…7],
r2122[0…7]).

• STO is not active (r9773.1 = 0).

2. Switch on motor 
2.1. Enter a speed setpoint≠0. 
2.2. Switch on the motor (ON command). 
2.3. Check that the correct motor is running. 
Appendix
A.2Acceptance tests for the safety functions
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 585
