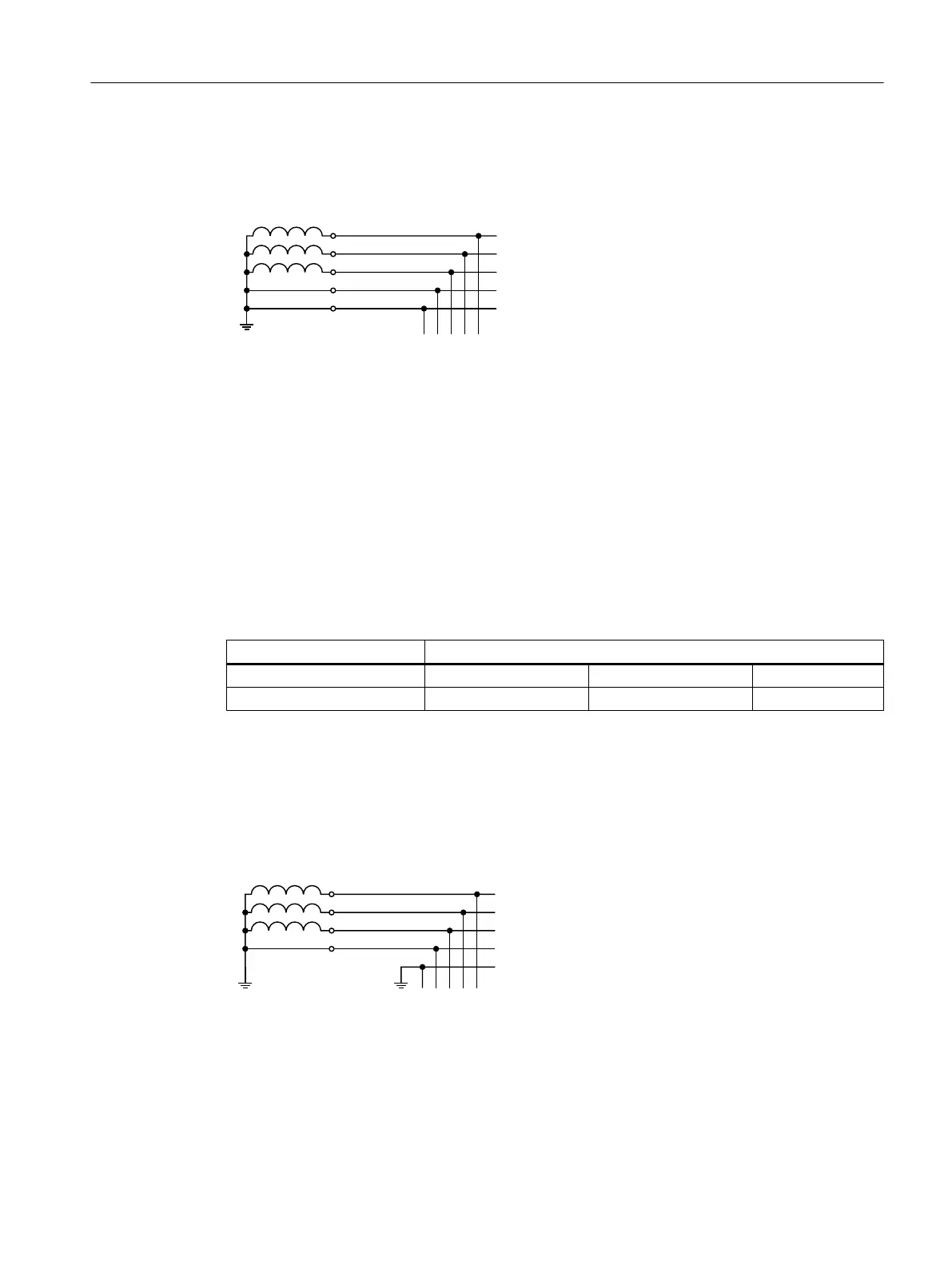

5.2.1 TN line system
7UDQVIRUPHURU
JHQHUDWRU
7RWKHV\VWHP
([DPSOH6HSDUDWHWUDQVIHURI1DQG3(
JURXQGHGQHXWUDOSRLQW
/
/
/
1
3(
A TN system transfers the PE protective conductor to the installed plant or system using a
cable.
The TN system can transfer the neutral conductor N and the PE protective conductor either
separately or combined.
Generally, in a TN system the neutral point is grounded. There are versions of a TN system
with a grounded line conductor, e.g. with grounded L1.
G115D drives can only be operated in a line system with grounded neutral point and are not
suitable for corner-grounded networks.
Converter operated on a TN system
Converter Line supply with grounded neutral
Frame size A B C
Integrated line 󹪝lter C2 ✓ ✓ ✓
✓ Operation permissible
5.2.2 TT line system
7UDQVIRUPHURU
JHQHUDWRU
7RWKHV\VWHP
([DPSOH7UDQVIHURI1JURXQGHGQHXWUDO
SRLQW
/
/
/
1
3(
In a TT system, the transformer grounding and the installation grounding are independent of
one another.
There are TT supplies where the neutral conductor N is either transferred – or not.
Wiring
5.2Permissible line supplies
