12.3.31.6 Helical worm gearbox
.
..
.
.
.
#
"
"
#
#
#
"
"
"
#
"
"
#
#
"
#
#"
#"
#
#
"
"
#
"

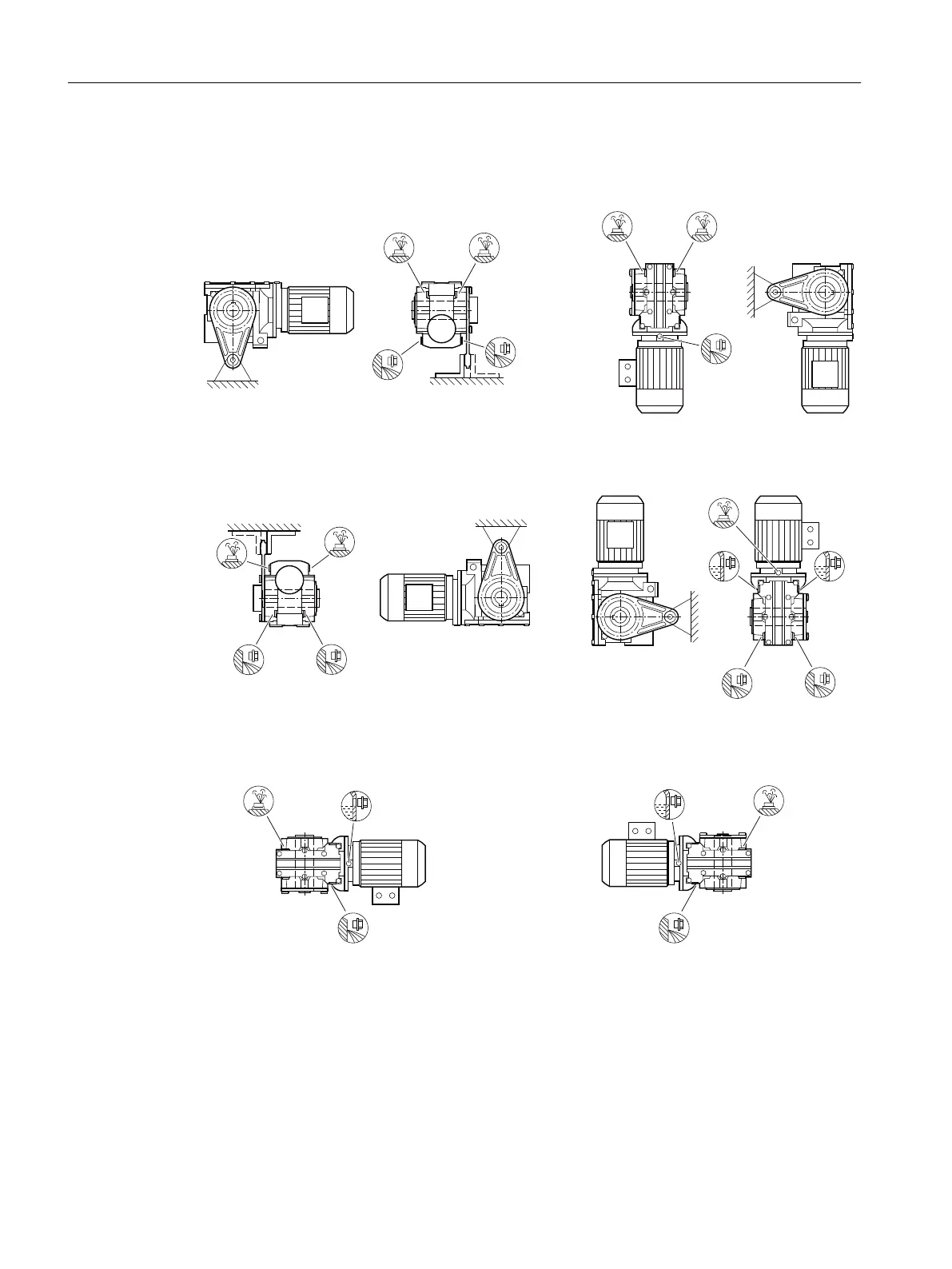

Figure12-60 Mounting positions for helical worm gearbox CAD shaft-mounted design, size29
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
