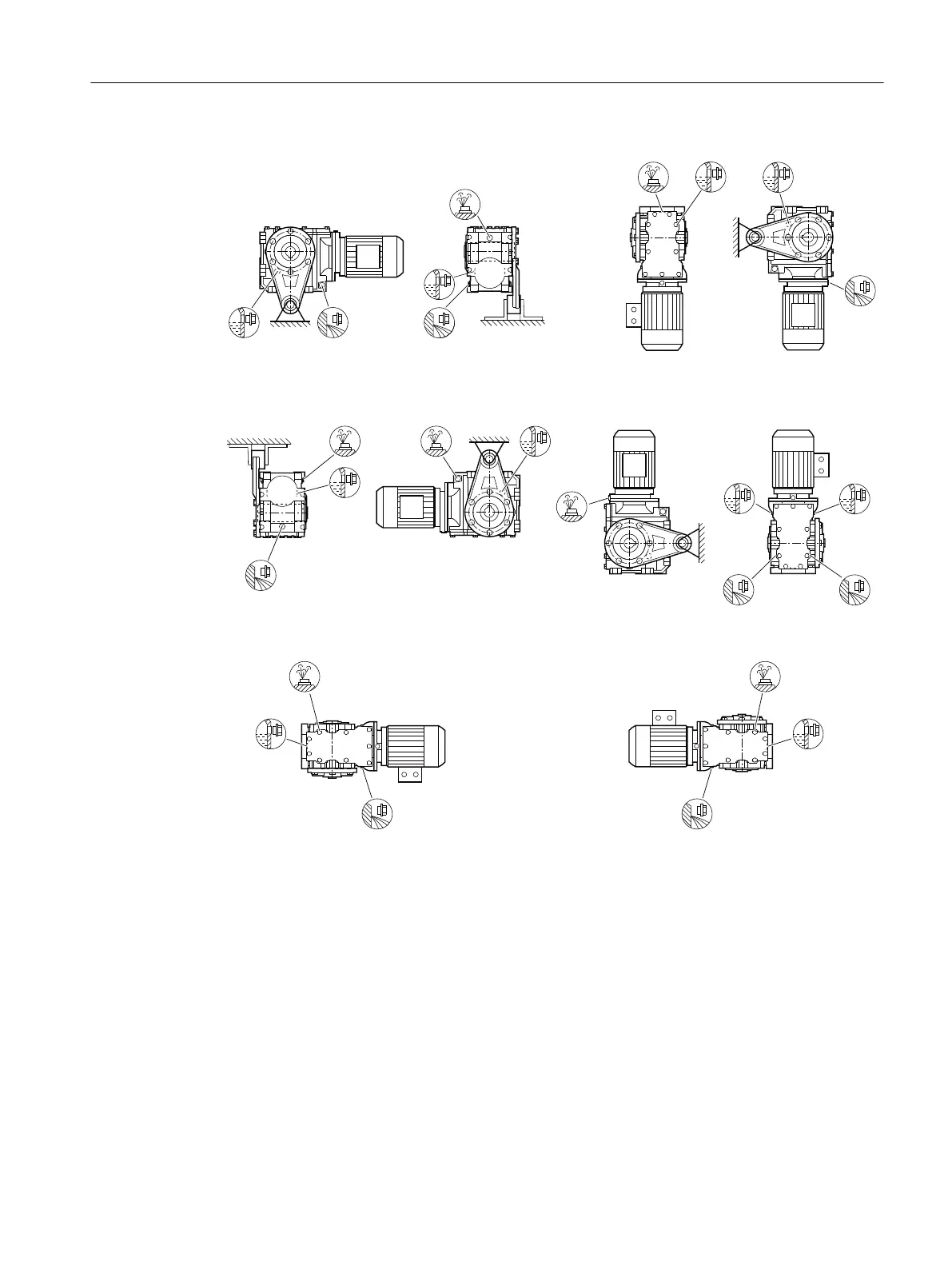

Figure12-61 Mounting positions for helical worm gearbox CAD shaft-mounted design, size39A
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
SINAMICS G115D Wall Mounted distributed drive
