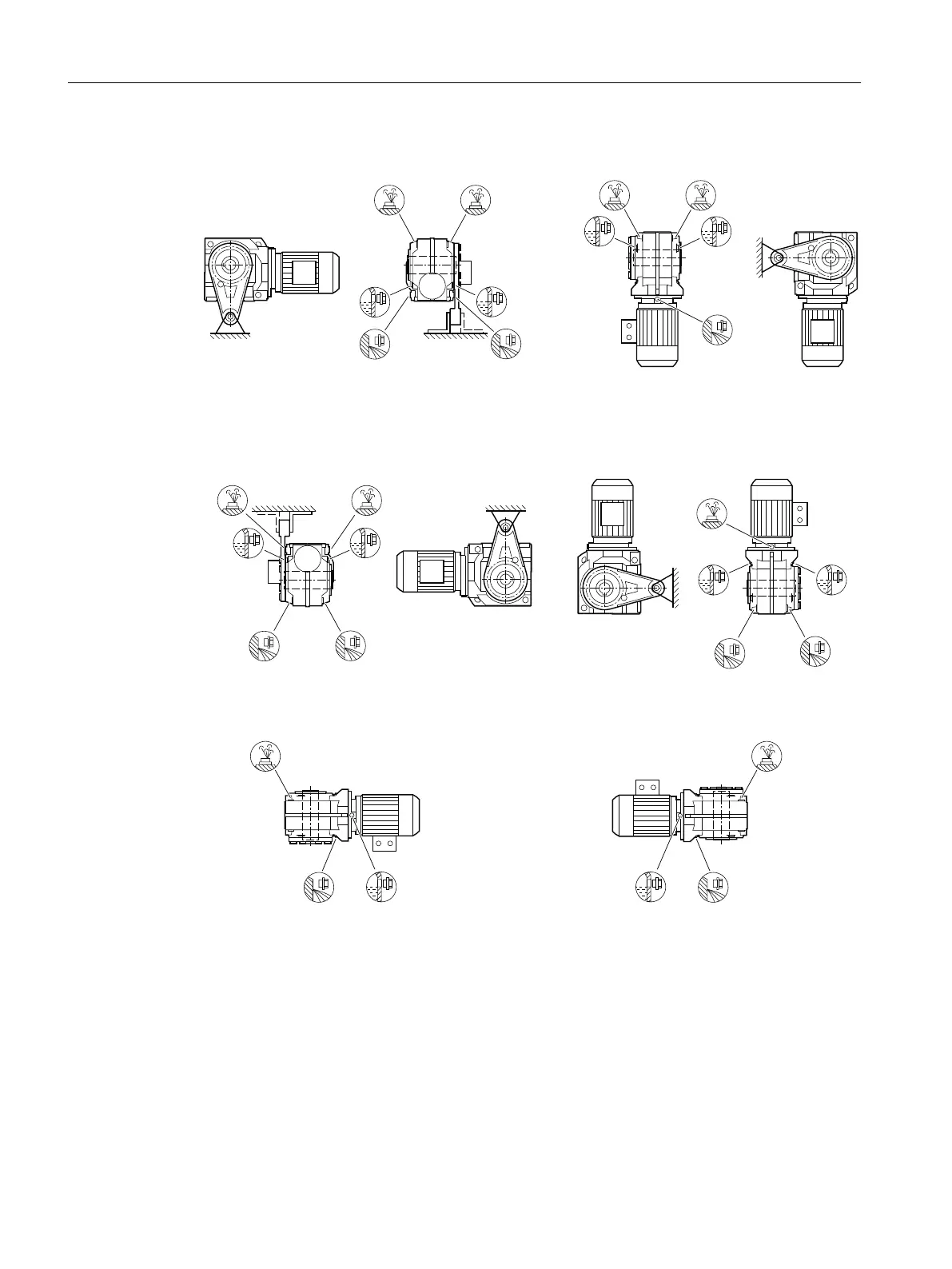

Figure12-62 Mounting positions for helical worm gearbox CAD shaft-mounted design, sizes39 - 89
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
