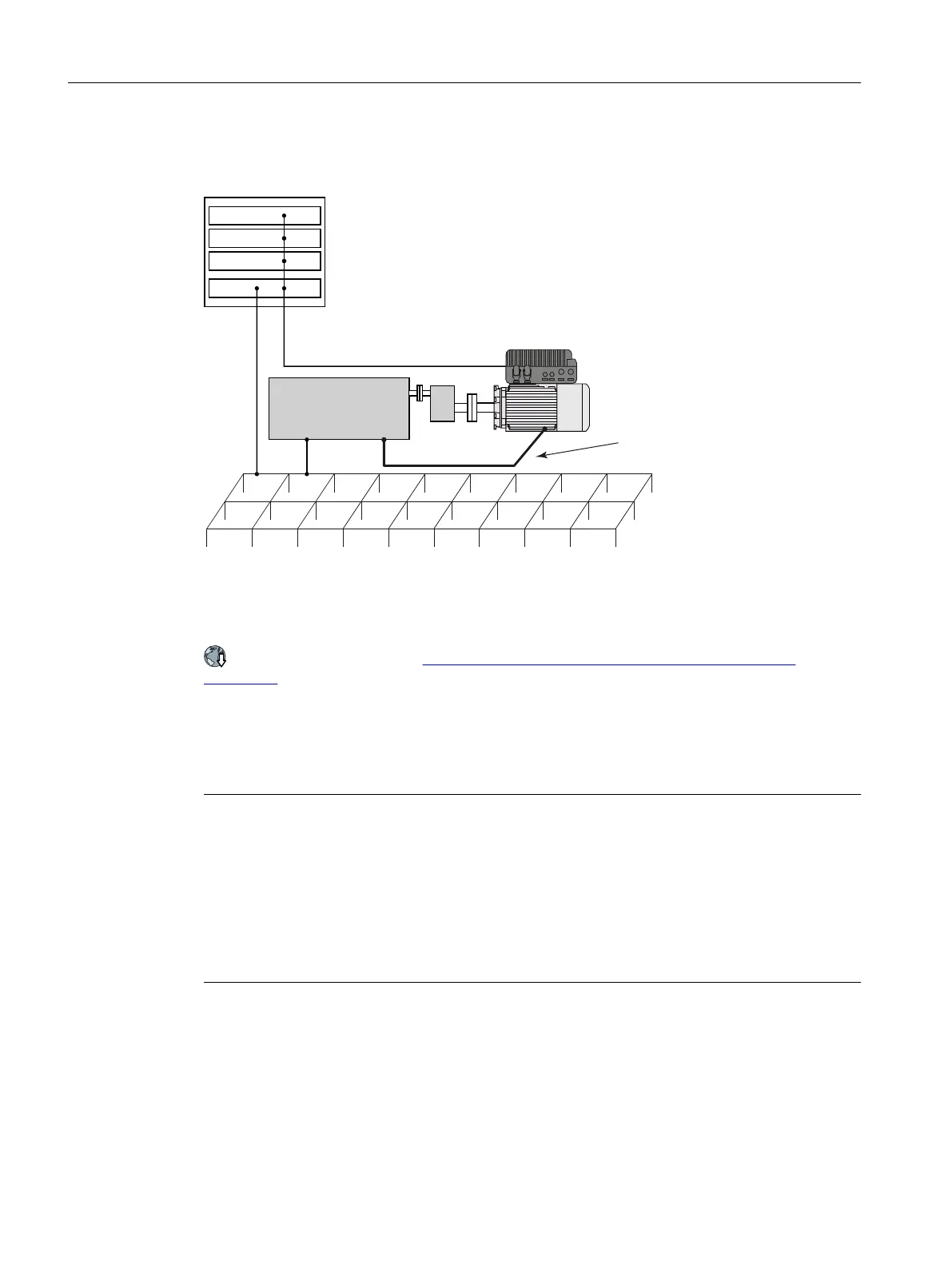

The connections in the following 󹪝gure provide a solid, high-frequency bonding between the
driven machine and the converter.
)LQHO\VWUDQGHGEUDLGHG
FRSSHUFDEOH
'ULYHQPDFKLQH
3(
/
/
/
Further information
Additional information about EMC-compliant installation is available on the Internet:
EMC installation guideline (https://support.industry.siemens.com/cs/ww/en/view/
60612658)
5.2 Permissible line supplies
Note
Fault protection in case of insulation failure for the motor circuit
The electronic overcurrent trip of the converter complies with the requirements laid down in IEC
60364-4-41:2005/AMD1:2017 Section 411 and Appendix D for protection against electric
shock.
• Observe the installation speci󹪝cations provided in this manual.
• Observe the applicable installation standards.
• Ensure the continuity of the protective conductor.
Wiring
5.2Permissible line supplies
