Siemens SINAMICS G115D

Advanced settings
You can debounce the digital input signal using parameter p0724.
For more information, see the parameter list and the function block diagram 2220 of the List
Manual.

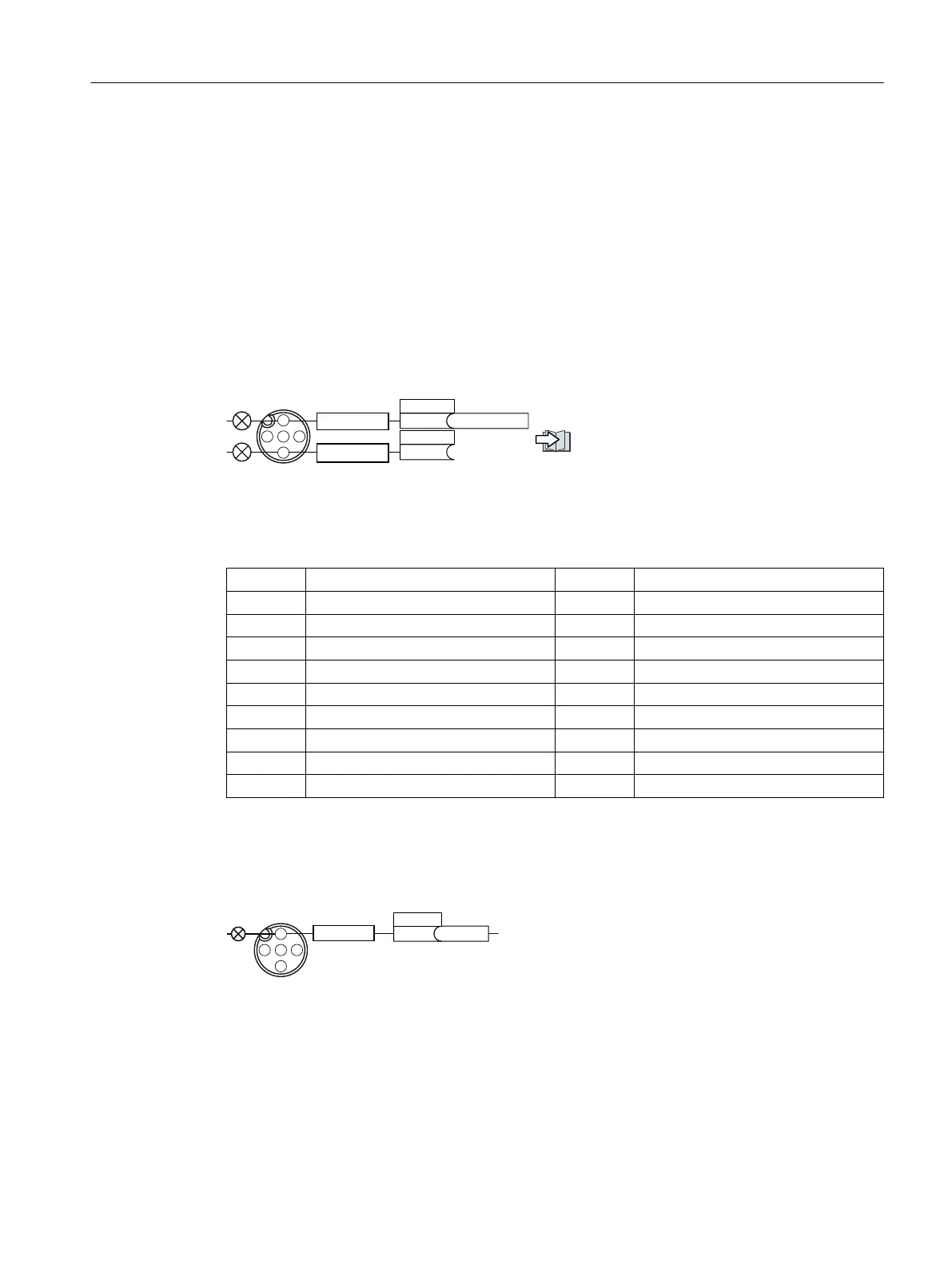

7.3.3 Digital outputs
Changing the function of the digital outputs
',2

',2





S
%2U\\[[Q
S
;
1)
Parameterized as digital outputs
Interconnect the digital output with a binector
output of your choice.
Interconnecting signals in the converter
(Page581)
Binector outputs are marked with "BO" in the pa‐
rameter list of the List Manual.
Binector outputs of the converter
0 Deactivating digital output r0052.9 Process data control
r0052.0 Drive ready r0052.10 f_actual >= p1082 (f_max)
r0052.1 Drive ready for operation r0052.11 Alarm: Motor current/torque limit
r0052.2 Drive running r0052.12 Brake active
r0052.3 Drive fault active r0052.13 Motor overload
r0052.4 OFF2 active r0052.14 Motor CW rotation
r0052.5 OFF3 active r0052.15 Converter overload
r0052.6 Switching on inhibited active r0053.0 DC braking active
r0052.7 Drive alarm active r0053.2 f_actual > p1080 (f_min)
r0052.8 Setpoint/actual value discrepancy r0053.6 f_actual ≥ setpoint (f_setpoint)
A complete list of the binector outputs is provided in the List Manual.
Example
;
2
5
4
1 3
U
S
','2
In order to output the fault message over the digital
output DI/DO25, you have to connect the DI/DO25
with the fault message: Set p0739=52.3.
Advanced settings
You can invert the signal of the digital output using parameter p0748.
For more information, see the parameter list and the function block diagram 2230 of the List
Manual.
Advanced commissioning
7.3Adapt the default settings of the inputs and outputs
