7.9.4.1 Travelling trolley, one speed (p3393 = 11)
Overview

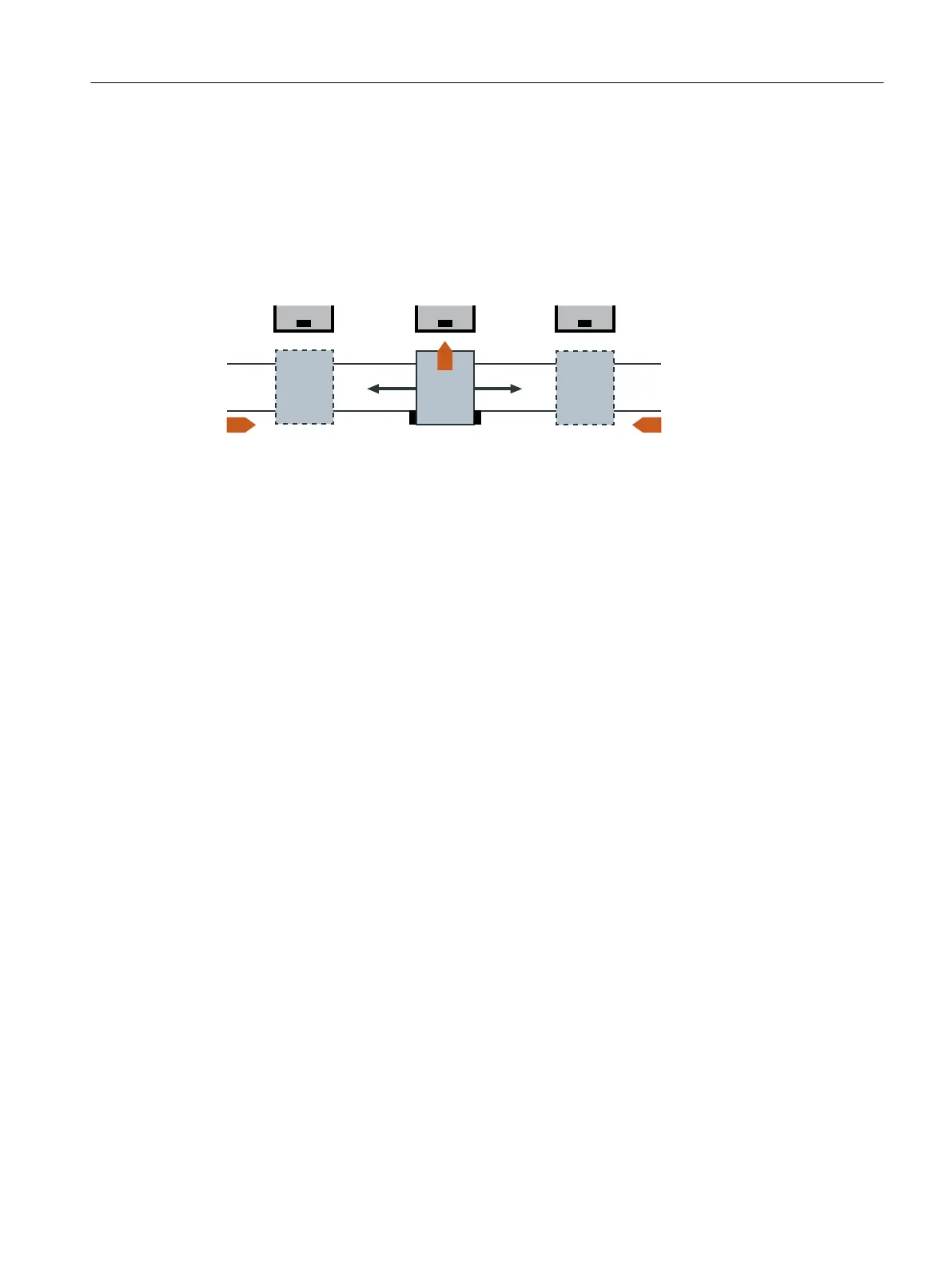

With p3393 (conveyor technology application) set to 11, the converter enables a travelling
trolley to move in either positive or negative direction with a 󹪝xed speed and stop at dedicated
positions. Three sensors are required to signal the limit positions for the motor to stop.


Precondition
• You interconnect the signals of the sensors with the digital inputs of your choice.
• The end position shutdown must be activated with p3392 set to 1 to avoid damage to the
devices.
• The controlling PLC can activate/deactivate the sensor bypass signal (p3390) and de󹪝ne
di󹪜erent positions among which the trolley can move.
Function description
• With the ON command, the motor accelerates to its speed setpoint (p1070). The trolley
moves in either positive or negative direction depending on the setting of p1113:
– p1113 = 0: positive direction
– p1113 = 1: negative direction
• With the end position shutdown activated (p3392 = 1), the following applies:
– If the motor runs in positive direction, it stops only when the stop sensor center (p3386)
or stop sensor positive direction (p3384) is triggered.
– If the motor runs in negative direction, it stops only when the stop sensor center (p3386)
or stop sensor negative direction (p3385) is triggered.
– A new ON command must be initiated to start the motor again. If the motor stops upon
triggering the stop sensor positive direction/negative direction, the new movement is
only possible in the opposite direction.
– Setting the sensor bypass signal (p3390) to 1 overrides the stop sensor center signal
p3386.
