Siemens SINAMICS G115D

Parameter Description Setting
r1073 CO: Main setpoint active Displays the active main setpoint.
p1075[0...n] CI: Supplementary setpoint Signal source for the supplementary setpoint.
Factory setting: 0
p1076[0...n] CI: Supplementary setpoint scaling Signal source for scaling the supplementary set‐
point. Factory setting: 0
r1077 CO: Supplementary setpoint e󹪜ec‐
tive
Displays the e󹪜ective supplementary setpoint.
r2050[0…11] CO: PROFIdrive PZD receive word Connector output to interconnect the PZD received
from the 󹪝eldbus controller in the word format.
[1] Most standard telegrams receive the speed set‐
point as receive word PZD02.
Further information
For further information refer to the function diagrams 2468, 9360 and 3030 of the List Manual.

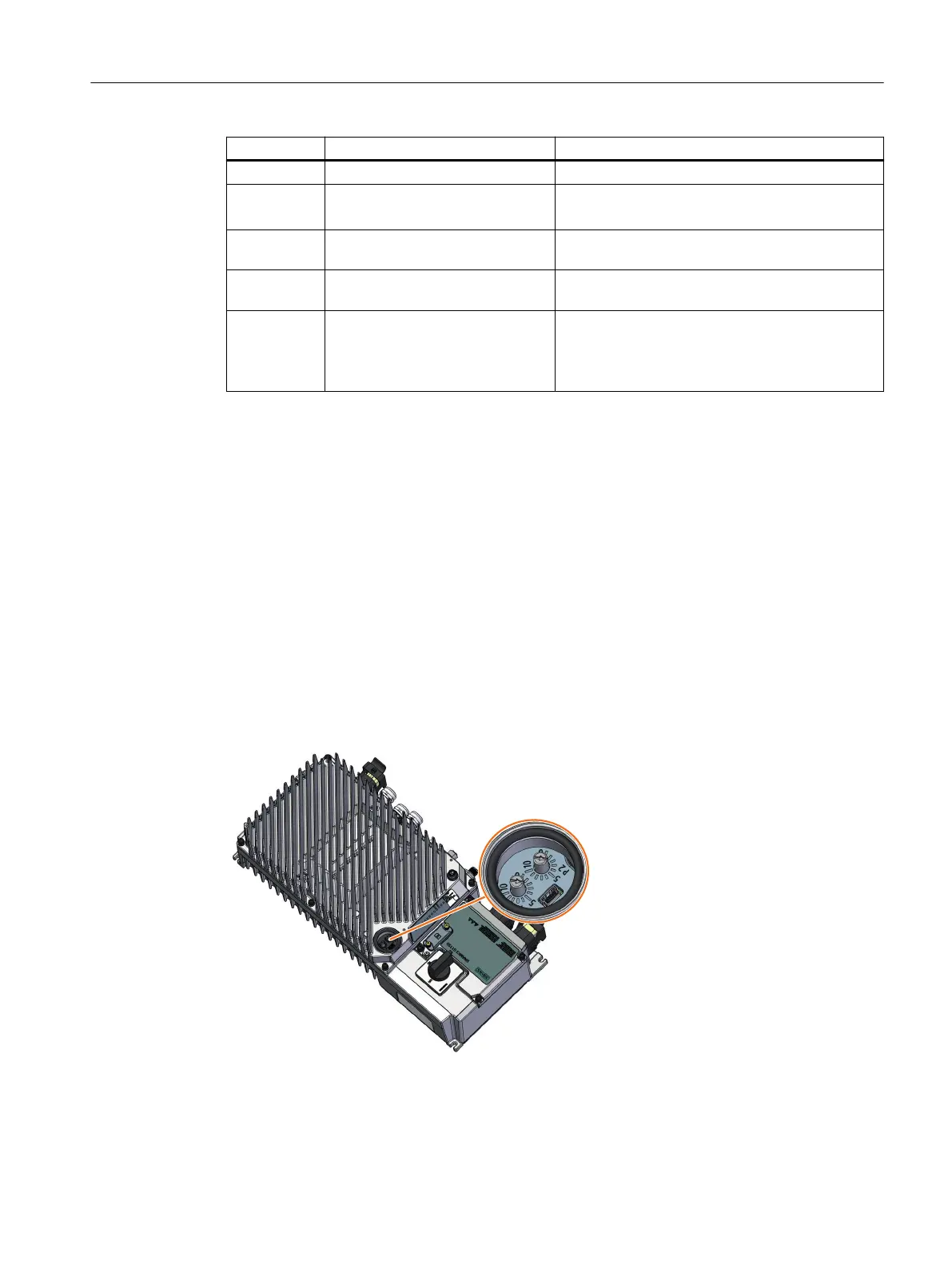

7.17.3 Electromechanical potentiometer
The converter has two electromechanical potentiometers.
The potentiometers are hardwired with the internal analog inputs 0 and 1.
For more information on using a tool to adjust the two electromechanical potentiometers,
refer to the replacing procedure in Section "Replacing the Electronic Module (Page394)".
Advanced commissioning
7.17Setpoints
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 257
