Mounting orientations

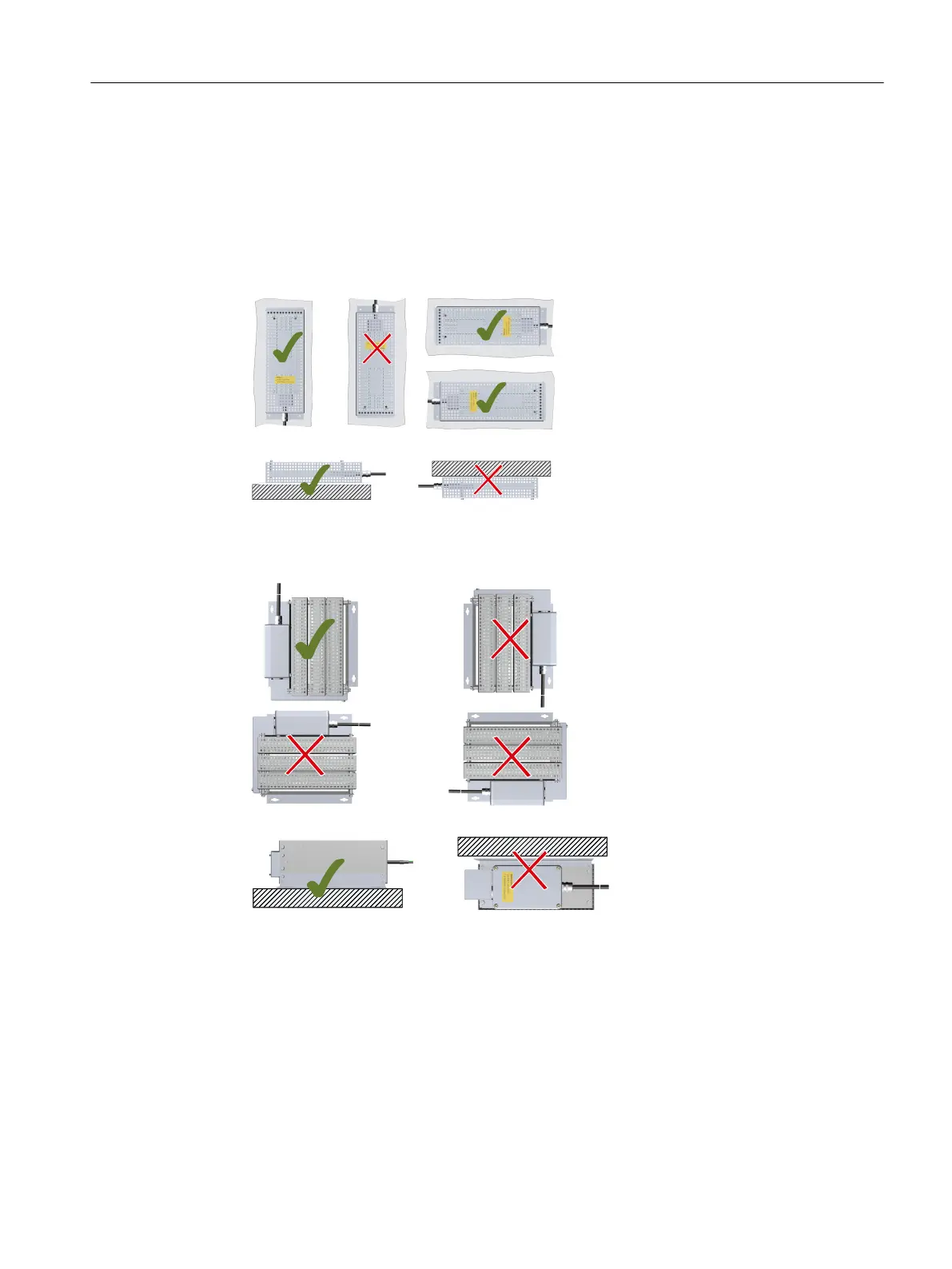

Mounting orientations: correct (✓); incorrect (✖)
• 6SL3501-1BE32-0AA0; 6SL3501-1BE32-4AA0;
6SL3501-1BE32-0BA0; 6SL3501-1BE32-4BA0
Mount the braking resistor on a at surface which has a minimum thickness of 2 mm and a
minimum size of the braking resistor outline dimensions.
'HVNWRSPRXQWLQJ
:DOOPRXQWLQJ
• 6SL3501-1BE34-8AA0; 6SL3501-1BE36-0BA0;
6SL3501-1BE36-0CA0; 6SL3501-1BE41-2CA0
'HVNWRSPRXQWLQJ
:DOOPRXQWLQJ
Mounting
4.2Mounting the optional components
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 43
