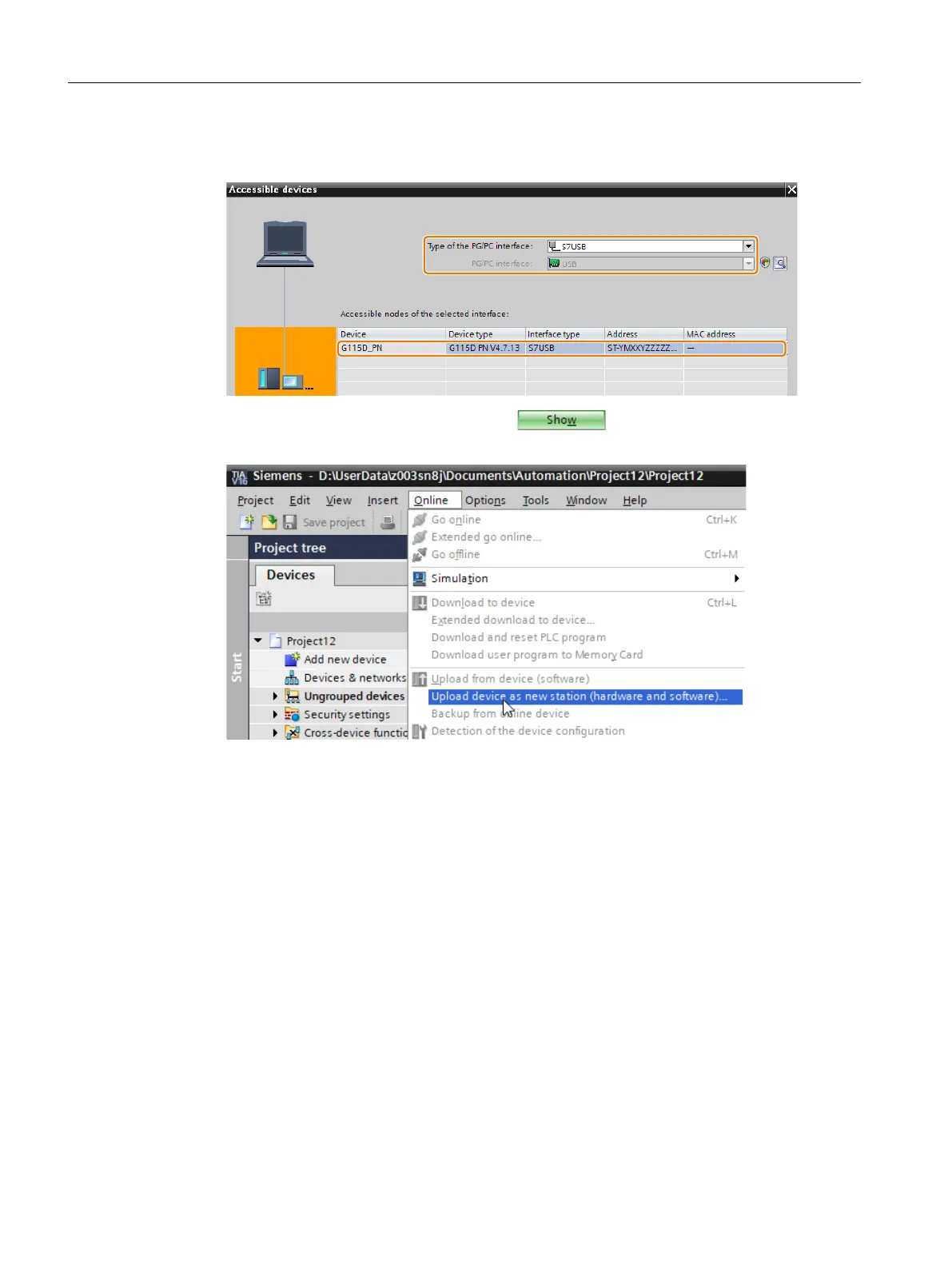

5. When the USB interface is appropriately set, then the screen form shows the devices that can
be accessed.
6. Select the desired device and click on the button.
7. Transfer the converter into the project using the following menu:
You have integrated a converter accessible via the USB interface into your project.
❒
Commissioning
6.4Quick commissioning
SINAMICS G115D Wall Mounted distributed drive
118 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
