Data for a standard asynchronous motor
Before starting commissioning, you must know the following data:
• Which motor is connected to the converter?
Note down the article number of the motor on the motor rating plate.
If available, note down the motor code on the motor rating plate.

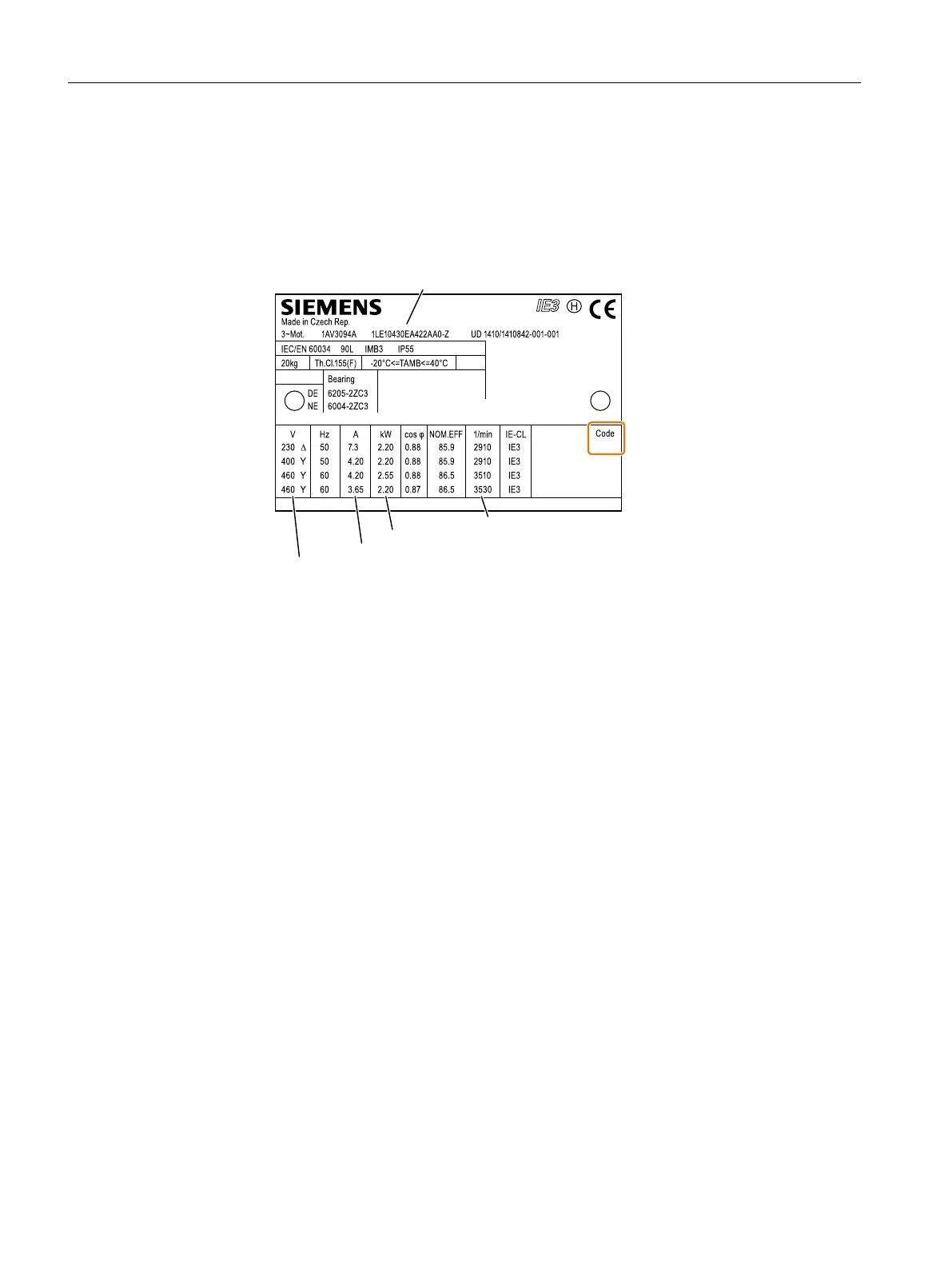

See below for an example of the rating plate for a standard asynchronous motor:
9ROWDJH
&XUUHQW
3RZHU
6SHHG
$UWLFOHQXPEHU
1(0$
1(0$
,(&
,(&
• In which region of the world is the motor to be used?
- Europe IEC: 50Hz [kW]
- North America NEMA: 60 Hz [hp] or 60 Hz [kW]
• How is the motor connected?
Pay attention to the connection of the motor (star connection [Y] or delta connection [Δ]).
Note the appropriate motor data for connecting.
