Siemens SINAMICS G115D

*'ZDOOPRXQWHGFRQYHUWHU
5HVHUYHG5HVHUYHG
7 8651 2 3 4
ON
OFF
7 8651 2 3 4
ON
OFF

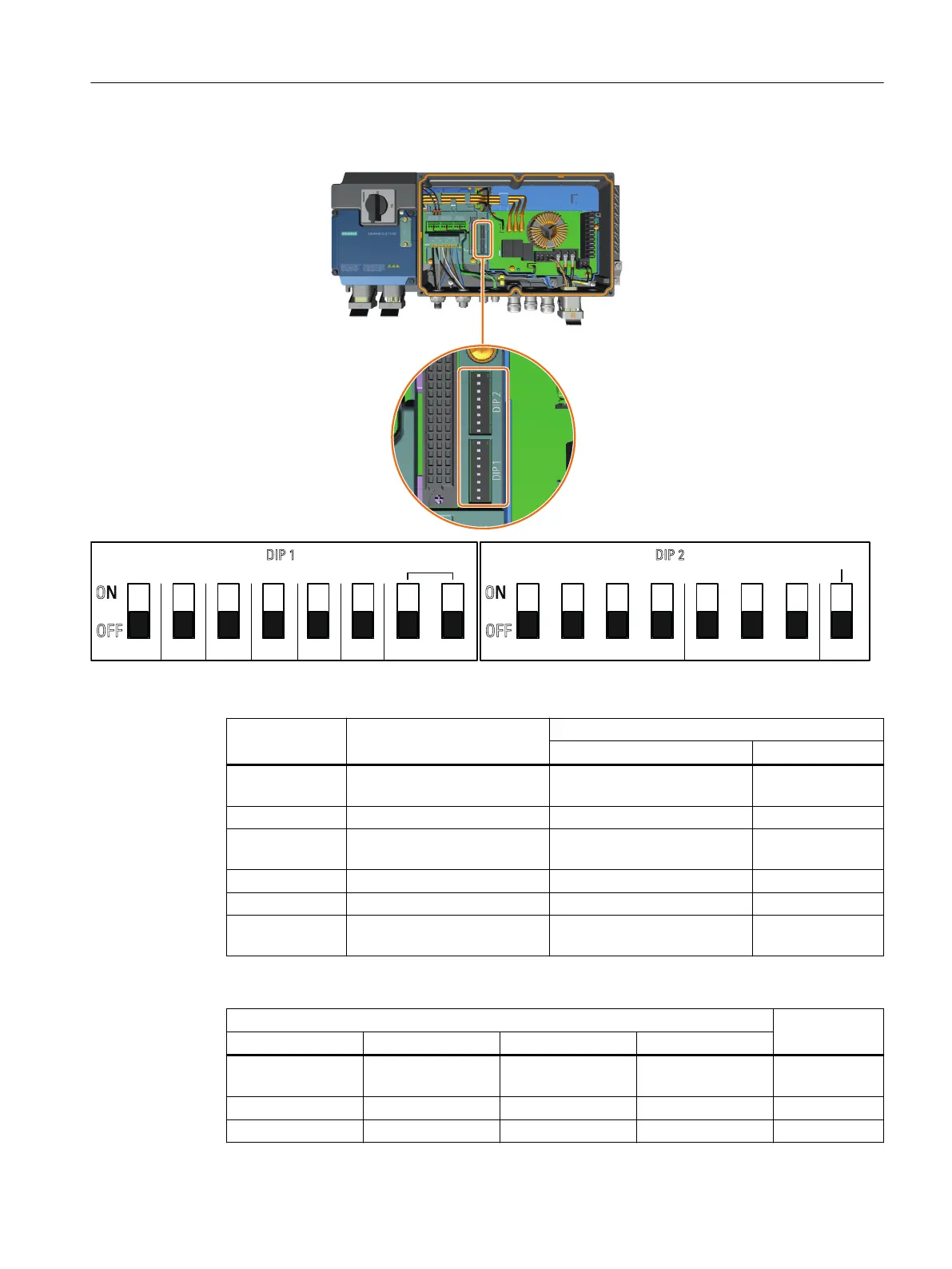

DIP 1 DIP 2
Commissioning DIP switches 1.1 ... 1.6
DIP switch Function Value
ON position OFF position
DIP 1.1 Motor temperature sensor
type
Pt1000 p0601
DIP 1.2 Motor direction reversal reversed p1820
DIP 1.3 EM brake con󹪝guration Brake according to sequence
control
p1215
DIP 1.4 Pulse frequency 16 kHz p1800
DIP 1.5 Motor type selection Reluctance motor p0300
DIP 1.6 87 Hz operation 87 Hz operation possible in a
delta connection
p0133
Commissioning DIP switches 2.1 ... 2.4: ramp-up and ramp-down times
DIP switch Value
DIP 2.1 DIP 2.2 DIP 2.3 DIP 2.4
OFF OFF OFF OFF p1120, p1121,
p1138, p1139
ON OFF OFF OFF 0.1 s
OFF ON OFF OFF 0.2 s
Commissioning
6.4Quick commissioning
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 115
