Function description

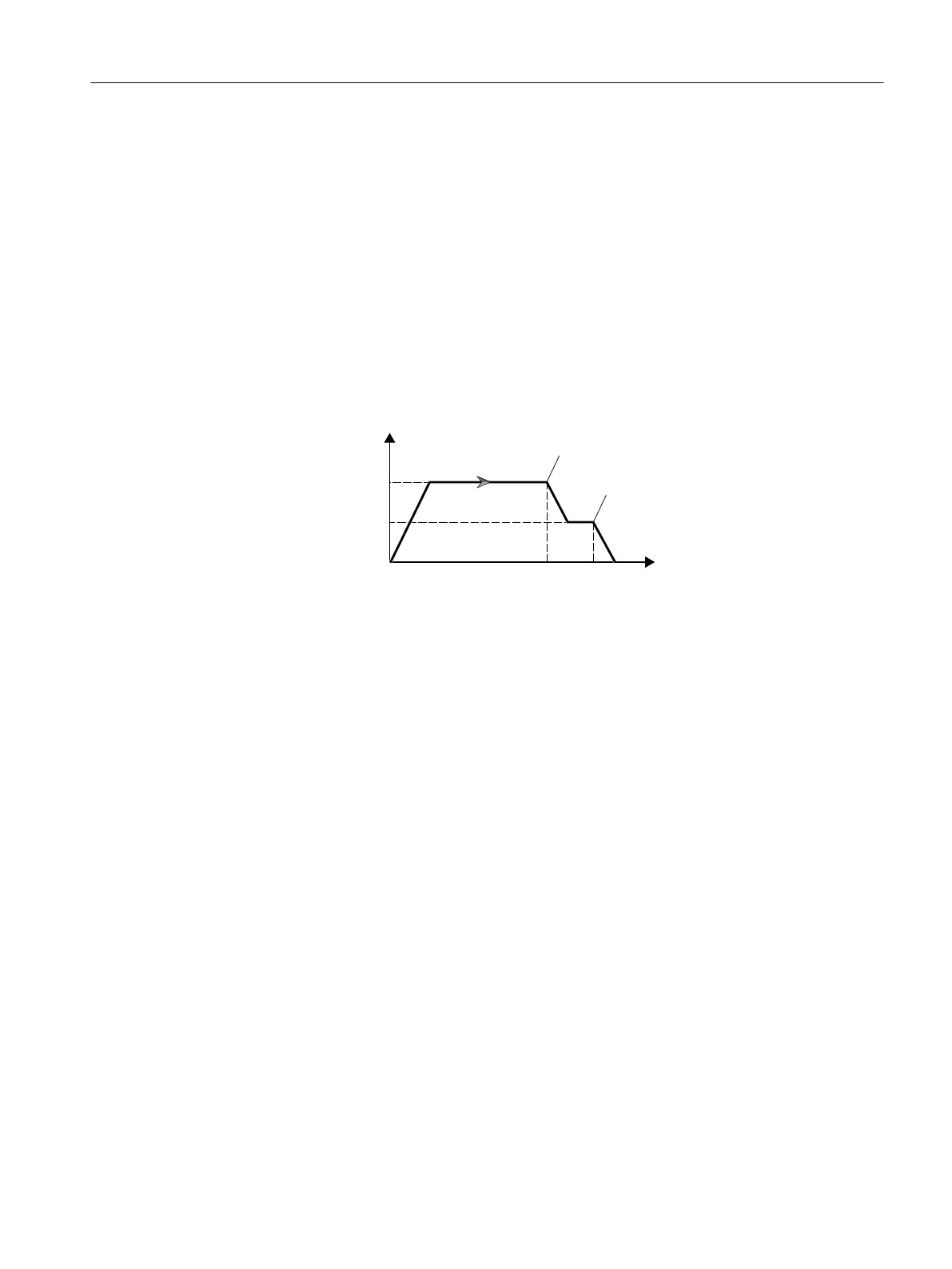

• With the ON command, the motor accelerates to the high speed setpoint (p3397). The
direction of the movement depends on the setpoint inversion (p1113):
– p1113 = 0: positive direction
– p1113 = 1: negative direction
• The motor decelerates with OFF1 ramp to the low speed setpoint (p3398) when the low
speed sensor positive direction (p3387) is triggered (level/edge triggered depending on
p3395).
• The motor stops with OFF1 ramp when the stop sensor positive direction (p3384) is triggered
(level/edge triggered depending on p3394).
• Setting the sensor bypass signal (p3390) to 1 overrides the sensor signals p3384 and p3387.

+LJKVSHHGVHWSRLQW
S
/RZVSHHGVHWSRLQW
S
/RZVSHHGVHQVRUSRVLWLYH
S
6WRSVHQVRUSRVLWLYH
S
Q
Advanced commissioning
7.9Conveyor technology control functions (for G115D PROFINET and AS-i variants only)
