Siemens SINAMICS G115D

p1020 p1021 p1022 p1023 Resulting setpoint
0 0 0 0 0
1 0 0 0 p1001
0 1 0 0 p1002
1 1 0 0 p1001 + p1002
0 0 1 0 p1003
1 0 1 0 p1001 + p1003
0 1 1 0 p1002 + p1003
1 1 1 0 p1001 + p1002 + p1003
0 0 0 1 p1004
1 0 0 1 p1001 + p1004
0 1 0 1 p1002 + p1004
1 1 0 1 p1001 + p1002 + p1004
0 0 1 1 p1003 + p1004
1 0 1 1 p1001 + p1003 + p1004
0 1 1 1 p1002 + p1003 + p1004
1 1 1 1 p1001 + p1002 + p1003 + p1004

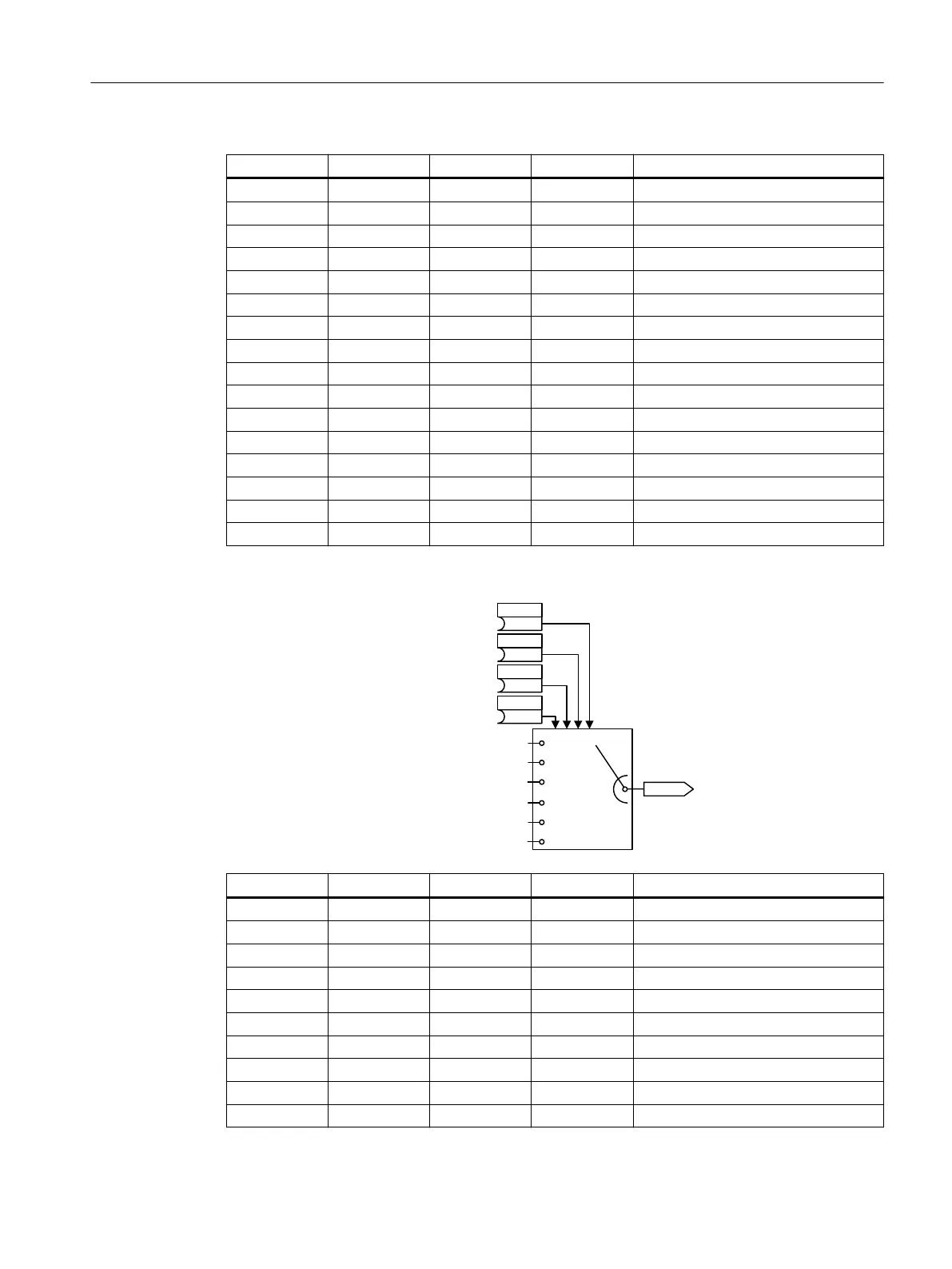

Selecting the 󹪝xed speed setpoint, binary







)L[HGVSHHGVHWSRLQWVHOHFWLRQELW
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW
)L[HGVSHHGVHWSRLQWVHOHFWLRQELW

)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQWHIIHFWLYH
)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQW
)L[HGVSHHGVHWSRLQW
U
S
S
S
S
S
S
S
S
S
p1020 p1021 p1022 p1023 Resulting setpoint
0 0 0 0 0
1 0 0 0 p1001
0 1 0 0 p1002
1 1 0 0 p1003
0 0 1 0 p1004
1 0 1 0 p1005
0 1 1 0 p1006
1 1 1 0 p1007
0 0 0 1 p1008
1 0 0 1 p1009
Advanced commissioning
7.17Setpoints
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 263
