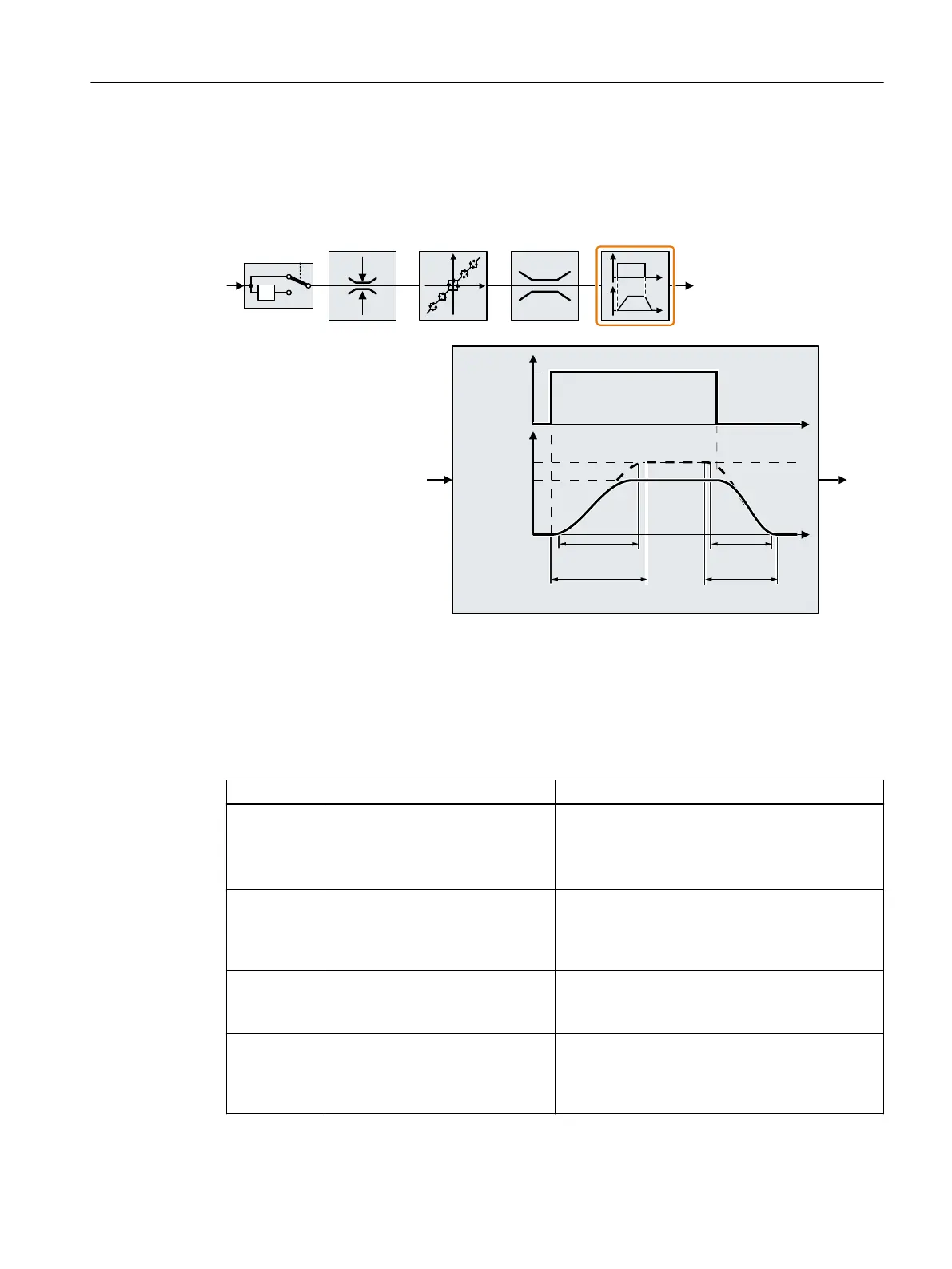

Extended ramp-function generator
The ramp-up and ramp-down times of the extended ramp-function generator can be set
independently of each other. The optimal times depend on the application and can lie in the
range from a few 100ms to several minutes.
5DPSXSWLPH5DPS
GRZQWLPH
(IIHFWLYHUDPSXS
WLPH
(IIHFWLYHUDPSGRZQ
WLPH
0D[LPXP
VSHHG
\
W
[
[\
W



[
\
[
\
W
\\[[
[

[

Initial and 󹪝nal rounding permit smooth, jerk-free acceleration and braking.
The ramp-up and ramp-down times of the motor are increased by the rounding times:
• E󹪜ective ramp-up time = p1120 + 0.5 × (p1130 + p1131).
• E󹪜ective ramp-down time = p1121 + 0.5 × (p1130 + p1131).
Parameters for setting the extended ramp-function generator
Parameter Description Setting
p1115 Ramp-function generator selection Sets the ramp-function generator type.
0: Basic ramp-function generator
1: Extended ramp-function generator (factory set‐
ting)
p1120[0...n] Ramp-function generator, ramp-
up time [s]
The ramp-function generator ramps-up the speed
setpoint from standstill (setpoint = 0) up to the
maximum speed (p1082) in this time.
Factory setting: 1
p1121[0...n] Ramp-function generator, ramp-
down time [s]
Sets the ramp-down time for the ramp-function
generator.
Factory setting: 1
p1130[0...n] Ramp-function generator, initial
rounding-o󹪜 time [s]
Sets the initial rounding-o󹪜 time for the extended
ramp generator. The value applies to ramp-up and
ramp-down.
Factory setting: 0
Advanced commissioning
7.18Setpoint processing
