Siemens SINAMICS G115D

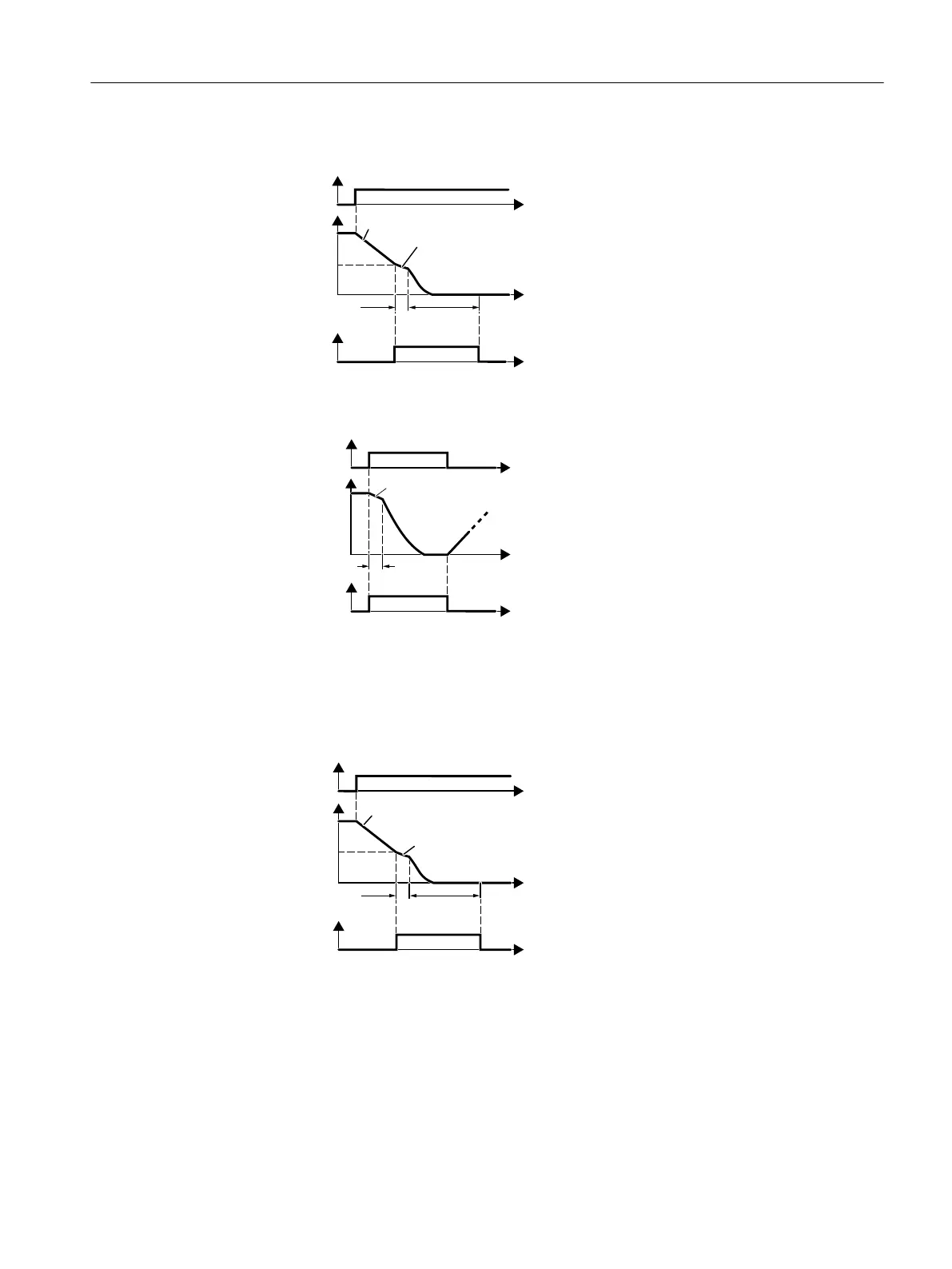

DC braking when a fault occurs
'&EUDNLQJ
DFWLYH
2))
2))
6WDUWVSHHG
)DXOWDFWLYH
7LPHLQWHUYDO
Q
S
W
W
W
Requirement:
Fault number and fault response are assigned
via p2100 and p2101.
Function:
1. A fault occurs, which initiates DC braking as
response.
2. The motor brakes along the down ramp to
the speed for the start of DC braking.
3. DC braking starts.
DC braking initiated by a control command
'&EUDNLQJ
VHOHFWHG
'&EUDNLQJ
DFWLYH
2))
Q
S
W
W
W
Requirement:
p1231 = 4 and p1230 = control command, e.g.
p1230 = 722.3 (control command via DI3)
Function:
1. The higher-level control issues the com‐
mand for DC braking, e.g. using DI3: p1230
= 722.3.
2. DC braking starts.
If the higher-level control withdraws the com‐
mand during DC braking, the converter inter‐
rupts DC braking and the motor accelerates to
its setpoint.
DC braking when the motor is switched o󹪜
'&EUDNLQJ
DFWLYH
'&EUDNLQJIRU
2))2))
2))
2))
6WDUWVSHHG
7LPHLQWHUYDO
Q
S
W
W
W
Requirement:
p1231 = 5 or p1230 = 1 and p1231 = 14
Function:
1. The higher-level control switches o󹪜 the
motor (OFF1 or OFF3).
2. The motor brakes along the down ramp to
the speed for the start of DC braking.
3. DC braking starts.
Advanced commissioning
7.21Electrically braking the motor
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 311
