Rating plate

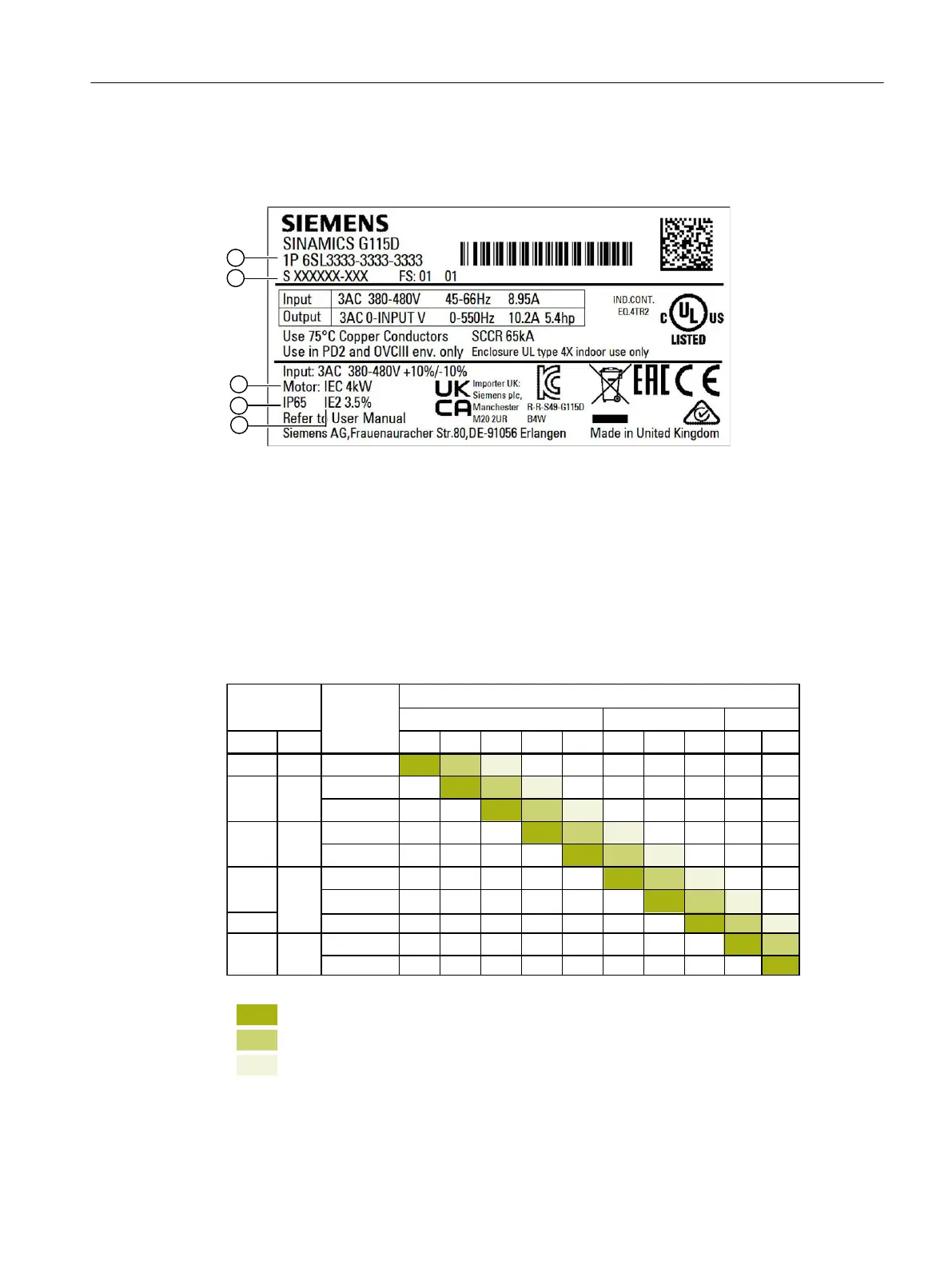

The 󹪝gure below shows an example of the rating plate attached to the side of the converter:





① Article number ④ Degree of protection
② Product serial number ⑤ Energy e󹪟ciency class, and relative power loss in %
③ Motor data  
Compatible motors
Siemens motors that can be operated
The SINAMICS G115D wall-mounted converters are compatible with SIMOGEAR 2KJ8 motors
from frame size 71 to frame size 132.
:TUBSDPOOFDUJPO
.PUPSDPOOFDUJPOUZQF.PUPSTQFFESBOHF
ǡEFMUBDPOOFDUJPO
.PUPS
GSBNFTJ[F
.PUPSSBUFE
QPXFSL8
$POWFSUFSSBUFEQPXFSL8
*&*&*&
SQNSQN,+"
SQNSQN,+"
SQNSQN,+"
:
ǡǡ
:
ǡǡ
:
ǡǡ
:
ǡǡ
:
ǡǡ
:
ǡǡ
ǡ
ǡǡ
ǡ
:
ǡ
:
:
:

'4"'4#'4$


























You can also connect SIMOGEAR 2KJ3 geared motors or other Siemens standard
asynchronous motors, reluctance motors, or permanent magnet synchronous motor with
moderate saturation to the wall-mounted converters.
Overview of the SINAMICS G115D drive
