Restrictions:

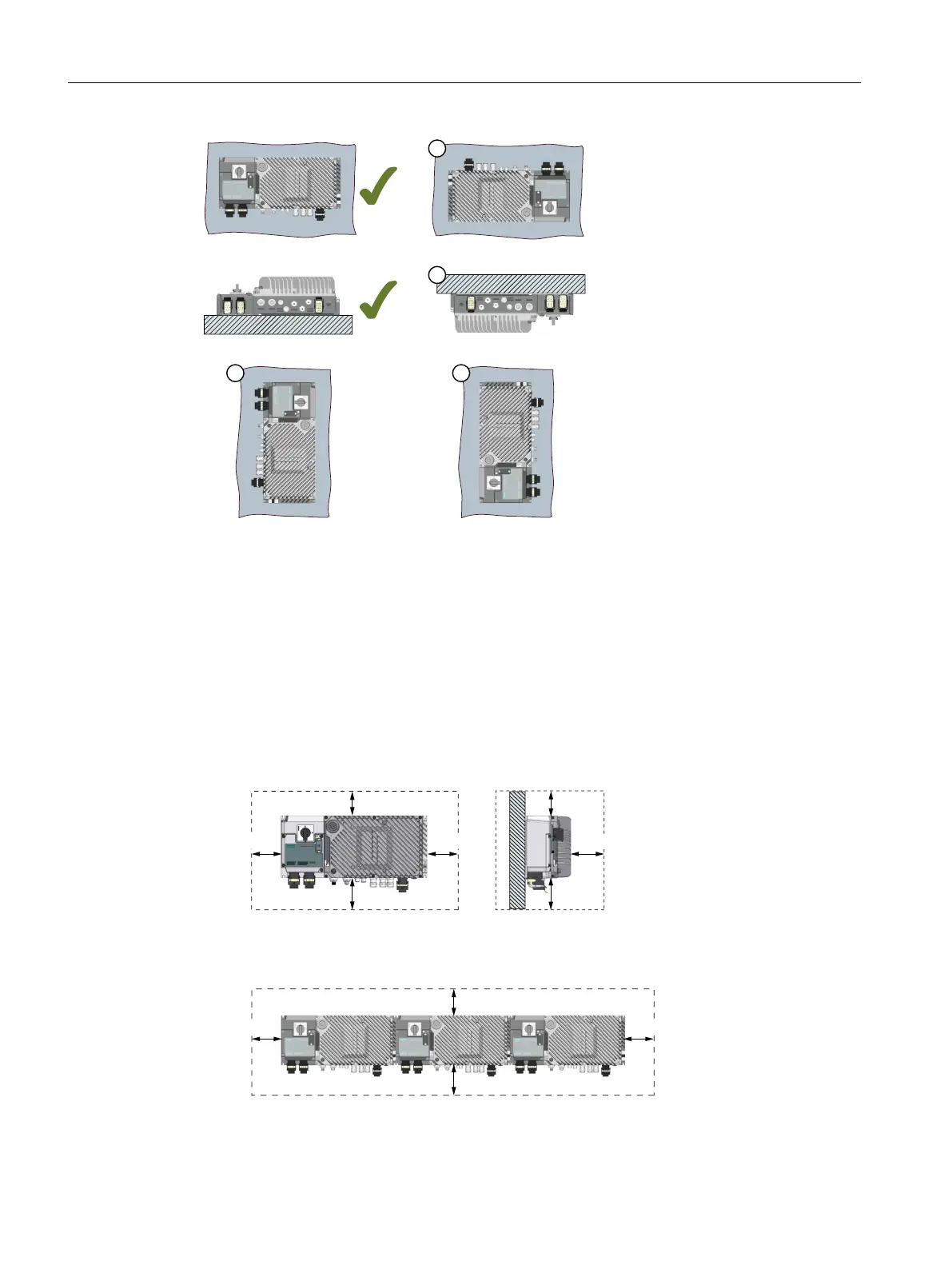

For wall-mounted converter FSA and FSB (≤3 kW), the permissible output current is reduced for mounting
orientations ① to ④.
① Derating the output current to 80% of the rated converter current is necessary.
②③④ Derating the output current to 70% of the rated converter current is necessary.
Mounting clearance
To guarantee full performance under all conditions, the minimum clearance distances are as
follows:
• Wiring side of the converter: 200mm (7.9in)
Non-wiring side of the converter: 150mm (5.9in)
PP
PPPPPP
PP
PP
PP
• Side-by-side: no clearance distance is required between the converters.
PPPP
PP
PP
Mounting
4.1Mounting the G115D Wall Mounted drive
SINAMICS G115D Wall Mounted distributed drive
