Note
The shrink-󹪝tted disc connection fastens the hollow shaft axially on the machine shaft.
Note
Apply a thin layer of grease to the shrink disk seat on the hollow shaft.
Note
Coat with a suitable lubricant to prevent frictional corrosion of the contact surface on the
customer's machine shaft in the vicinity of the bushing.

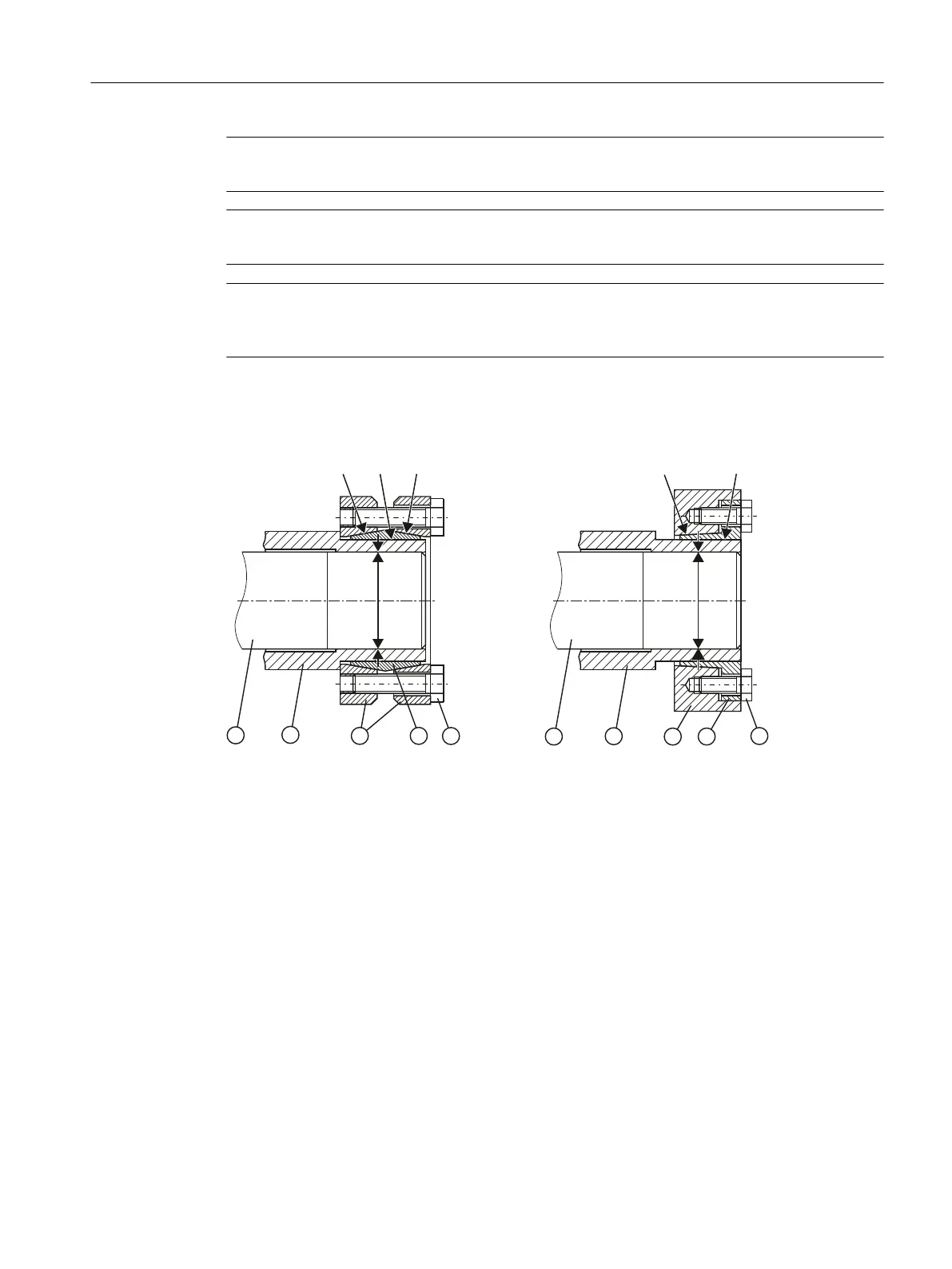

Sizes 19-69 Sizes 79-109





D
D
E





E
DDD
a Greased
b Absolutely grease-free
① Machine shaft
② Hollow shaft
③ Shrink disk comprising items④-⑥
④ Outer ring
⑤ Inner ring
⑥ Clamping bolt
Figure12-23 Mounting the shrink disk
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
