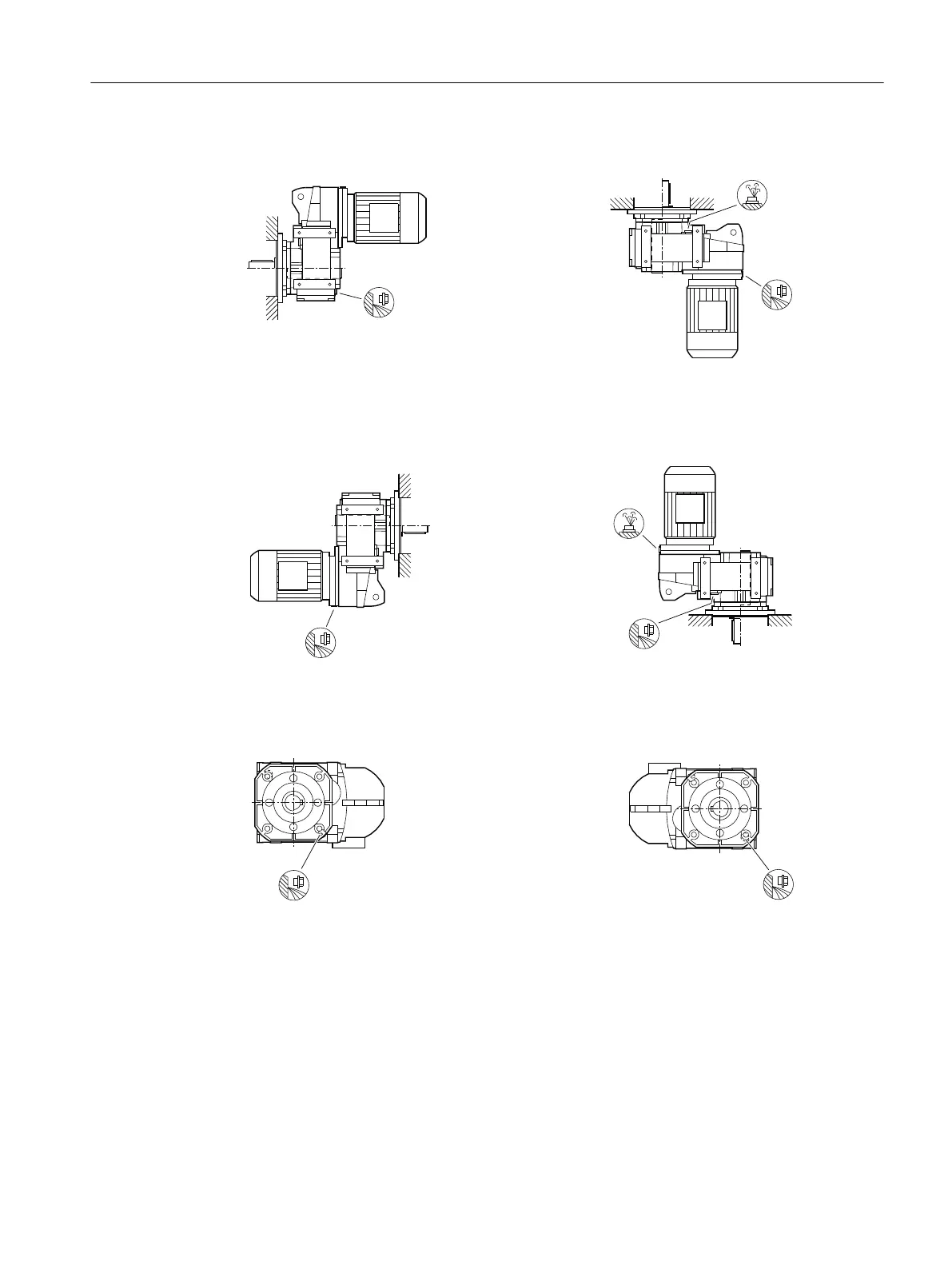

Figure12-47 Mounting positions for parallel shaft gearbox F.F 󹪞ange-mounted design and F.Z with
housing 󹪞ange, size29
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
