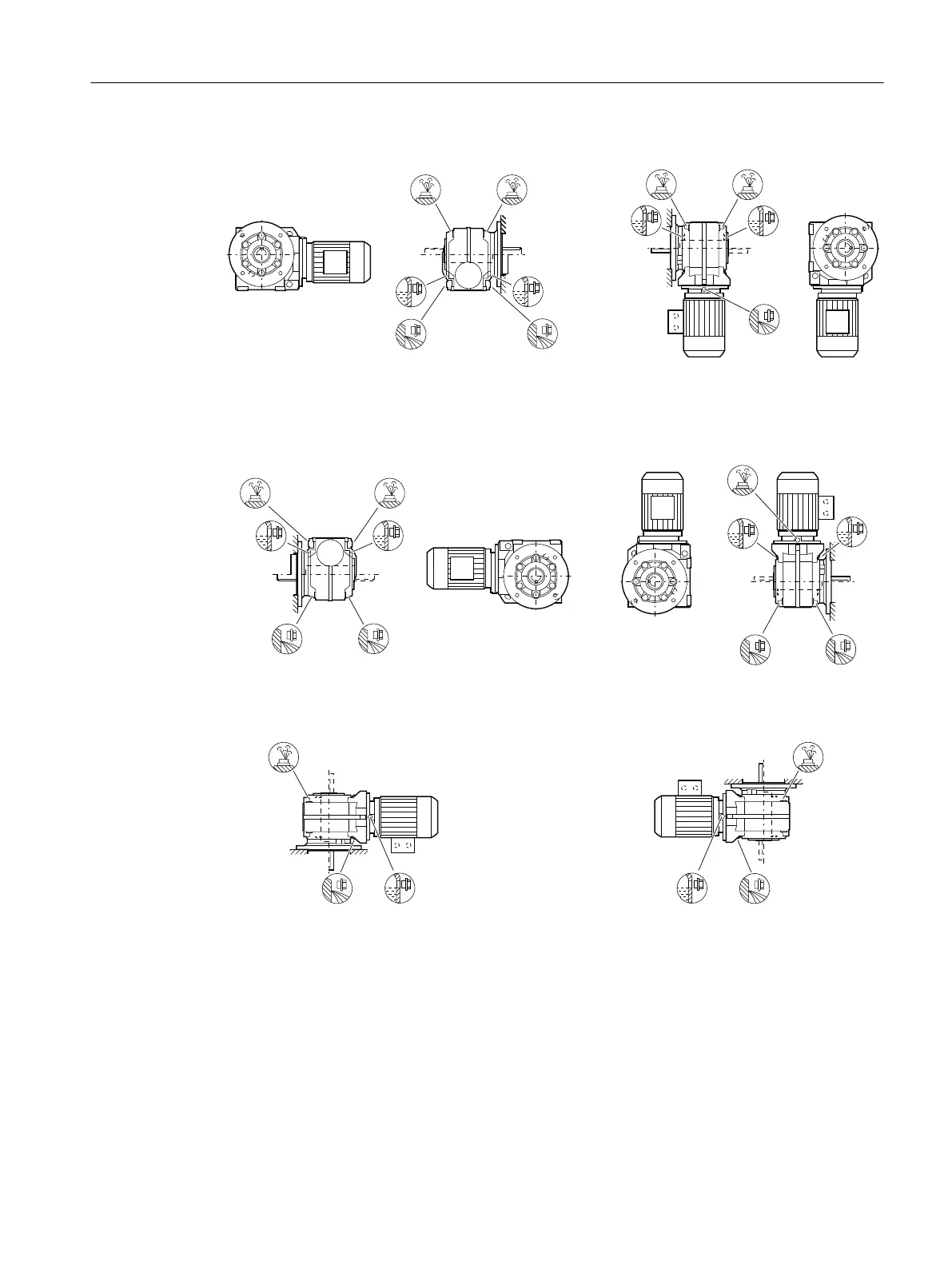

Figure12-65 Mounting positions for helical worm gearbox CF 󹪞ange-mounted design and CAZ
housing 󹪞ange, sizes39 - 89
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
