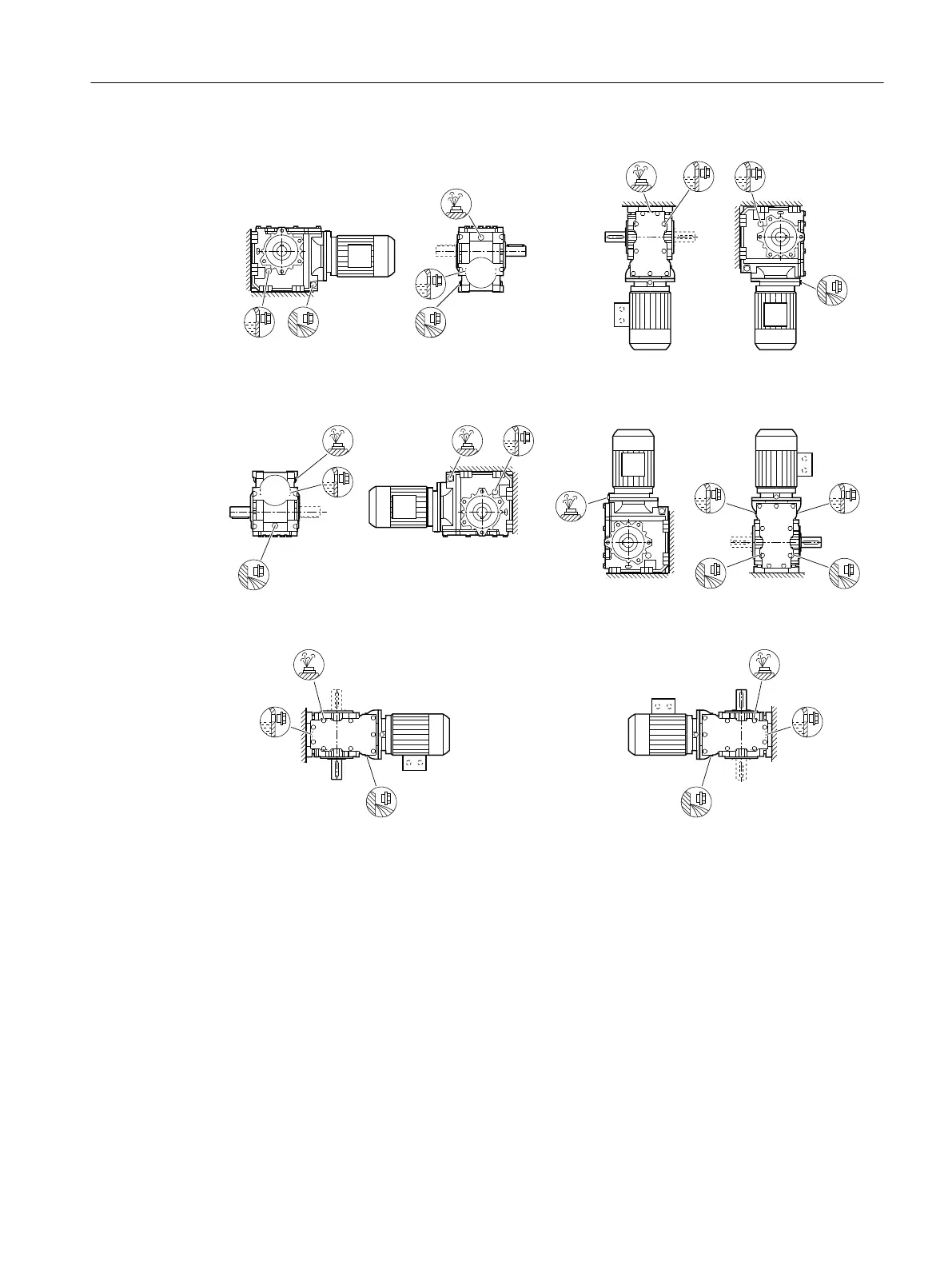

Figure12-67 Mounting positions for helical worm gearbox C. foot-mounted design, size39A
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
