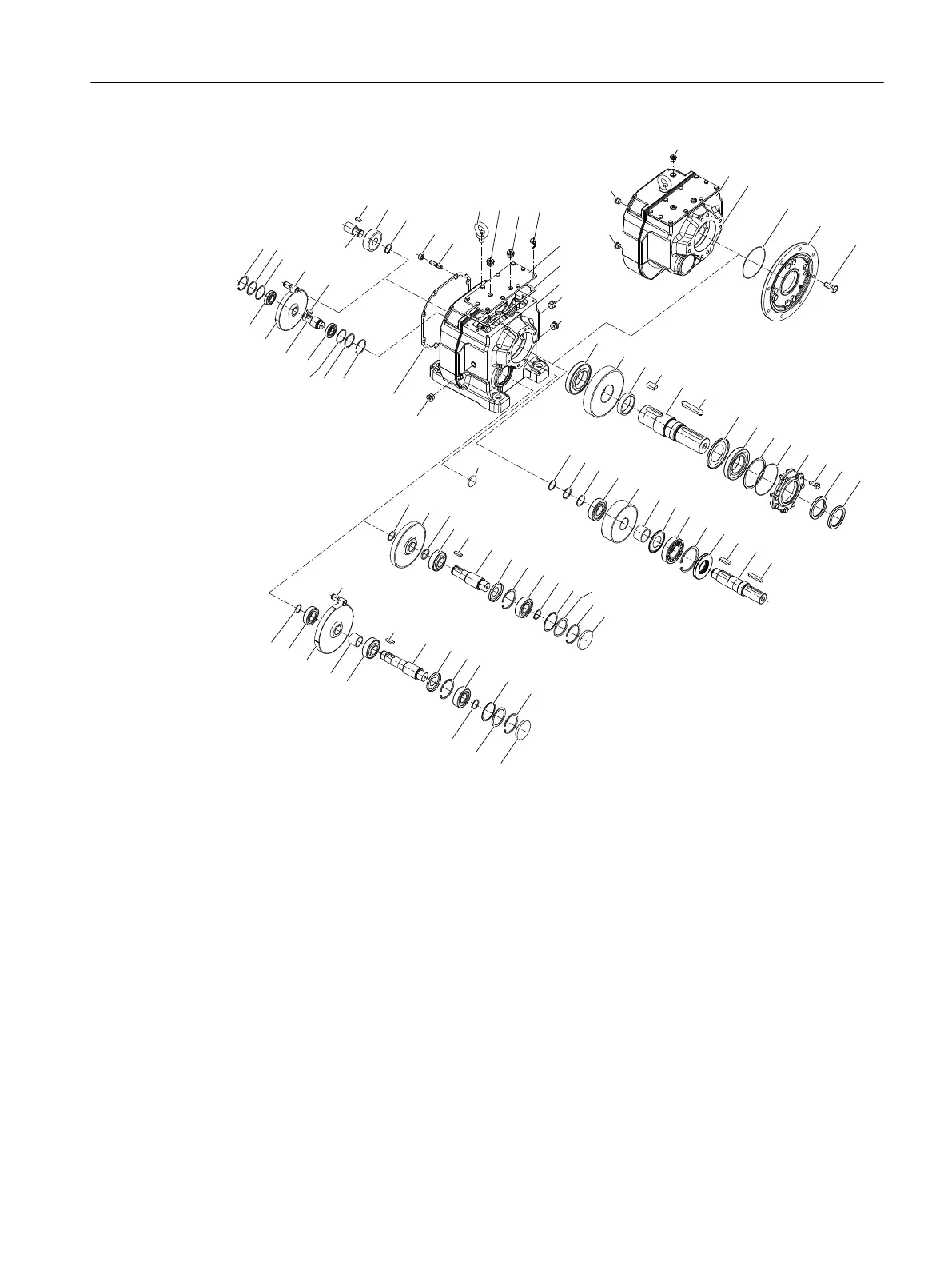

1001 Gearbox housing 1309 Seal
1020 Bearing 1315 Bearing
1025 Locking ring 1316 Locking ring
1028 Bearing 1317 Supporting disk
1030 Bearing 1318 Supporting disk
1031 Supporting disk 1320 Bearing
1032 Shim 1321 Locking ring
1034 NILOS ring 1322 Supporting disk
1035 Locking ring 1325 Pinion shaft
1037 Locking ring 1330 Helical gear
1038 Locking ring 1331 Parallel key
1040 Output ange 1332 Bush/locking ring
1045 Bolt 1340 Pinion shaft
1050 Housing cover 1344 Spacer/bush
1051 Bolt 1345 Helical gear
Additional information on the SIMOGEAR geared motor
12.3Specic data gearbox
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 567
