Siemens SINAMICS G115D























'''























'"4



















'"











';













'%







'%






        




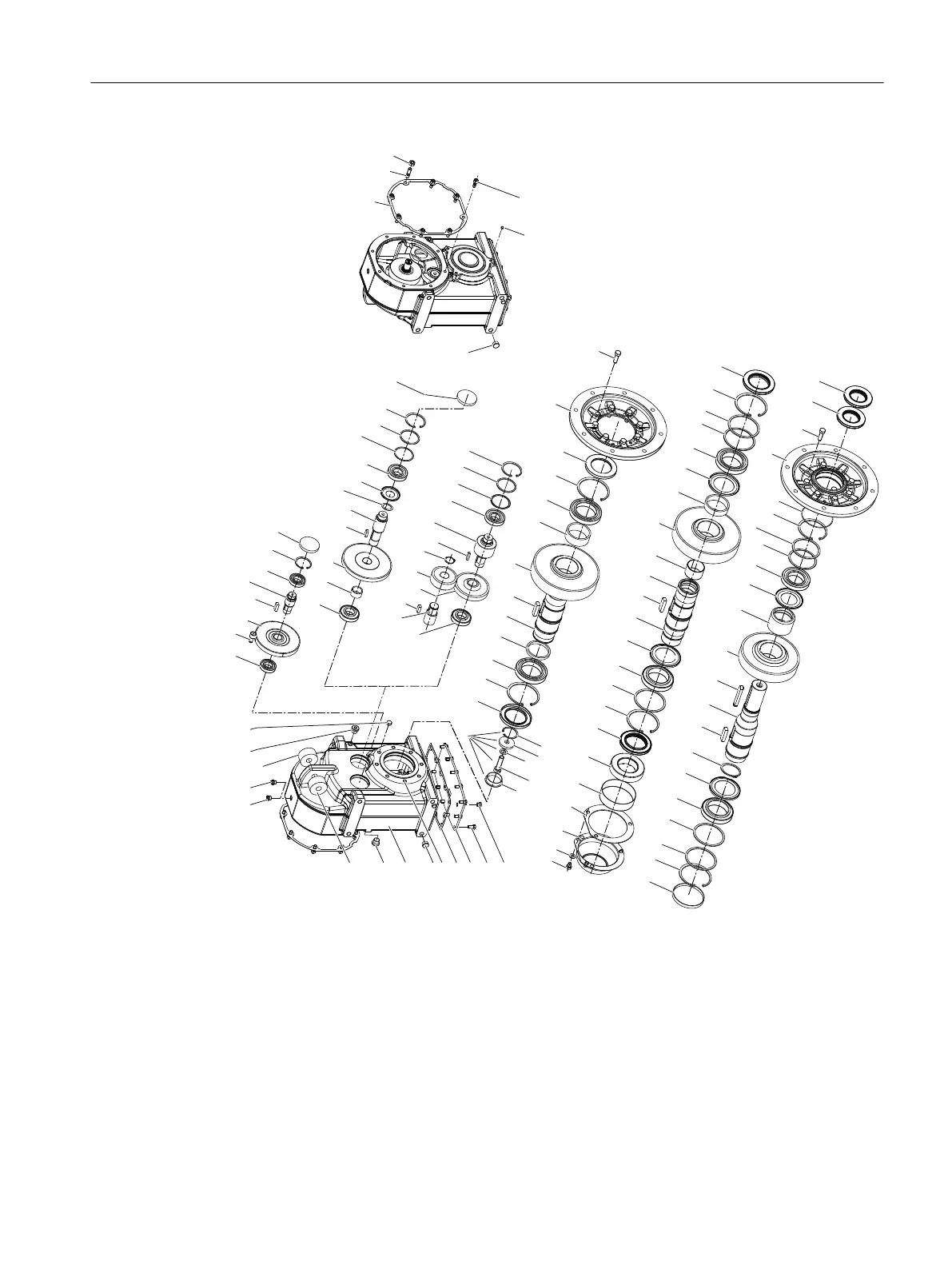

1001 Gearbox housing 1143 NILOS ring
1020 Bearing 1144 Supporting disk/shim
1030 Bearing 1146 Locking ring
1031 Supporting disk 1160 Shaft sealing ring
1032 Shim 1161 Shaft sealing ring
1034 NILOS ring 1162 O ring
1035 Locking ring 1165 Seal
1036 Shim 1210 Bolt
1040 Output 󹪞ange 1211 Screw lock
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 569
