Siemens SINAMICS G115D

Digital input and output terminals
Frame size Terminal
type
Cable lug Cross-section for stranded conductor Crimping
length
FSA/FSB/FSC Spring-type Pin type 5× 0.25mm
2
to0.34mm
2
(AWG24toAWG22)
8mm
See also
Connecting to the line supply using daisy chain (Page71)
Connecting to the 24 V power supply using daisy chain (Page79)

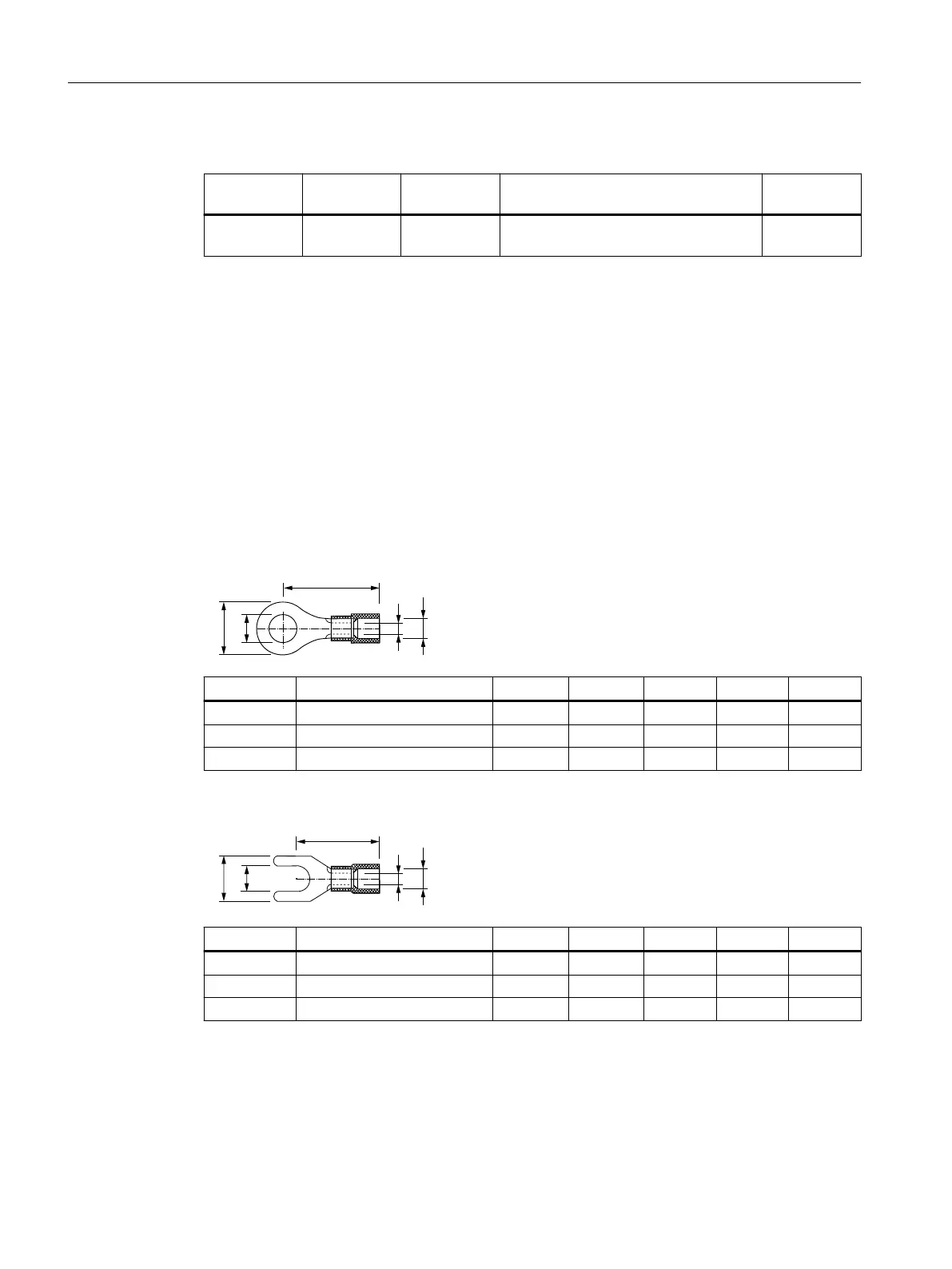

Cable lugs
Use cable lugs with insulated end sleeves for cable connections. The maximum dimensions of
the cable lugs are listed in the table below. These cable lugs are not to exceed these dimensions;
otherwise, the mechanical fastening and adherence to the voltage distances are not
guaranteed.
Ring type cable lug
G

G

G

G

O
Screw/bolt Cable cross-section (mm
2
) d
1
(mm) d
2
(mm) d
3
(mm) d
4
(mm) l (mm)
M4 0.5to1.5 1.7 4.1 4.3 8 17.0
M4 1.5to2.5 2.3 4.5 4.3 8.5 17.8
M4 4to6 3.4 6.5 4.3 9.5 20.8
Fork type cable lug
G

G

G

G

O
Screw/bolt Cable cross-section (mm
2
) d
1
(mm) d
2
(mm) d
3
(mm) d
4
(mm) l (mm)
M3.5 1.5to2.5 2.3 4.5 3.7 5.8 16.3
M3.5 4to6 3.4 6.5 3.7 7.2 20
M4 4to6 3.4 6.5 4.3 8.5 20
Wiring
5.8Cables and connectors
SINAMICS G115D Wall Mounted distributed drive
68 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
