Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-17

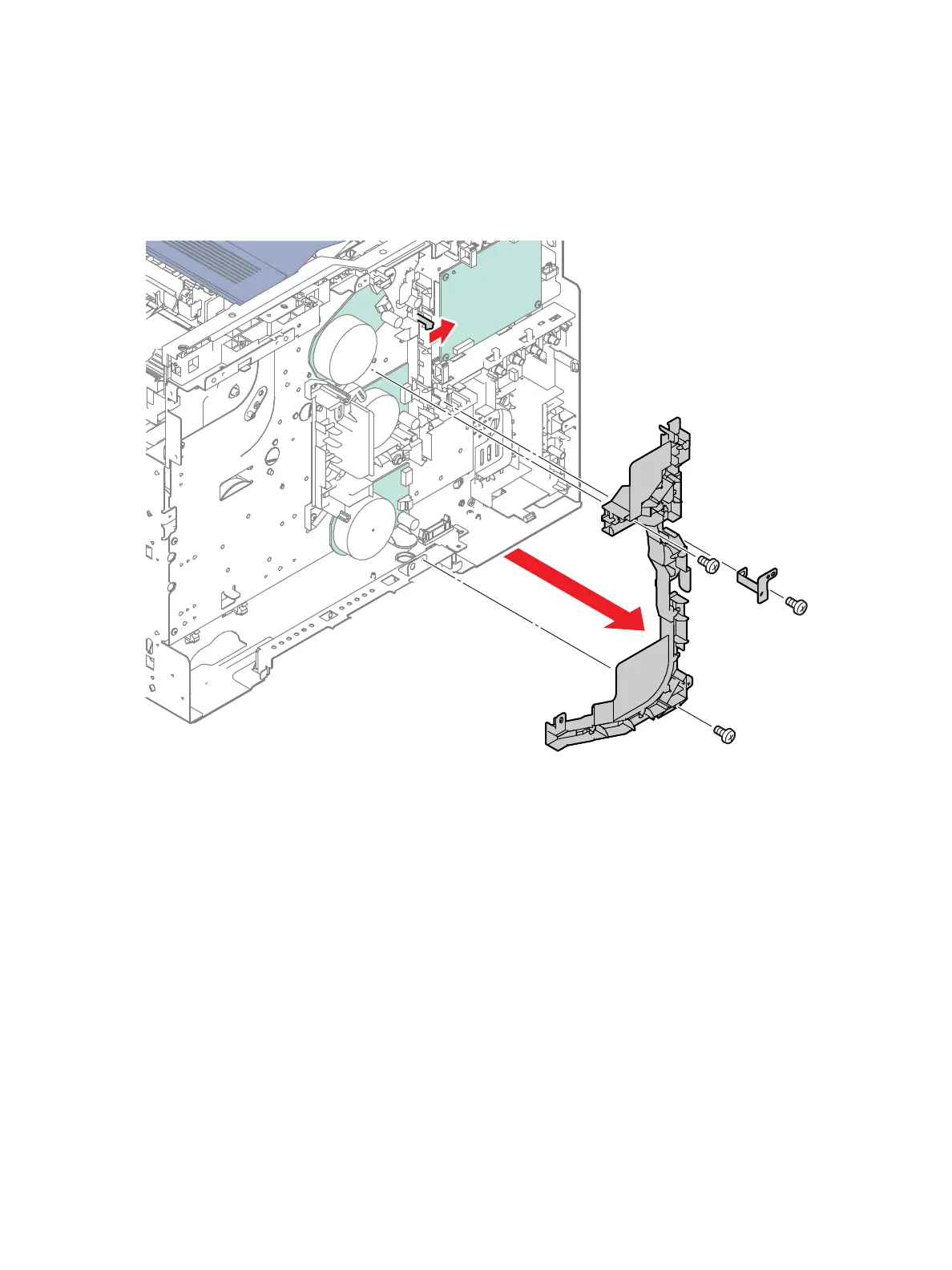

5. Remove the screw (silver, 6mm) that attaches the HV Ground Plate (PL18.1.15) to the printer and
remove the plate.
6. Release the harness from the Left Harness Guide (PL18.1.11).
7. Remove the two screws (silver, 6mm) that attach the Left Harness Guide to the printer.
8. Release the pawl holding the Left Harness Guide and remove the guide.
To Next Page
