Xerox WorkCentre 6605 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-18
9. Release the harness from the Video Harness Guide (PL18.1.10).
10. Disconnect plugs P/J171, P/J311, P/J172, P/J312, P/J331, P/J213 from the three drive motors and
the interim connector from the jack inside the the Drive Assembly (PL3.1.1).
11. Release the harnesses from the clamps at the bottom of the Drive Assembly.

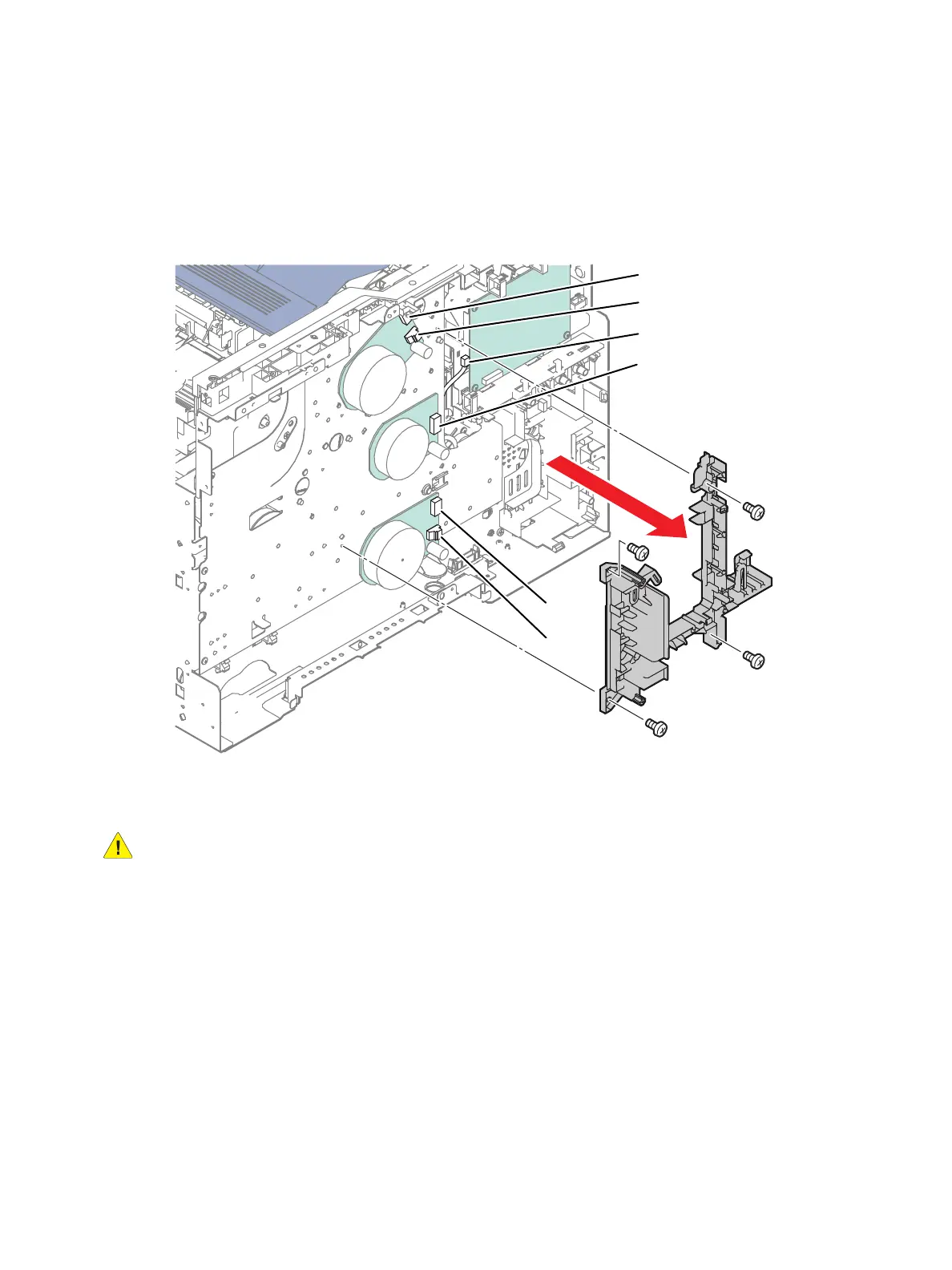

12. Remove the four screws (silver, 6mm) that attach the Video Harness Guide to the printer and
remove the guide.
13. Remove the screw (silver, 6mm) that attaches the Left Sub-Top Cover (PL 19.1.10) and remove it.
14. Remove the Transfer 2 Link (PL19.1.4) from the Transfer Coupling Link.
CAUTION: When performing the following step to remove the Drive Assembly, use caution not to
drop the gears.
15. Remove the ten screws (silver, 6mm) that attach the Drive Assembly to the printer and remove the
assembly.
Note: When placing the Drive Assembly on the workbench, face the gear side upward to prevent
the gears from falling off.
s6600-104
P/J171
P/J311
Interim Connector
P/J331
P/J172
P/J312

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
